Komutatorius TP-LINK LS1005G

Trumpai apie prekę

Prekė: Komutatorius TP-LINK LS1005G. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 208050371

(EAN: 1210002616157) SWITCH TP-LINK LS1005G

SYMBOL: 23917

Unit of measurement: pcs.

------------------------------------------------------------------------------

------------------------------------------------------------------------------

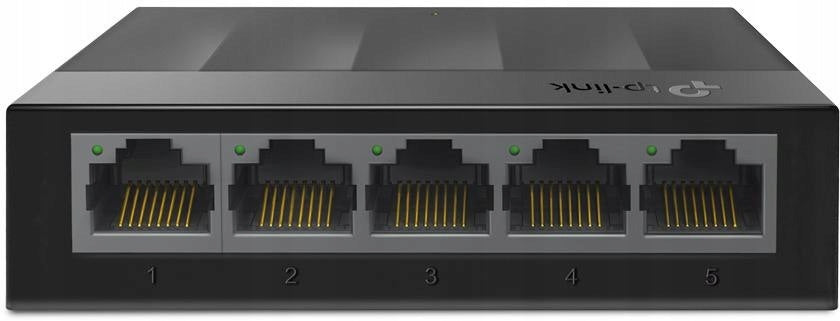

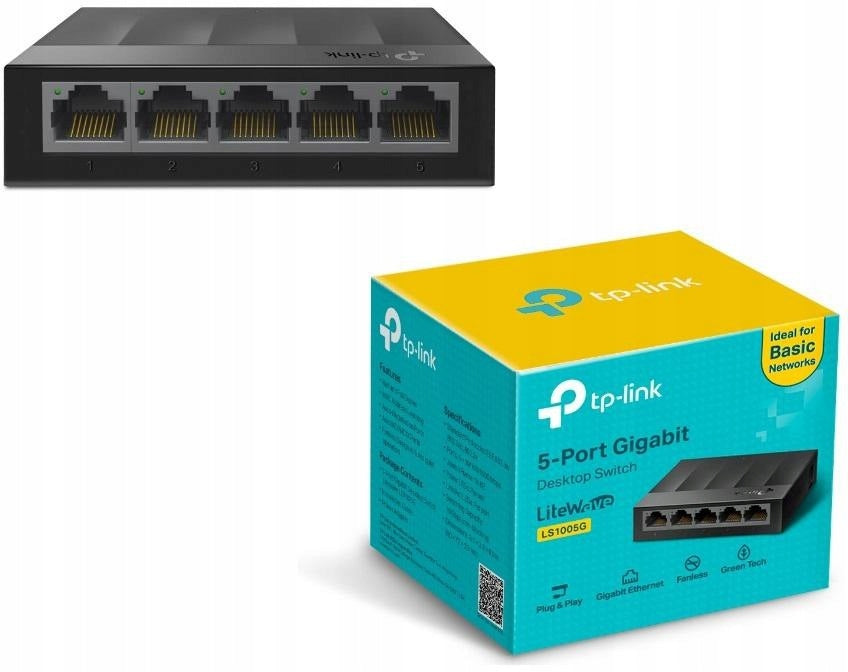

SWITCH TP-LINK LS1005G

Model: LS1005G

The most important features

• 5 RJ45 10/100/1000Mbps ports (automatic connection speed negotiation, Auto MDI/MDIX automatic patching)
• Green Ethernet Energy Saving Technology
• IEEE 802.3x data flow control for reliable transmission
• Plastic housing and desktop or wall mounting
• Plug and play - quick installation without configuration
• Fanless design for quiet operation

Technical specification

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x

Ports

5 ports 10/100/1000Mbps, Auto-negotiation, Auto-MDI/MDIX

Fanless

Yes

Power supply

External power supply (output: 5VDC / 0,6A)

Dimensions (S x G x W)

90 × 72 × 23 mm (3,5 × 2,8 × 0,9 inches)

Max. energy consumption

3,7W

Amount of heat generated

12,617 BTU/h

EFFICIENCY

Switching efficiency

10 Gbps

Packet redirection speed

7,4 Mp/s

MAC Address Table

2K

Package buffer

1,5 Mb

Jumbo frames

16 KB

SOFTWARE FUNCTIONS

Advanced Features

Green Technology

Flow control 802.3X

Back pressure

Method of transmission

Store and Forward

OTHER

Certificates

CE, FCC, RoHS

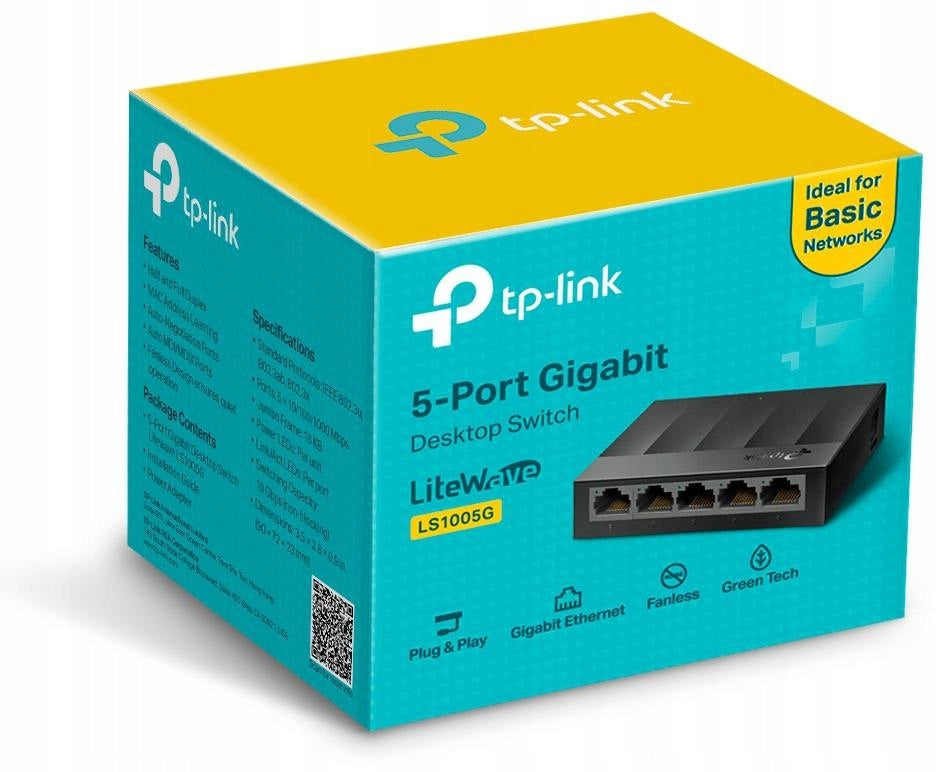

Contents of the pack

LS1005G Unmanaged Switch

Power supply

Installation instructions

Working environment

Permissible operating temperature: 0℃~40℃ (32℉~104℉)

Permissible storage temperature: -40℃~70℃ (-40℉~158℉)

Permissible air humidity: 10%~90%, non-condensing

Permissible storage humidity 5%~90%, non-condensing

------------------------------------------------------------------------------
