Komutatorius Tenda TEF1105P-4-38W, 5x FE, 4x PoE

Trumpai apie prekę

Prekė: Komutatorius Tenda TEF1105P-4-38W, 5x FE, 4x PoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Tenda
• Modelis: TEF1105P-4-38W

• 5x RJ45 10/100 Mbps ports (PoE on 1-4 ports) with auto-negotiation function
• 4x IEEE 802.3af PoE ports
• Maximum output power of each PoE port: 15 W
• Maximum switch output power: 35 W
• Metal desktop enclosure
• 38W Output Power Supply
• For transmission over distances up to 250 meters, outside the one hundred-meter transfer limit
• Lightning protection 6 KV
• Support full and half duplex 10/100M
• How to provide Store-and-forward information
• MAC process support Learning and Aging address
• Possibility to connect to IP camera
• Plug-and-Play operation, without configuration

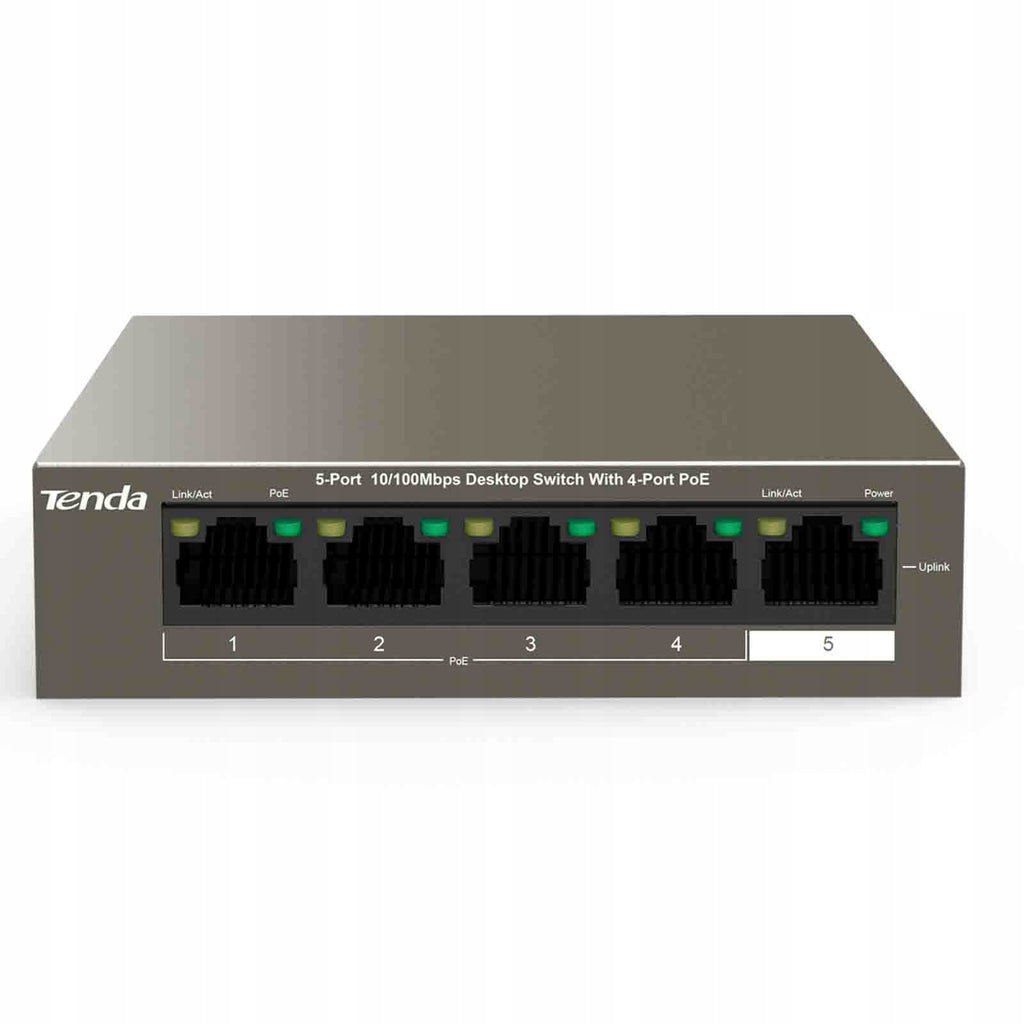

Switch Tenda TEF1105P-4-38W is a 5 port Fast Ethernet switch with 4 PoE ports

The switch has a metal desktop case. Ideally suited for WLAN and IP monitoring, as well as transmission up to 250 meters outside the limit of 100-meter transmission.

The switch is equipped with lightning protection 6KV. In many projects, access points and cameras are often installed outdoors or in elevated locations, which increases the chance of lightning hitting cameras and PoE switches. As a result, individual devices are damaged, and with them the entire network.

The TEF11 series switches have a professional lightning protection design for ports and power that effectively suppresses lightning current. During a storm, the Tenda TEF11 switch can also provide stable and reliable surveillance network operation and guarantee normal image transmission.

Due to the complex monitoring environment, when creating cabling and networks, very often there is a problem of insufficient network transmission distance, when the distance of each camera terminal from the monitoring center varies. The Tenda TEF11 series PoE switches use a common existing twisted pair cable and can support data transmission up to 250 meters.

1-4 ports are compliant with IEEE802.3af power standard. The entire switch offers a maximum PoE power of 35 W, while the each port provides a maximum PoE power of 15 W. Ports can be used to power and exchange data with access points and IP cameras.

• Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af
• Ports: 5x ports 10/100BASE-TX (ports 1-4 PoE)
• Port functions: Autonegotiation/Auto MDI/MDIX
• Switching: Capacity up to 1Gb/s, packet transfer rate up to 0.74 Mp/s
• Power supply: AC: 100-240V~50/60Hz, DC: 48V /0.8A power supply, Max. Output power of each PoE port: 15 W, Max. Switch output power: 35 W
• MAC address table: 1K
• PoE power supply: Ports from 1 to 4 - IEEE802.3 af standard, Max. Output power of each PoE port: 15 W, PoE (12+, 36- and 45+, 78- line pair)
• Power consumption: in full configuration <38W, 35W power supply
• Switching modes: Store-forward and cut-through, Wire-speed forwarding
• One-key mode:
• Standard: the switch acts as a common unmanaged switch, and all switch ports can communicate with each other;
• Extended mode: the power and data transmission distance will be up to 250m (10Mbps), this function can replace the extension cable and fiber parts. This will extend the distance of the entire system and reduce project costs
• LED: Link/Act , PoE Status, Power
• Lightning protection: 6kV
• Dimensions: 100 x 100 x 26 mm
• Certificates: FCC, CE, RoHS
• Working temperature: 0℃~40℃
• Working humidity: 10%～90%, non-condensing
