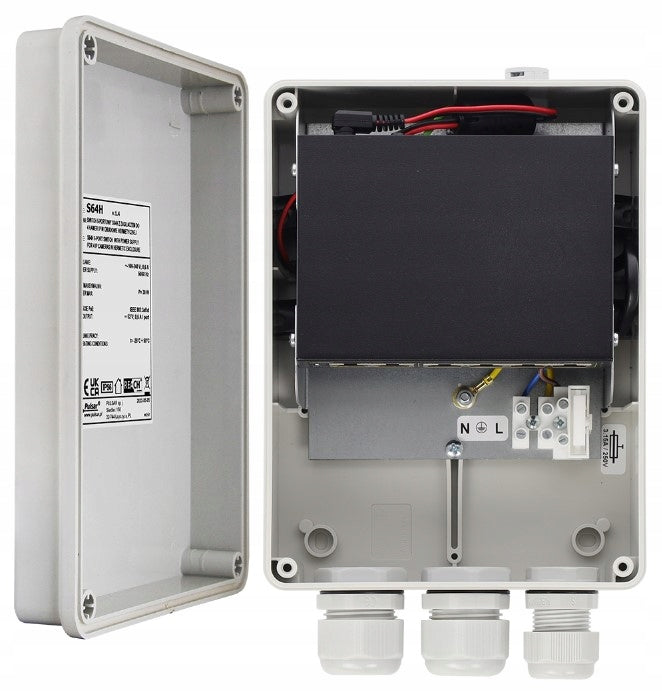

Komutatorius Pulsar S64H, 4xPoE, hermetiniame korpuse

Trumpai apie prekę

Prekė: Komutatorius Pulsar S64H, 4xPoE, hermetiniame korpuse. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: S64H

Pulsar S64H is a 6-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard.

Switch on ports 1 to 4 has the function of automatic detection of devices powered in the PoE / PoE + standard.

UpLink ports are used to connect additional network devices via RJ45 connector. On the front panel of the switch there is an indication of the operating status of the device realized on LEDs.

The switch allows you to work in two modes: standard and extended range. When the Long Range switch is in the STANDARD position, PoE ports operate at 100 Mbps and offer Ethernet coverage up to 100 meters.

After switching the switch to the EXTEND position, the range is increased to 250 meters and the speed is reduced to 10 Mb/s. In addition, the VLAN function is activated, which isolates PoE ports between each other (communication takes place between UpLink ports and individual PoE ports).

In both modes, the UpLink port speed is 100 Mbps.

Note: Changing modes requires a power restart!

PoE technology provides a network connection and reduces installation costs, eliminating the need to supply a separate power cable to each device. In addition to cameras, network devices that use this technology can be powered in this way, e.g. IP telephone, Access Point, router.

• 6 ports 10/100 Mbps
• 4 PoE ports 10/100Mbit (data transfer and power supply)
• 2 ports 10/100Mbit (UPLINK)
• Operating mode Long Range: STANDARD – 100m/100Mb/s or EXTEND – 250m/10Mb/s
• 30W* for each PoE port, support IEEE802.3af/at compliant devices
• Support auto-learning and auto-aging MAC addresses (1K size table)
• Optical signalling
• Possibility of mounting on a pole (requires the use of an OZB2 adapter - optional)
• Built-in power supply PSCL520115 52VDC/1,15A/60W
• Built-in pressure compensator (prevents water from accumulating inside the housing)
• Protections:- short-circuit SCP- overload OLP- overvoltage (AC input)
• Additional mounting hardware

DIMENSIONS OF THE DEVICE [+/-2mm]:

1. H - height 196mm,

2. H1 - connector height 155mm

3. H2 - connector height 35mm

4. H3 - connector height 9mm

5. W - width 146mm

6. W1 - width 105mm

7. D - depth 78mm

8. Ø - gland diameter:

2 x Φ=13÷18mm

1 x Φ=10÷14mm
