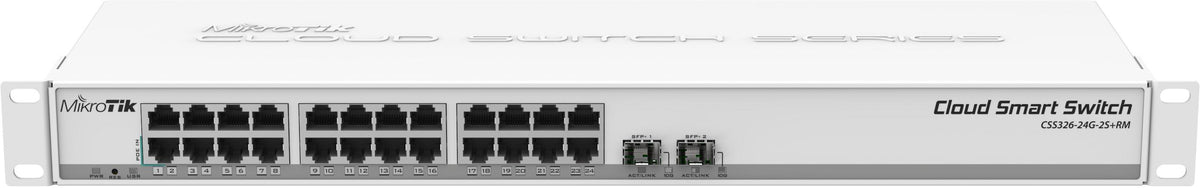

Komutatorius MIKROTIK ROUTERBOARD RTB-CSS326-24G-2S+RM, 24 RJ-45 prievadai, 2 SFP+

Trumpai apie prekę

Prekė: Komutatorius MIKROTIK ROUTERBOARD RTB-CSS326-24G-2S+RM, 24 RJ-45 prievadai, 2 SFP+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: MikroTik
• Modelis: CSS326-24G-2S+RM

MIKROTIK ROUTERBOARD CSS326-24G-2S+RM

The most important features

• 24 Gigabit Ethernet ports
• 2 SFP+ slots
• SwOS system
• Layer2 Management
• Switch chip - Marvell 98DX3216A1
• Power supply via passive PoE or DC plug, input voltage: 12 - 30 V DC

Product Description

The CSS326-24G-2S+RM is the first representative of the new MikroTika switch series. The device has a powerful Marvell chip - 98DX3216A1 and uses the SwOS system. Management takes place from the graphical Web interface, basic switching management functions and port-to-port forwarding, MAC filtering, VLAN configuration, mirror traffic or bandwidth limiting are available.

The offered product is equipped with 24 Gigabit Ethernet ports and 2 SFP+ slots. SFP slots are compatible with both SFP+ and standard SFP inserts (1,25 Gbps).

The device supports ACL access control lists, can support up to 4K VLANs simultaneously, host table size is 16K.

Other supported features include port isolation, port mirroring (ingress/egress movement), Rapid Spanning Tree Protocol and Broadcast storm control.

The device can be powered by passive PoE or DC plug, the input voltage range is 12 - 30 V DC (21 V, 1.2 A power supply is included).

Technical specification

• Switch chip: Marvell 98DX3216A1
• Embedded memory: 2 MB
• Type of built-in memory: Flash
• Ethernet ports: 24 gigabit 10/100/1000 Mbps Ethernet ports
• SFP+ slots: 2
• Serial port: RJ45
• Input voltage range: 12 - 30 V DC (DC plug or passive PoE)
• Maximum power consumption: 19 W
• Operating system: SwOS
• Dimensions: 440x144x44 mm
• Admissible operating temperature: From -40 to 70°C
