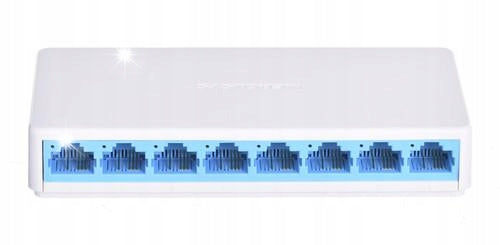

Komutatorius MERCUSYS MS108, 8 RJ45, 10/100 Mbps

Trumpai apie prekę

Prekė: Komutatorius MERCUSYS MS108, 8 RJ45, 10/100 Mbps. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Mercusys
• Modelis: 399775273

Switch Mercusys MS108, 8 RJ45 10/100 Mbps ports.

Characteristics:

• 8 RJ45 10/100Mbps ports (automatic connection speed negotiation, automatic patching - auto-MDI/MDIX)
• Easy expansion of the wired network
• Compact size makes it easy to find a convenient location for your product
• Plug and play installation - no need to configure the device

Elegant and compact design

The MS108 is a smartphone-sized device, so it doesn't take up much space. You can easily find a convenient place for it in your home. The switch has no fan, so it is very discreet even during intensive use.

Expanded Ethernet

The device is equipped with 8 10/100Mb/s Ethernet ports - this means the possibility of quickly expanding the wired network. The MS108 is a flexible product that works with most computers, printers, IP cameras, smart TVs, game consoles, etc. This feature makes the device ideal for use at home, in a small office, or even in a dormitory.

Simple operation

Forget about complicated and tedious setup process. Simply connect the switch to your TV or computer using an Ethernet cable. This way you will automatically expand your wired network. No additional configuration of settings is necessary.

Reliable performance

The availability of half-duplex/full-duplex modes and automatic MAC address memorization capabilities allow the device to achieve a total of 1,6Gb/s network bandwidth. Each switch is subject to detailed testing before going on sale, which is why MS108 is undoubtedly a reliable product, offering stable connections without interference.

Brand: Mercusys

Model: MS108

Ports: 8 x 10/100 Mbps

Automatic connection speed negotiation: Yes

Automatic patching (Auto-MDI/MDIX): Yes

Fans: None

Data transfer rate: 10/100 Mbps in half-duplex mode

20/200 Mbps in full duplex mode

Switching capacity: 1,6 Gbps

LEDs:Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power (Power Supply)

Standards and Protocols

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

Buffer Capacity: 768Kb

Jumbo frame:2KB

Switching Architecture:Store and forward

Certificates: CE, RoHS

Power Supply: External Power Supply, DC 5V/0.6A

Permissible operating temperature: 0°C~40°C

Permissible storage temperature: -40°C~70°C

Permissible air humidity: 10%~90%

Permissible storage humidity: 5%~90%

Dimensions: 127 x 60,3 x 22 mm
