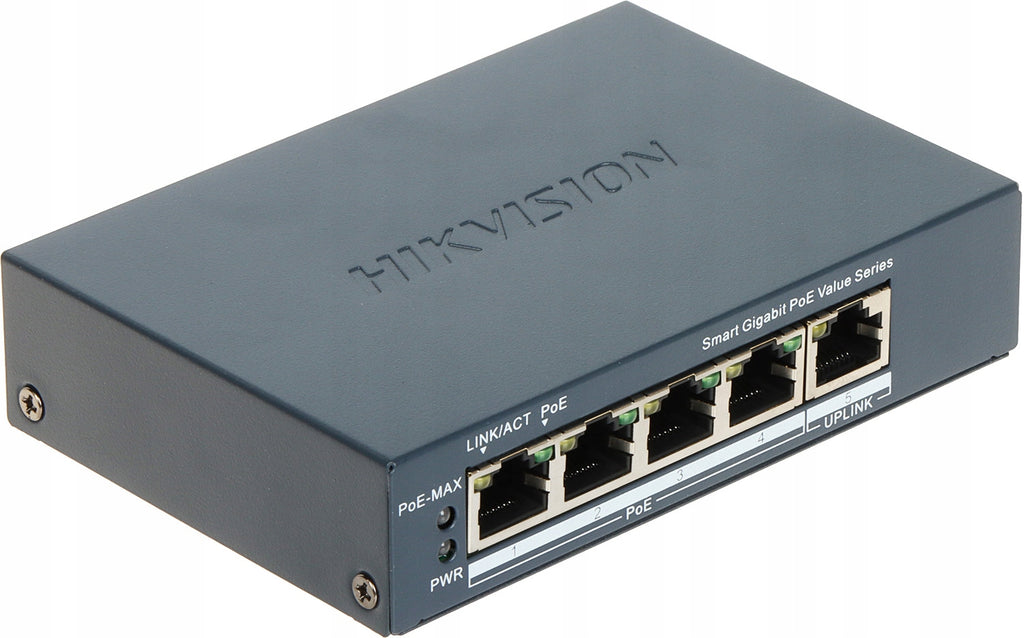

Komutatorius Hikvision DS-3E1505P-EI/M

Trumpai apie prekę

Prekė: Komutatorius Hikvision DS-3E1505P-EI/M. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-3E1505P-EI/M

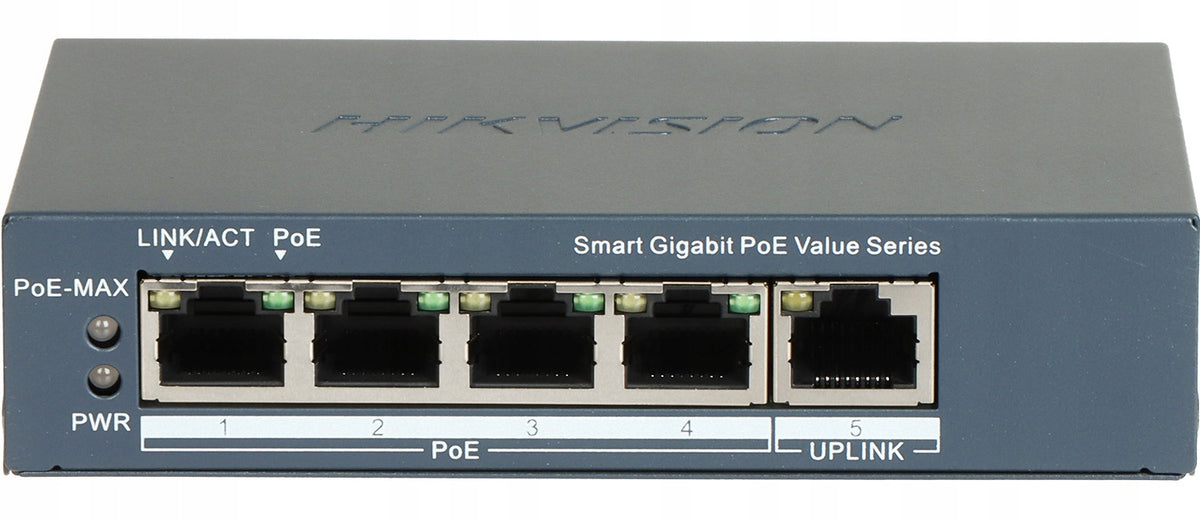

Hikvision DS-3E1505P-EI/M Gigabit PoE Switch

Model: DS-3E1505P-EI/M

Key Features:

• 4 × Gigabit PoE ports and 1 × Gigabit RJ45 port - simultaneous data transmission and power for IP cameras
• Total PoE power budget up to 45 W - stable power supply for multiple devices
• 802.1Q VLAN support - traffic segmentation and enhanced network security
• PoE Watchdog function - automatically detects and restarts unresponsive cameras
• STP/RSTP support - effective prevention of network loops
• Long-range PoE transmission up to 300 m - ideal for extensive monitoring installations
• Cable diagnostics and fault detection - quick location of infrastructure problems
• Port isolation and link aggregation - greater network security and flexibility
• Remote management and monitoring via HPP (Hik-Partner Pro)
• LLDP support - automatic detection of neighboring devices
• Durable metal housing and 6 kV surge protection
• Compact dimensions, low power consumption, and desk or wall mounting options
• Compliance with EMC, safety, and environmental standards - high reliability and quality

Technical Specifications:

Housing Material: Metal

Net Weight: 0.26 kg (0.573 lb)

Gross Weight: 0.75 kg (1.65 lb)

Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity: 5% to 95% (no condensation)

Relative Humidity: 5% to 95% (no condensation)

Power Supply: 54VDC, 0.92A

Installation Mode: Desk-Mounted, Wall-Mounted

Max. Power Consumption: 50 W

Idle Power Consumption: 1 W

Surge Protection: 6 KV

Network Parameters:

Ports: 4 × Gigabit PoE port, 1 × Gigabit RJ45 port

MAC Address Table: 2 K

Switching Capacity: 10 Gbps

Packet Forwarding Rate: 7.44 Mpps

Internal Cache: 1 Mbits

PoE Power Supply:

PoE Standard: IEEE 802.3af, IEEE 802.3at

PoE Power Pin Assignment: End-span: 1/2(-), 3/6(+)

PoE Port: Ports 1 to 4

Max. Port Power: 30 W

PoE Power Budget: 45 W

Software Function:

Long Range: Ports 1 to 4: up to 300 m. Long range performance may vary depending on camera model or cable condition.

Port Isolation: Ports 1 to 4: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog: Ports 1 to 4: auto detect and restart the cameras that do not respond.

Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation groups.

Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.

VLAN: VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.

HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.

System Maintenance: Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.

Standards:

EMC (Electromagnetic Compatibility): CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemical: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)

• EAN: 6942160450094
• SKU: 56637
