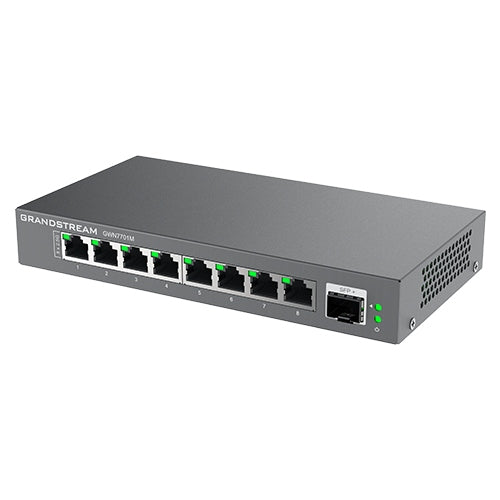

Komutatorius Grandstream GWN 7701M, 8x2,5GbE, 1xSFP, nevaldomas

Trumpai apie prekę

Prekė: Komutatorius Grandstream GWN 7701M, 8x2,5GbE, 1xSFP, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Grandstream
• Modelis: GWN7701M

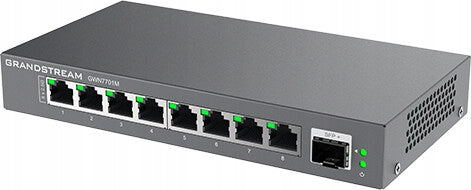

Grandstream GWN 7701M 8x2,5GbE+1xSFP unmanaged switch | Network | Unmanaged switches

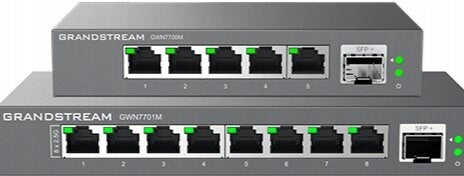

The GWN7700M series are unmanaged Multi-Gigabit network switches that provide high-speed network connectivity up to 2,5 Gbps for home offices and small and medium-sized businesses. These 6- and 9-port Multi-Gigabit switches support high-speed 1-gigabit, 2,5-gigabit and Ethernet network connections and include a 1-gigabit SFP+ fiber port that provides high-speed 1-gigabit or 10-gigabit satellite connectivity. GWN7700M and GWN77001M do not require configuration or installation, they can be mounted on a desktop or wall and include an automatic MDI/MDIX function, so you do not need to use crossed cables. They support automatic negotiation on each port to recognize network devices with a speed of 100/1000/2500 Mbps and intelligently adjust for compatibility and optimal performance. The GWN7700M and GWN7701M Plug-and-Play Switches are ideal unmanaged network switches for home offices and small and medium-sized businesses that require high-speed Multi-Gigabit connectivity.

• 8 copper Multi-Gigabit ports for 100/1000/2500 Mbps connectivity
• One 1-gigabit or 10-gigabit 100/1000/2500 Mbps SFP+ fiber optic port
• LED indicators; Per port: Connection/activity, per device: Power supply
• Automatic MDI/MDIX patch recognition for all ports
• Quiet operation: without fan
• Broadcast/Multicast/ Unicast Storm Control (fixed up to 100 Mbps) for motion monitoring
• Eco-friendly technology reduces energy consumption
• QoS – If present, supports Default Strict Priority

• LEDs: Power supply, Operation
• Product color: Black
• Power source: DC
• Power consumption (max): 9,7 W
• Input current: 1 A
• DC input voltage: 12 V
• Power supply included: Yes
• Product weight: 300 g
• Product width: 80 mm
• Product height: 27 mm
• Product depth: 145 mm
• IGMP snooping: Yes
• Authentication type: IEEE 802.1x
• MAC Address Filtering: Yes
• Switch type: Not managed
• Service Quality of Service (QoS): Yes
• Communication standards: IEEE 802.3bz, IEEE 802.1p, IEEE 802.3ae, IEEE 802.1x, IEEE 802.3aq, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3i, IEEE 802.3u
• Data transfer speed over Ethernet LAN: 10,100,1000,2500 Mbit/s
• Support 10G: No
• Active connection search: Yes
• Auto-Negotiation: Yes
• Weight with packaging: 520 g
• Packaging depth: 255 mm
• Basic RJ-45 Ethernet Switching Ports Type: 2.5G Ethernet (100/1000/2500)
• Basic RJ-45 switching Number of Ethernet ports: 5
• Number of SFP+ modules installed: 1
• Compatible with Jumbo Frames: Yes
• Routing/switching throughput: 45 Gbit/s
• Jumbo Frames extension: 9
• PoE support: No
• Multicast support: Yes

Specifications
