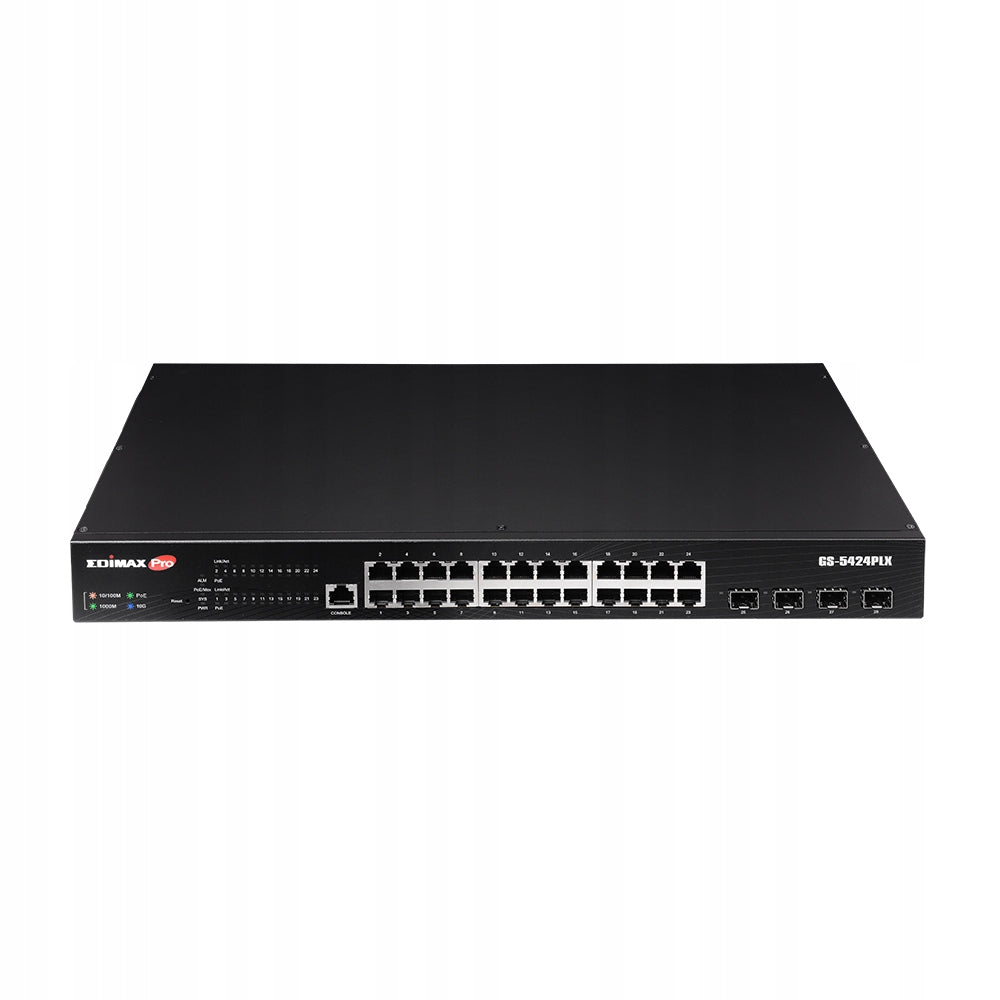

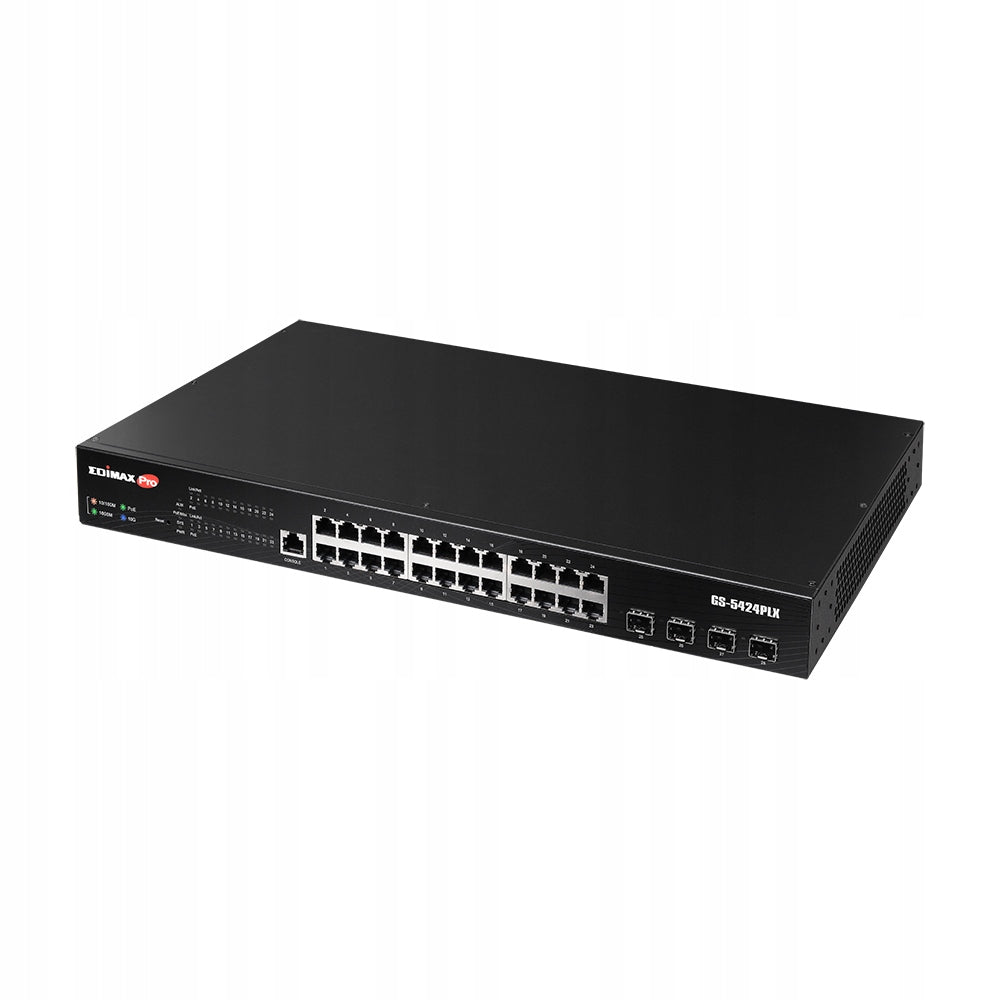

Komutatorius Edimax GS-5424PLX, 24 PoE+ RJ45/SFP+ 10 GbE prievadai

Trumpai apie prekę

Prekė: Komutatorius Edimax GS-5424PLX, 24 PoE+ RJ45/SFP+ 10 GbE prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Edimax
• Modelis: GS-5424PLX

GS-5424PLX

• Gigabit Ethernet ports and 4 10-gigabit SFP+ ports.
• Guaranteed PoE power supply over a distance of 200 meters.
• Dual firmware reduces switch inactivity time.
• Switching speed 128Gb/s, Forwarding rate 95.2Mp/s (64 bytes pack size)
• IEEE 802.3af/at support.
• Improve picture and sound quality with IP Surveillance VLAN and Voice VLAN.
• Maximum output power 30W for each port (total output power: 400W).
• Automatic detection of connected devices (PD) and power consumption level.
• Check the activity of connected PoE devices (PD) to increase network reliability.
• Reverse current protection to protect ports from damage.
• DHCP snooping to protect the integrity of the DHCP server and its operations.
• Support SNMP v3, Access List Control (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror.
• 16K MAC address array and support for jumbo frames up to 12KB.
• Two interchangeable fans and a 19-inch rack-mountable housing.

24 gigabit ports for high-speed connections and uplink up to 40Gb/s fiber optic, allowing you to easily deploy the GS-5424PLX in multiple physical locations such as branch offices, retail stores or remote workgroup environments for better network access.

Let safety be known - Built-in reverse current protection and PoE device detection function ensures the safety and performance of the PoE network.

Large data processing capabilities - With 128Gb/s bandwidth and 95.2Mp/s packet forwarding speed, the GS-5424PLX provides maximum available bandwidth without lag.

Solid failover mechanisms - GS-5424PLX has two copies of firmware. It can immediately activate a firmware backup if there are problems with the software you are currently using.

Most Ethernet switches have a limited distance of up to 100 meters, the GS-5424PLX long-range mode provides increased power and data delivery distance of up to 200 meters (656 feet) when operating in full 10 Mbps duplex mode for each port. It is ideal for long-distance applications such as IP cameras, VoIP phones, access points and PoE-enabled IoT devices in remote locations.

Thanks to a dedicated and intelligent system cooling control system, the GS-5424PLX can measure and control the fan speed, as well as turn on/off each of them to save energy and reduce noise.

Each port is equipped with reverse current protection to avoid damage to PoE ports when custom PSE (Power Sourcing Equipment) devices are connected.

• Ports: 24 x RJ-45 10/100/1000Base-T; 4 x SFP+ 10GbE
• Transmission method: Store and forward
• Buttons: Reset
• Diodes: Port: Link/Act; PoE: Act/Status; Device: Power
• Power supply: 100-240V AC, 50-60 Hz, internal power supply
• Maximum power consumption: 400W
• Fan: 2 fans with hot-swap replacement
• Surge protection: Provides surge protection up to 6KV on RJ45 ports
• Dimensions: 441 × 270 × 45 mm
• Weight: 4.36kg

EFFICIENCY

• Switching Capacity: 128Gbps
• Forwarding Rate: 95.2Mpps (package size - 64B)
• MAC Address: 16KB
• Jumbo Frames: 12KB
• Filtering/Forwarding Rates: 1000Mbps port - 1,488,000pps; 100Mbps port - 148,800pps; 10Mbps port - 14,880pps

POWER OVER ETHERNET (PoE)

• Standard: IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
• Output Power: Up to 30W per port
• Pins used: 1/2(+), 3/6(-) End-Span (mode A)
• Management: PoE status, PoE on/off, PoE PD alive check, port priority
• Range: Long-range PoE mode up to 200 meters at 10Mbps
• Return current protection: Yes

SMART FUNCTIONS

• Quality of Service (QoS): Speed limitation for packets sent and received by the interface; 8 queues on each port; WRR, SP, WRR+SP queue scheduling algorithms; Re-checking 802.1p priority and DSCP priority; Speed limiting in each queue and shaping port traffic
• Class of Service (CoS): IEEE 802.1p Service Class (SPQ, WRR); Port-based CoS; IP TOS precedence; CoS based on 802.1p VLAN information; CoS based on DSCP; CoS based on TCP/UDP protocol
• Spanning Tree: IEEE 802.1d Spanning Tree Protocol (STP): IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• VLAN: Up to 200 VLANs and 4096 VLAN IDs; 802.1Q tag-based VLAN; Port-based VLAN; Surveillance VLAN; VoiceVLAN; MACVLAN; GVRP
• IPV6: IPv6 over Ethernet (RFC 2464); Dual-stack (RFC 4213); ICMPv6 (RFC 4884); Nearby Device Detection (RFC 4861); Automatic Configuration; Static IPv6 Address and Prefix Length; Static IPv6 Gateway; IPv6 Duplicate Detection
• Port Trunking: IEEE 802.3ad LACP Trunk-Static trunk - up to 8 groups
• IGMP Snooping: IGMP v1/v2/v3 snooping
• Mirror: Port mirroring for ingress and egress traffic
• Security: RADIUS; AAA; Access Management; Authorization Management; Port Security; Protected Port; Storm Control; DoS; Dynamic ARP Inspection; DHCP Snooping; IP Source Guard
• Management: Interface: browser management; Account: login account configuration; Software update: through browser; Syslog: Event log, Alarm log and Security log

WORKING CONDITIONS

• Temperature: Operation: 0~50°C; Storage: -40~70°C
• Humidity (non-condensing): Operation: 10~90%; Storage: 10~90%

COMPLIANCE WITH STANDARDS

• Standards: IEEE 802.3 10BaseT Ethernet; IEEE 802.3u 100BaseTX Fast Ethernet; IEEE 802.3ab 1000BaseT Gigabit Ethernet; IEEE 802.3z 1000BaseSX/LX; IEEE 802.3af Power over Ethernet (PoE); IEEE 802.3at Power over Ethernet (PoE+); IEEE 802.3x Full-duplex and flow control; IEEE 802.1p Quality of Service (QoS); IEEE 802.1x Port-based Network Access Control(PNAC); IEEE 802.1Q Virtual LANs VLANs; IEEE 802.1d Spanning Tree Protocol(STP); IEEE 802.1w Rapid Spanning Tree Protocol(RSTP); IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3az Energy Efficient Ethernet
• Certifications: FCC Class A, CE
