Kamerų pagrindo plokštė CM4-DUAL-CAMERA-BASE

Trumpai apie prekę

Prekė: Kamerų pagrindo plokštė CM4-DUAL-CAMERA-BASE. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: 21153

CM4-DUAL-CAMERA-BASE - base plate with cameras for Raspberry Pi CM4 modules

Description

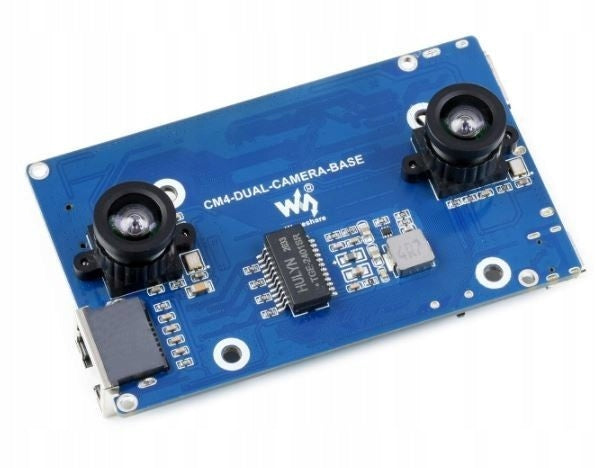

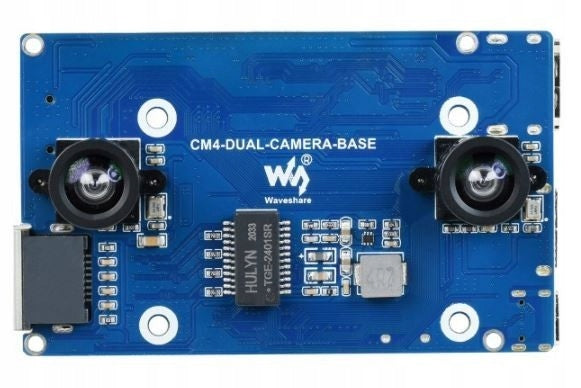

Dual Camera Base designed for Raspberry Pi CM4 modules. It is equipped with special connectors for connecting the CM4 module and outputting basic interfaces, including USB, Ethernet, HDMI and microSD card slot. In addition, there are two FFC connectors on which USB 2.0, PCIe and HDMI and GPIO interfaces are available. They are used to connect RPi CM4 with interface expander. On the other side of the board, the user has two cameras with an IMX219 sensor with a resolution of 8 MP (3280 x 2464 px).

The set is dedicated to applications using stereo vision, including image recognition in autonomous driving systems or robotics. Full documentation is available on the product wiki page.

Properties

• CM4 connector: suitable for all variants of the Raspberry Pi CM4 module (not included)
• HDMI connector with 4K 30fps support
• RJ45 Gigabit Ethernet connector
• USB 2.0 connector
• USB Type-C connector for power and programming
• microSD card connector
• FFC connector (GPIO)
• FFC connector (HDMI, PCIe, USB)
• 2 x camera with IMX219 sensor
• Resolution: 8 MP, 3280 x 2464 px
• Optical CMOS Size: 1/4"
• Aperture: F2.4
• Focal length: 2,6 mm
• Viewing angle (FOV): 83/73/50°
• Distortion: <1%
• Power Supply: USB Type-C, 5V/2,5A
• Dimensions: 85 x 51,5 mm

Comes with

• Dual Camera Base Module
• Set of screws

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	21153
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5906623422715
Parametry	Batteries included	no
