Kameros modulis ArduCam OV5642 5 MP

Trumpai apie prekę

Prekė: Kameros modulis ArduCam OV5642 5 MP. Kategorija: Priedai.

• Gamintojas: ArduCam
• Modelis: B0019

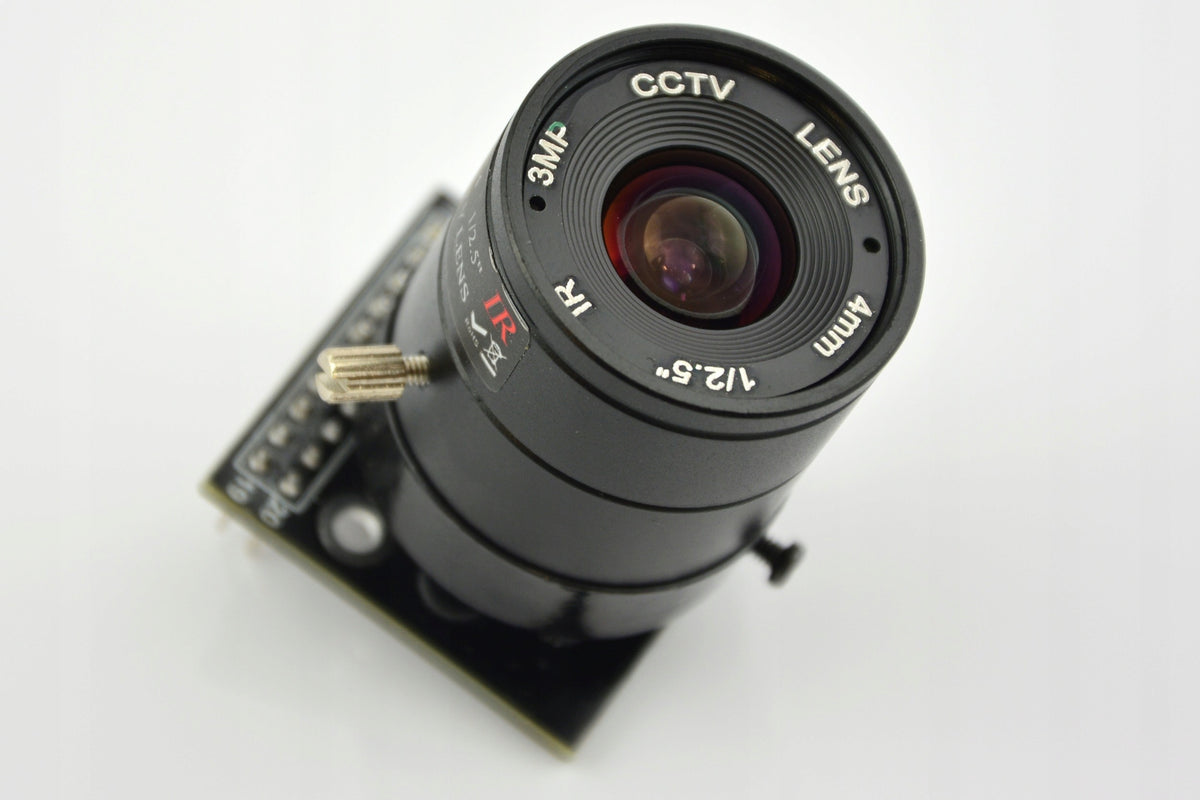

Camera module ArduCam OV5642 5 MPx

Description

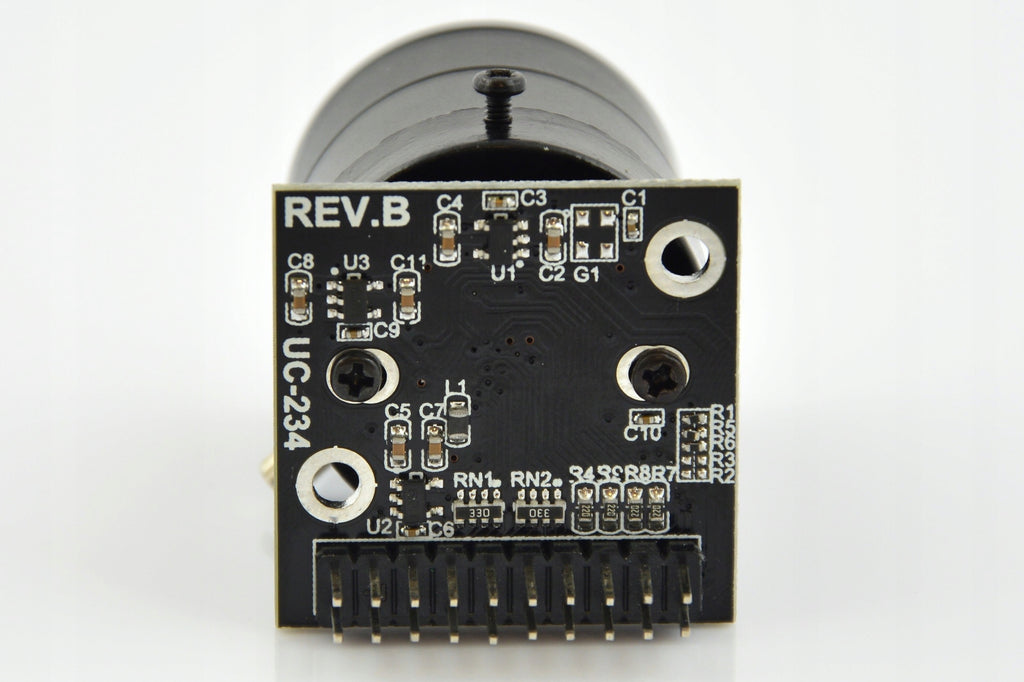

The ArduCam OV5642 5 MPx camera module is based on a matrix with the OV5642 chip. It allows you to record individual images and video images by AVR microcontrollers (ARDUINO boards), STM32, Raspberry Pi single-board computers (Raspberry Pi 3 model B+, Raspberry Pi 3 model B, Raspberry Pi 2 model B, Raspberry Pi 1 model B+) or BeagleBone Black, thanks to the parallel interface.

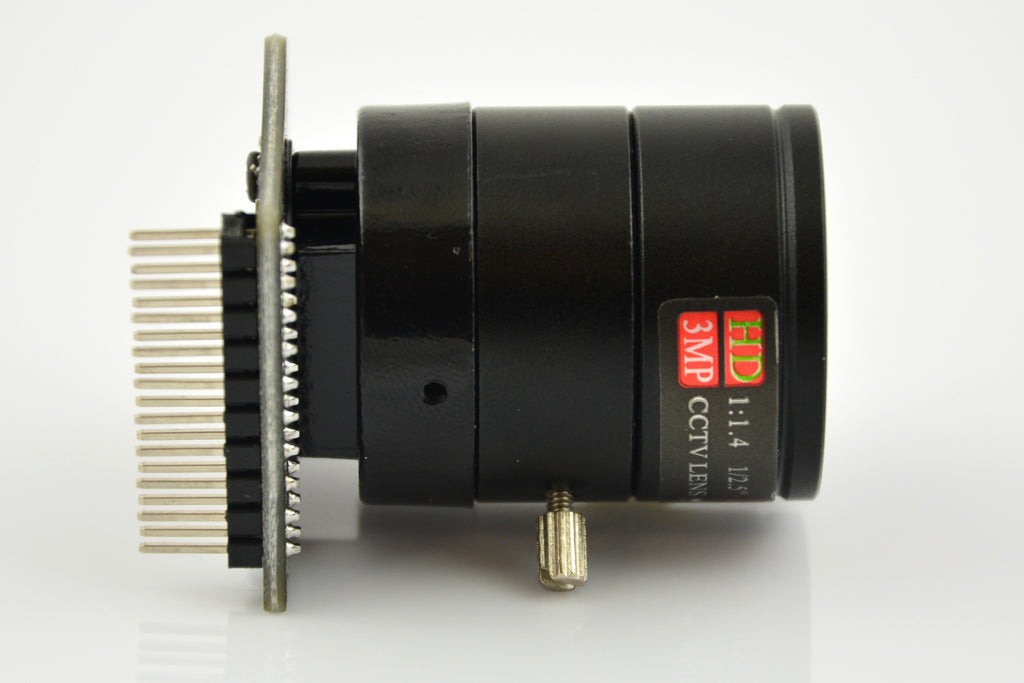

The JPEG data transfer rate at full resolution of 2592 x 1944 px is 15 FPS. It is equipped with a CS mount lens with the following parameters: 3MP, 1:2,5, with a focal length of 4.0 mm, format 1/2.5''. The camera module operates at 3,3 V and communicates via a parallel interface.

Properties

• Matrix: OV5642, CMOS, 1/2,5''
• Resolution: 2592 x 1944 pixels (5 MPx)
• Pixel Size: 1,4 x 1,4 μm
• Lens 1:1,4:
• Mount: CS-mount
• Focal length: 4 mm
• Type: CCTV, 5 MP
• Format: 1/2.5''
• Outputs:
• YUV(422/420) / YCbCr422
• RGB565/555/444
• CCIR656
• Compressed 8-bit data
• 8 / 10 bit RAW RGB Data
• Speed (FPS):
• 5 MPx (2592 x 1944): 15 fps
• 1080p (1920 x 1080): 30 fps
• 720p (1280 x 720): 60 fps
• VGA (640 x 480): 60 fps
• QVGA (320 x 240): 120 fps
• Operating Voltage:
• I/O leads: from 1,7 V to 3,0 V
• Core: 1,5 V to 1,7 V (nominal 1,5 V)
• Analog circuits: from 2,6 V to 3,0 V (nominal 2,8 V)
