Kamera modulis Raspberry Pi, 5 MP, OV5647 jutiklis, 2592x1944

Trumpai apie prekę

Prekė: Kamera modulis Raspberry Pi, 5 MP, OV5647 jutiklis, 2592x1944. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: DS01406

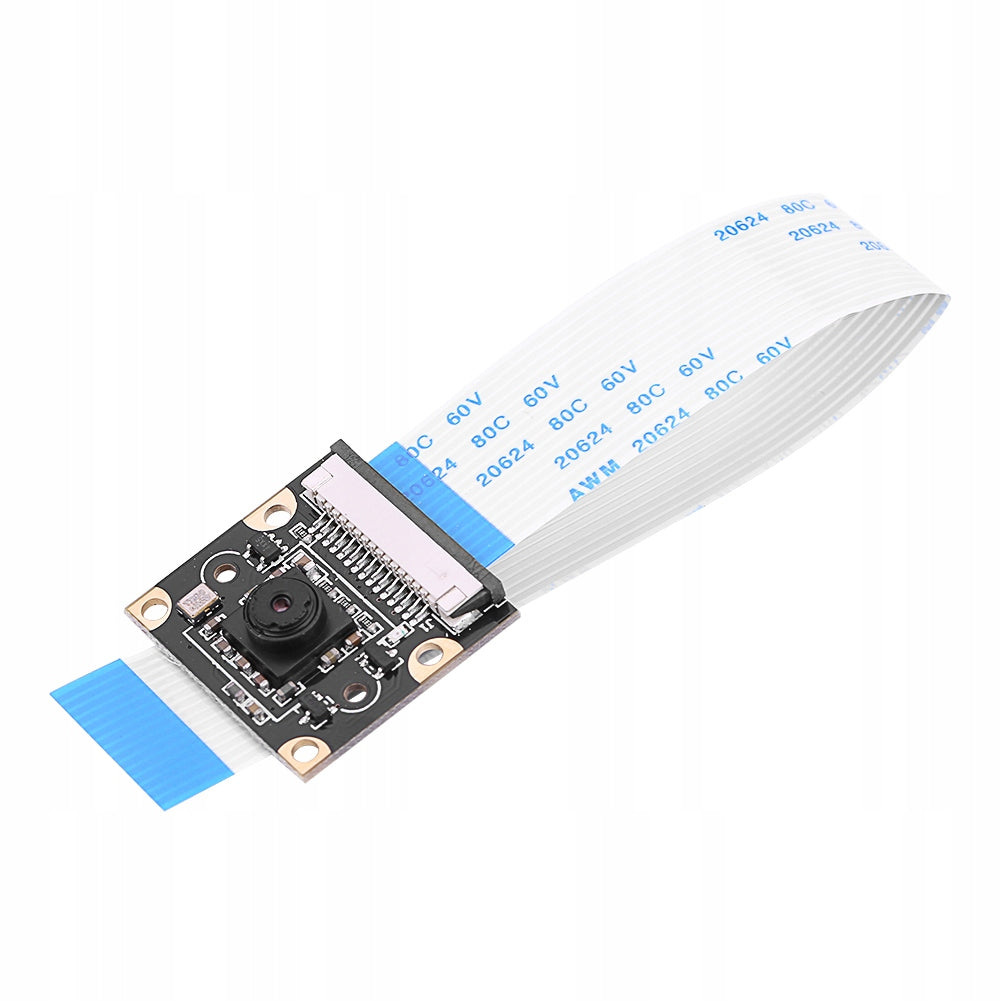

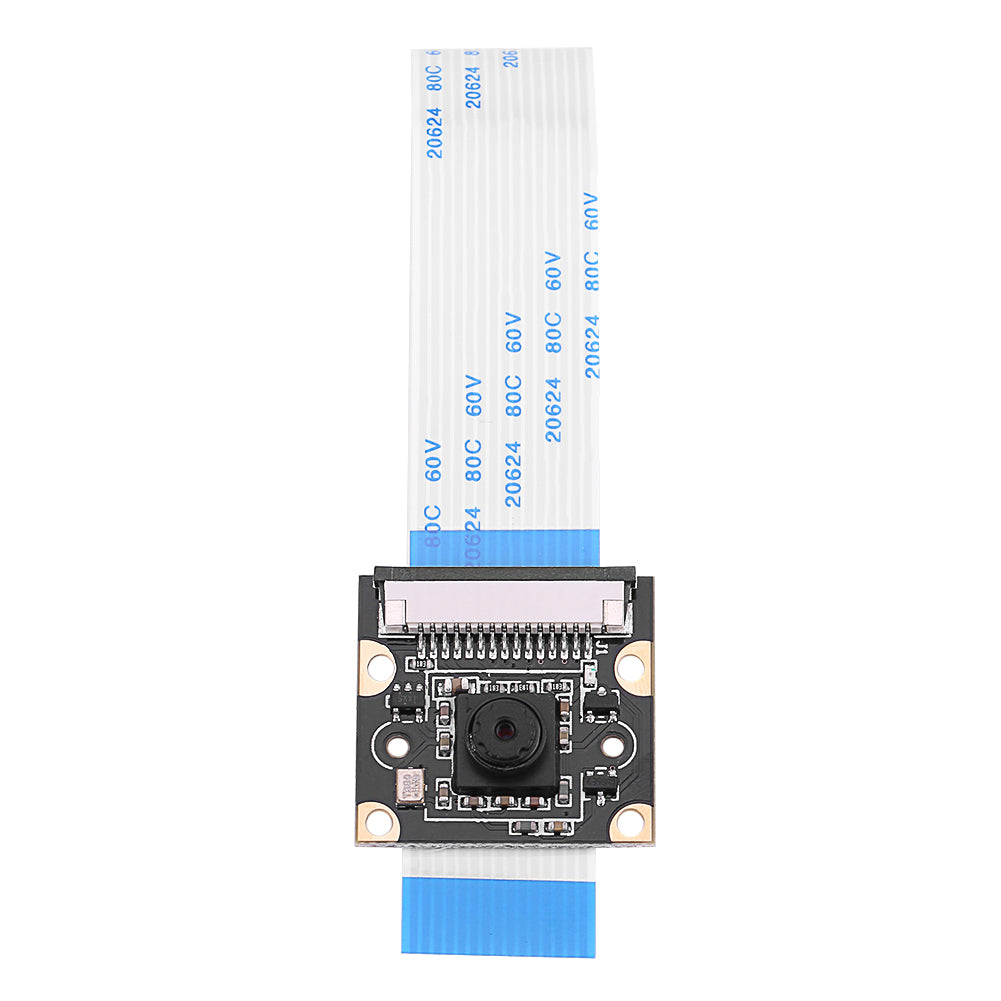

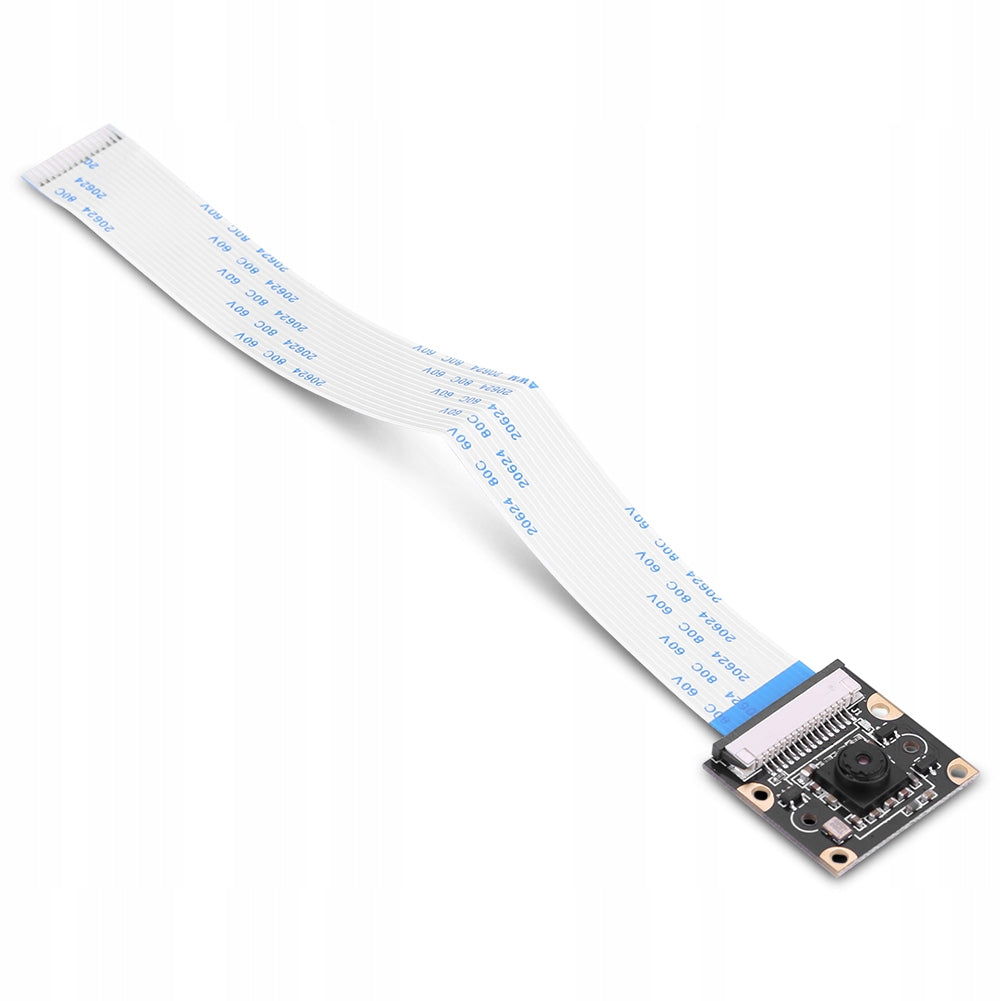

General Infrared Night Camera Module OV5647 5 Megapixel Sensor For Raspberry Pi

Description:

The camera module is a specially designed addition to the Raspberry Pi. The sensor itself has a native resolution of 5 megapixels and has a fixed focal length lens on board. As for static images, the camera can capture static images at a resolution of 2592 x 1944 pixels and also supports video at 1080p30, 720p60 and 640x480p60/90 resolutions.

. MODULE HD CAMERA 5MPX 2592X1944 SENSOR OV5647 FOR RASPBERRY PI

Characteristic:

1. The camera can capture static images at a resolution of 2592 x 1944 pixels and also supports video at 1080p30, 720p60 and 640x480p60/90 resolutions

2. 4 screw holes can be used for fixed position, easy installation

3. Supports external 3,3V power supply

4. Supports access to infrared lights or complementary lights

5. Support infrared night vision function

. MODULE HD CAMERA 5MPX 2592X1944 SENSOR OV5647 FOR RASPBERRY PI

Specification:

Condition: 100% new

Material: plastic

Pixel: 500 W

Sensor: OV5647

CCD Size: 1/4 inch

Aperture (F): 2,9

Focal length: 3,29 mm

Diagonal: 72,4 degree

Best sensor resolution: 1080p

Static image resolution: 2592 x 1944

Support video recording: 1080p30, 720p60, 640x480p60/90

Dimension: approx. 25x24x6mm / 0,98x0,94x0,24 inch

Package weight: approx. 10g

. MODULE HD CAMERA 5MPX 2592X1944 SENSOR OV5647 FOR RASPBERRY PI

Packing list:

1 x Night Camera Module for Raspberry Pi

FFC cable 1 x 15 cm

. MODULE HD CAMERA 5MPX 2592X1944 SENSOR OV5647 FOR RASPBERRY PI
