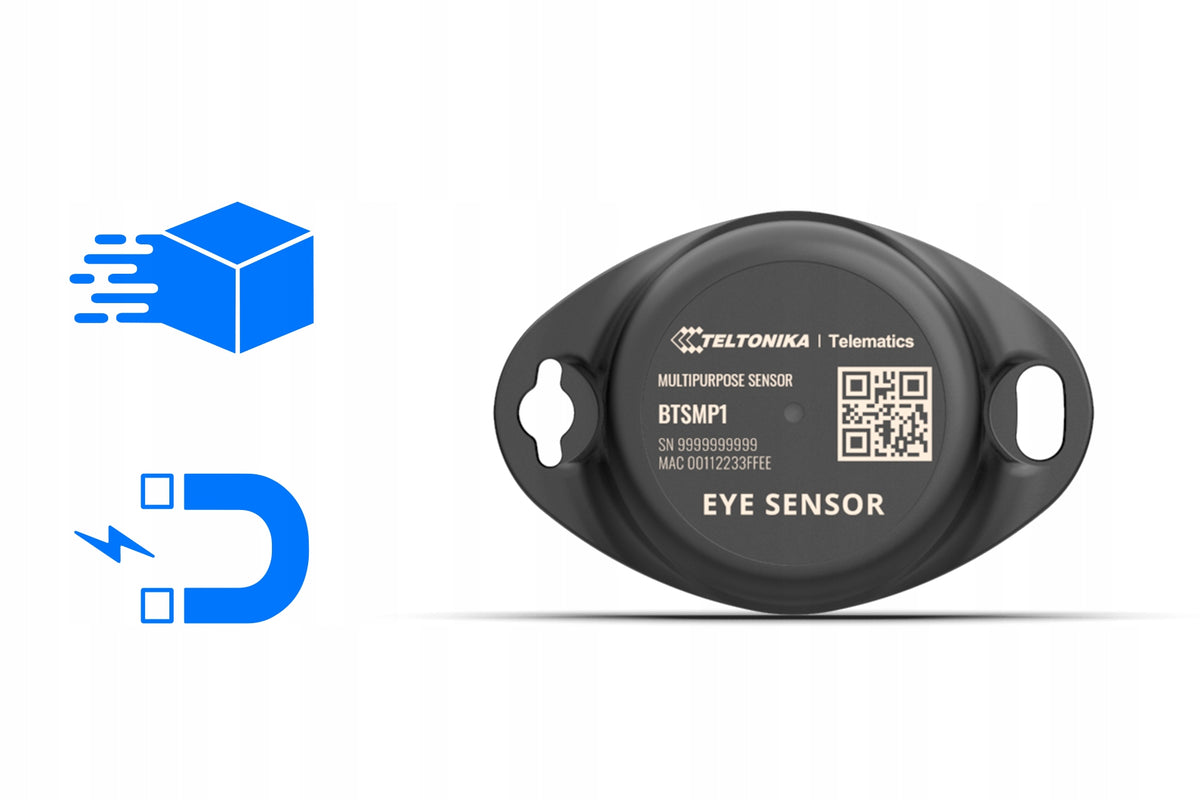

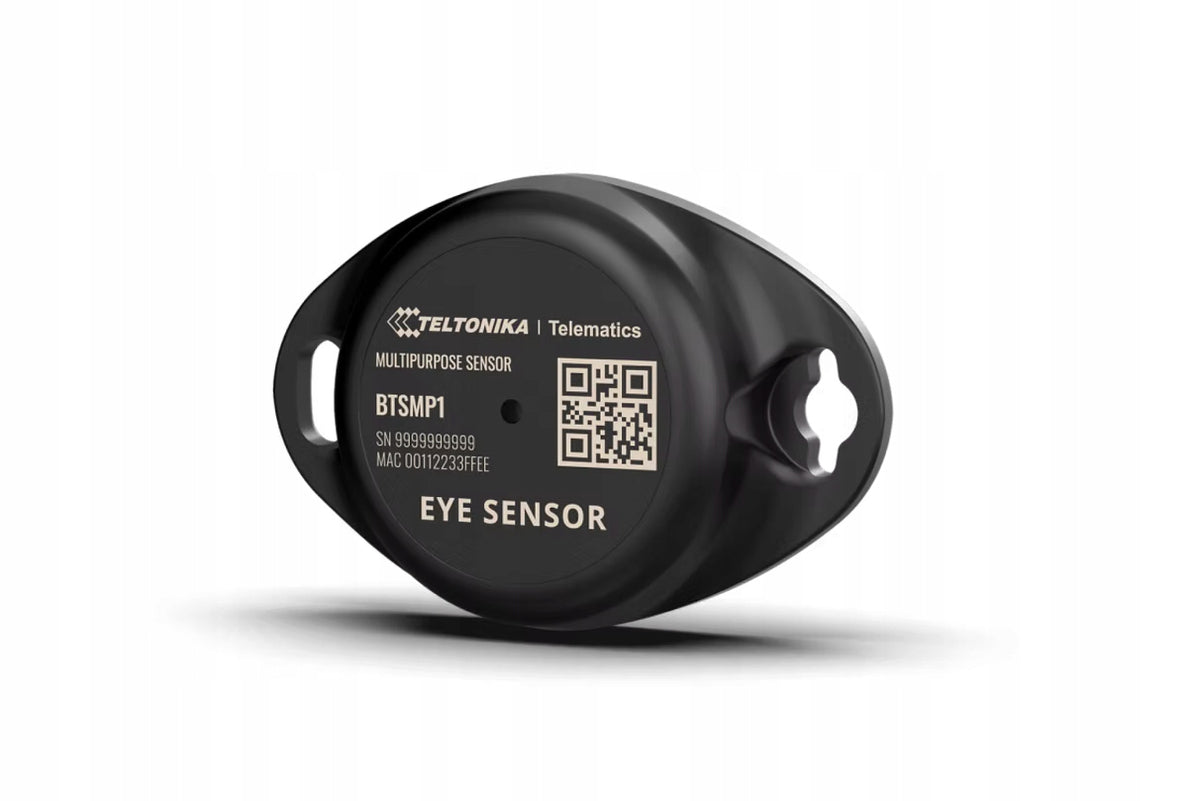

Jutiklis Teltonika Eye Sensor Stadart BTSMP1, BLE

Trumpai apie prekę

Prekė: Jutiklis Teltonika Eye Sensor Stadart BTSMP1, BLE. Kategorija: Belaidė „Bluetooth“ ryšio įranga.

• Gamintojas: Teltonika
• Modelis: BTSMP1

Bluetooth® sensor for monitoring your assets – temperature, humidity, motion and magnet status control.

Precise temperature measurement

It provides the right conditions in refrigeration logistics and in various indoor environments.

Motion detection and door opening

Stay up to date when your assets are in motion and check the status of your door – open or closed.

Intelligent design

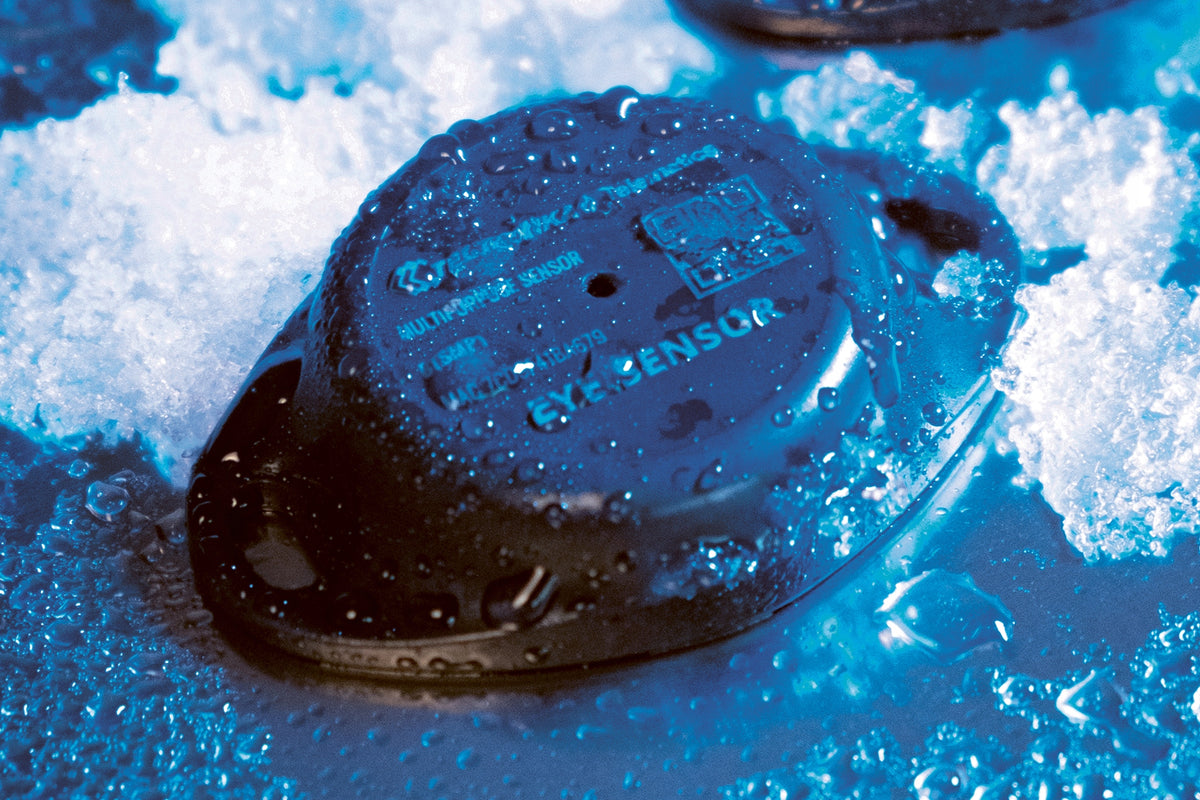

The compact EYE can be conveniently mounted in 4 different ways, and the IP67-rated housing guarantees reliability and durability.

EYE APP

Intuitive and easy-to-use Teltonika mobile application for quick configuration and data scanning.

Wireless solutions open up new horizons for your business and help you control your assets. Discover our new certified Bluetooth® Low Energy ID sensor from Teltonika with a durable, waterproof housing and a long-life battery. This model is designed for cost-effective, quick and easy setup and integration, saving you valuable time and resources and ensuring accountability.

Ideal for traceability, delivery tracking, monitoring of various moving objects in logistics (trailers, containers), agriculture (tractor equipment) and construction (tools and stocks). Sensor data makes the device particularly useful in cold stores with a cold chain. The built-in accelerometer detects the movement of objects, the slope and tilt of the device. Magnetic detection can be used to wirelessly detect opening/closing and notifications such as trailer door events, etc. The EYE sensor supports iBeacon and Eddystone protocols. The device is fully compatible with the Teltonika firmware platform, which provides extended functionality. Configure, scan and update anywhere, anytime with the dedicated Teltonika mobile app.

Product specification

Functionalities

Signaller ID, LED, Temperature, Humidity, Accelerometer, Magnet Detection

• Dimensions and weight:
• Dimensions: 56,6 mm x 38 mm x 13 mm
• Weight: 18 g

• Battery and power supply:
• Model: CR2450
• Type: Lithium type, Manganese dioxide
• Total capacity: 600 mAh
• Replaceable: NO
• Battery life (Tx=2 dBm; interval: 3 s): 2,5
• Battery life (Tx=2 dBm; interval: 5 s), default: 4 years
• Battery life (Tx=2 dBm; interval: 10 s): 5 years

• Communication:
• Bluetooth®: Bluetooth® 4.2 compatible
• Scope: 80 meters
• Transmission power levels available: Up to 8 dBm
• Sensitivities: -88 dBm

• Case:
• Protection: IP67
• Assembly: Two screw/lead/strap holes, tape
• Personalization: Custom logo (special conditions)

• Environmental requirements:
• Moisture (non-condensing): 0% to 100%
• Working temperature: -20°C / +60°C (-4°F / +140°F)

Compatibility of protocols

iBeacon: Yes *iOS does not display iBeacon devices

Eddystone: Yes

Eye Sensor: Yes

Dimensions

Specifications
