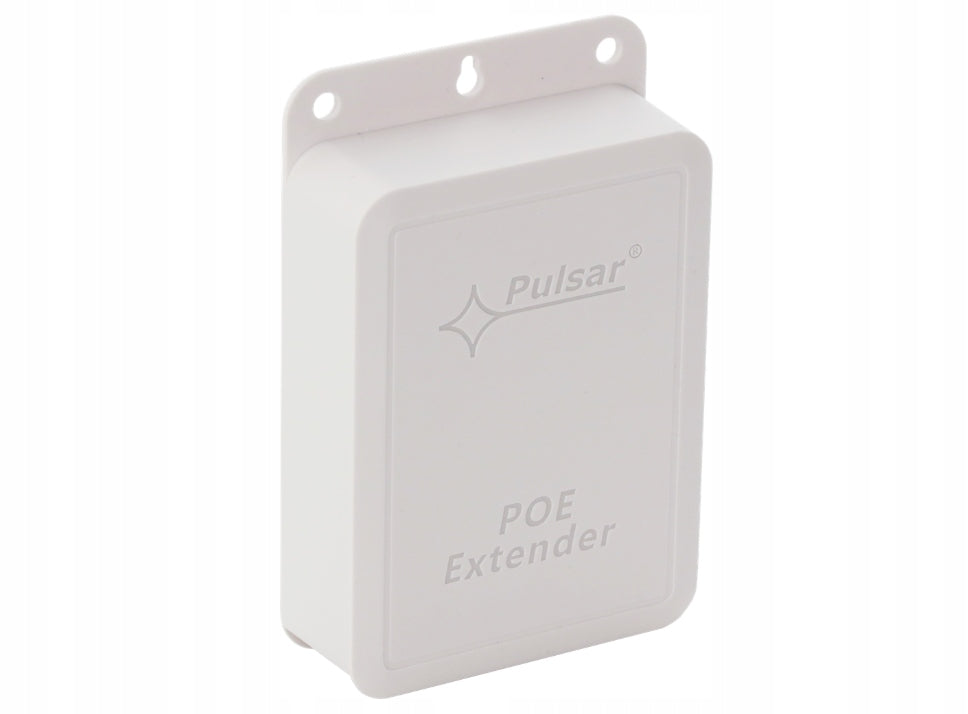

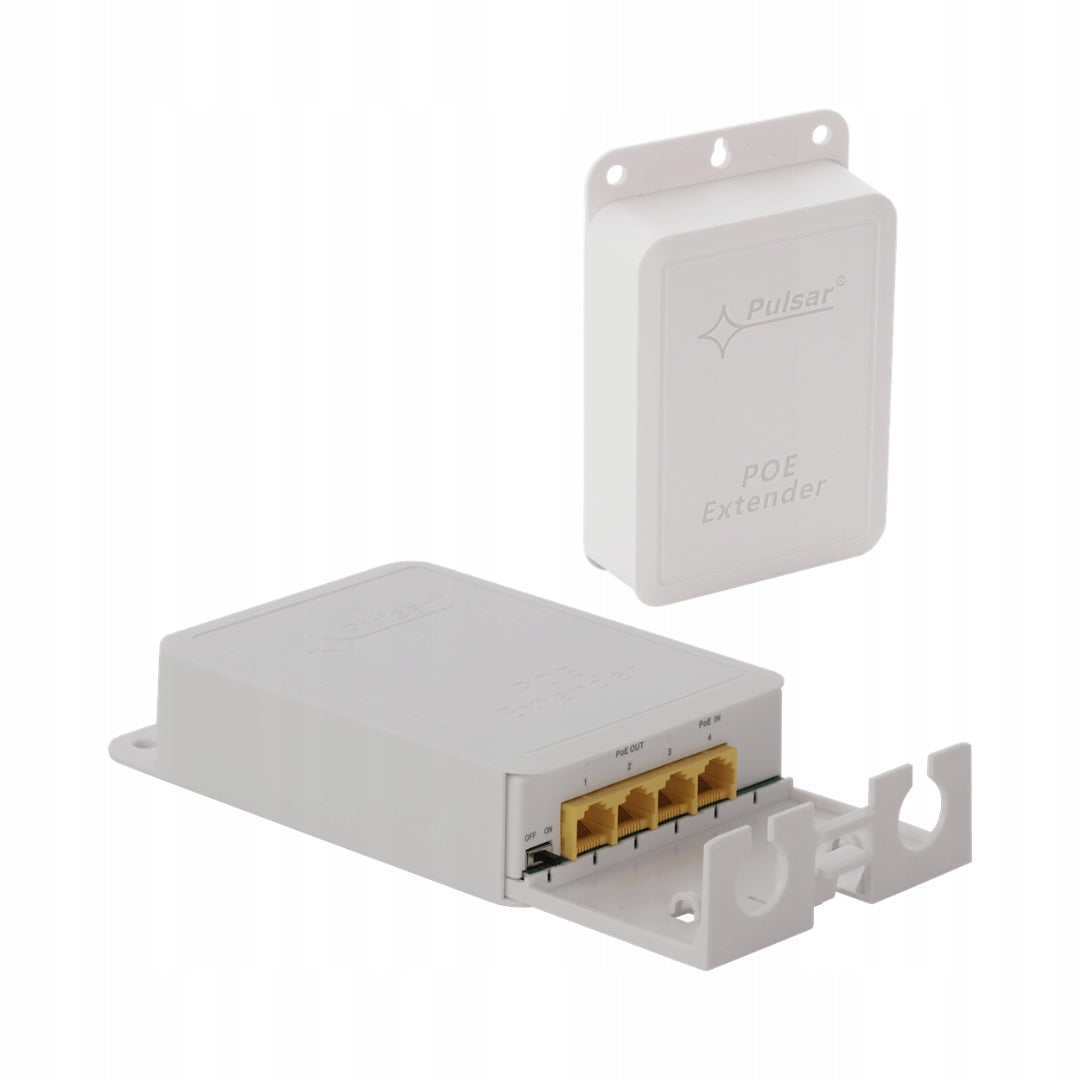

Išorinis tinklo ilgintuvas PULSAR EXT-POEG3-OTD

Trumpai apie prekę

Prekė: Išorinis tinklo ilgintuvas PULSAR EXT-POEG3-OTD. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: EXT-POEG3-OTD

Extender EXT-POEG3-OTD is a device designed to increase the transmission distance of PoE power supply and Ethernet data using twisted pair UTP cat. 5/5e o another 100m. Extender is powered by a PoE switch or other PoE compliant device (PoE IN input). Output voltage and data are available on PoE OUT 1 – 3 outputs, to which cameras or other IP devices using PoE power must be connected.

Technical parameters

• Power supply - Compatible with 802.3af/at (48 – 57 V DC)
• Power consumption by module circuits - < 20mA
• Module power - 25 W max.

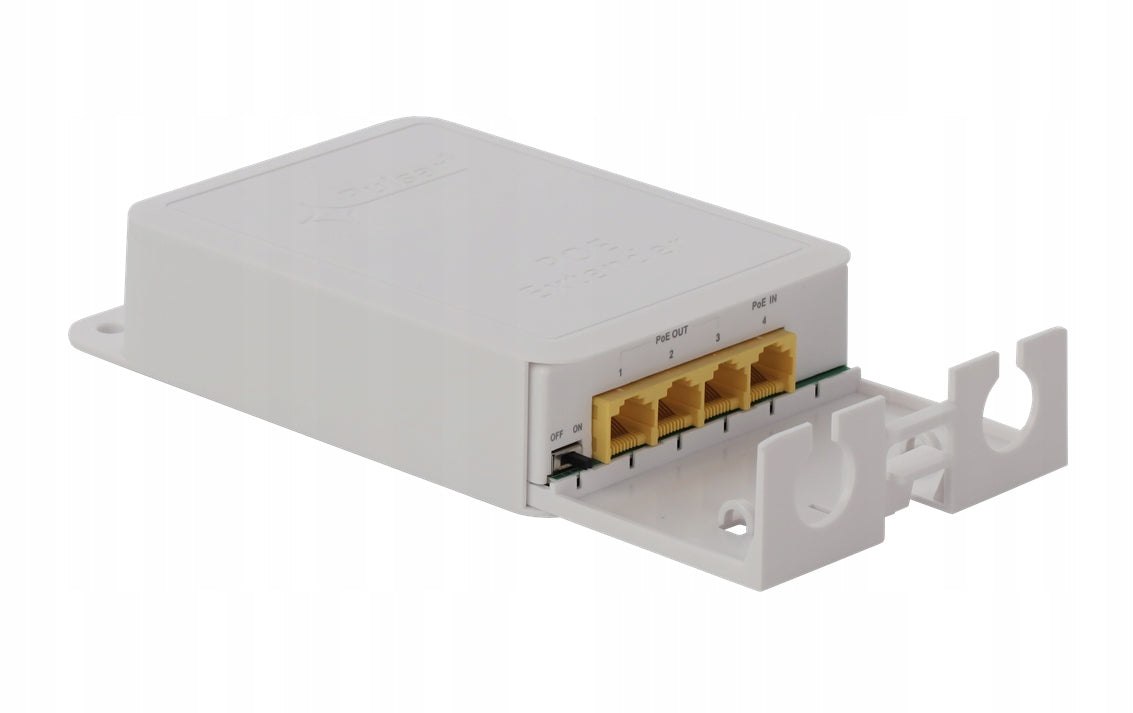

• Ports - 4 ports 10/100/1000 Mbps (1 x PoE IN + 3 x PoE OUT) with automatic connection speed negotiation, Auto MDI/MDIX automatic patching)
• Output voltage - Compliant with 802.3af/at
• Output current - 0,5A/port (∑=0,5A max.)
• Input power pairs - PoE IN 1/2 (+) 3/6(-) and 4/5 (+) 7/8 (-)
• Output power pairs - PoE OUT 1 – 4 1/2 (+) 3/6(-) and 4/5 (+) 7/8 (-)
• OLP overload protection
• SCP short-circuit protection 105% – 150% of rated output current, automatic return
• Optical signaling

LEDs (green)

Ports 1 to 4:

Lights up - connected device 10/100/1000 Mbps

Pulses - data transmission

• Power Supply:

Lights up - the device is powered

Does not light up - no power

• Working conditions - -10ºC – +50ºC
• Dimensions(LxWxH) - 98 x 35 x 149 [+/- 2mm]
• Attachment Mounting screws - x2 (76mm spacing)
• Connections: -in/out. POE - RJ45 8P8C
• Tstorage temperature - -20ºC...+60ºC
• Declarations, warranty - CE, RoHS, 2 years

Extender is intended for installation by a qualified installer with appropriate (required and necessary for a given country) permits and permissions to connect (interference) to low-voltage installations. The device is recommended to be installed in a place protected from direct weather conditions and high sunlight with temperatures in the range of -10 °C to +50 °C.

The device is designed to work in Ethernet networks with a bandwidth of 10 Mb/s, 100 Mb/s or 1000 Mb/s (so-called Gigabit Ethernet). Connections between the extender and the network device should be made with a cable of category min. UTP CAT.5e.
