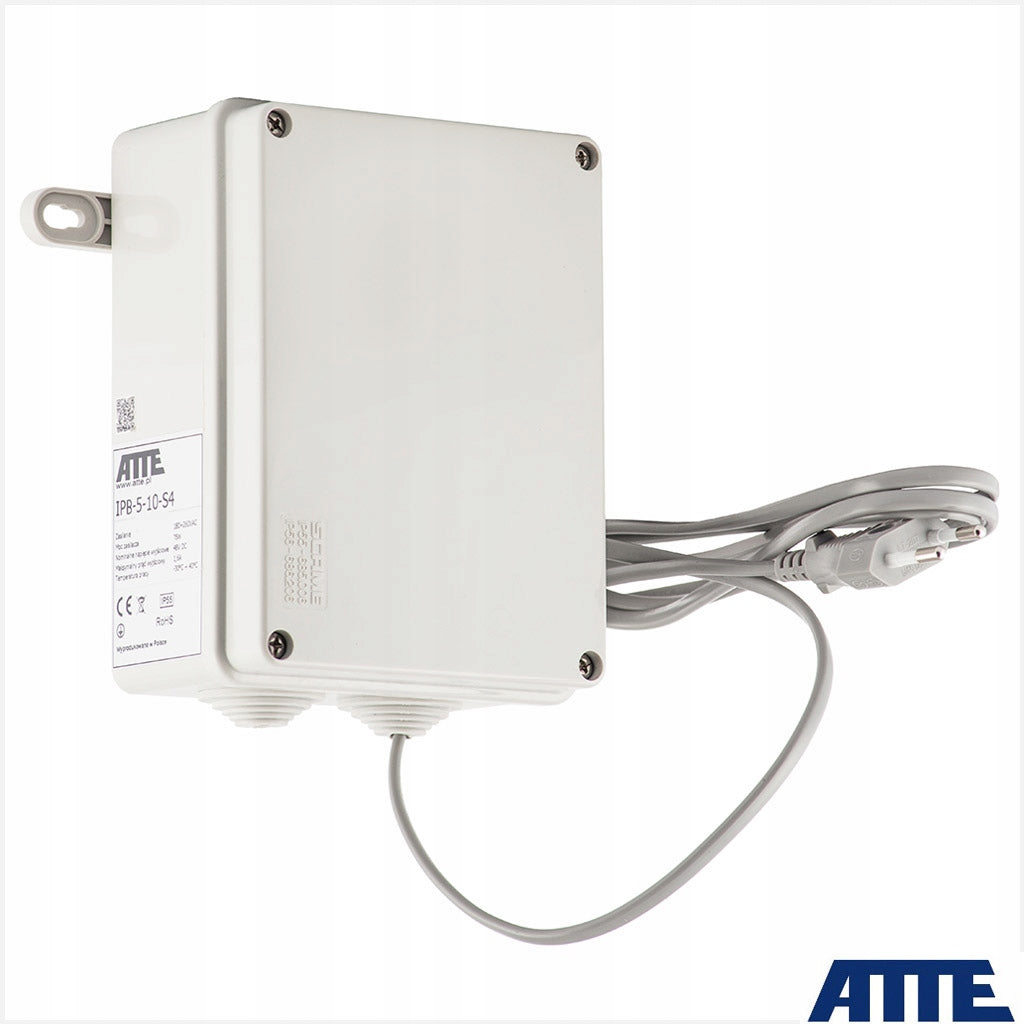

Išorinis PoE komutatorius ATTE IPB-5-10-S4, 6 jungtys

Trumpai apie prekę

Prekė: Išorinis PoE komutatorius ATTE IPB-5-10-S4, 6 jungtys. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: IPB-5-10-S4

New, improved version of IPB-5-10-S4!

In the new version with the letter A in the name, PoE power is transmitted after all pairs of UTP cable, which has a positive effect on reducing voltage drops. Increased cross-section and increased power supply voltage up to 55VDC allows you to maintain the correct voltage value at the end of longer tracks for higher power PoE receivers. The above properties are directly applicable when extending or branching lines using active PoE IP extenders, e.g. xPoE-3-11A and xPoE-4-11A-HS.

Differences between IPB-5-10-S4 and IPB-5-10A-S4

• Power Supply Voltage: 55VDC (previously 48VDC)
• Power supply: 90W (previously 75W)
• PoE power supply: transmitted after 4 pairs UTP twisted pair (previously after 2 pairs)

The IPB-5-10A-S4 was designed as a complete integrated power solution for small IP CCTV systems. The device is suitable for installation right out of the box, and the housing with IP55 resistance class gives freedom of installation inside or outside the building. High-quality plastic provides resistance to UV radiation and other adverse weather conditions.

PoE switch sets are designed to work with IP cameras and other network devices powered in the PoE 802.3at/af and PoE PASSIVE standard. The "Basic" version (IPB) means that the device belongs to the product line with basic functionality and as simple a design as possible.

Comments:

The ABOX-S4 case is dedicated exclusively to this product and is not available for sale separately.

The IPB-5-10A-S4 was designed as a complete integrated power solution for small IP CCTV systems. The device is suitable for installation right out of the box, and the housing with IP55 resistance class gives freedom of installation inside or outside the building. High-quality plastic provides resistance to UV radiation and other adverse weather conditions.

PoE switch sets are designed to work with IP cameras and other network devices powered in the PoE 802.3at/af and PoE PASSIVE standard. The "Basic" version (IPB) means that the device belongs to the product line with basic functionality and as simple a design as possible.

Comments:

The ABOX-S4 case is dedicated exclusively to this product and is not available for sale separately.

Most important features and functions:

• small size
• possibility of powering 5 PoE 802.3at/af or PASSIVE receivers
• possibility of switching off the power supply on selected PoE ports
• clear optical indication of power supply and data transmission status
• up to 40W of power per single PoE port (total 90W of power budget)
• easy and quick start-up without the need to configure parameters
• high efficiency of integrated power supply (>90%)
• additional screw connector makes it easy to "pick up" 55VDC power to other devices
• easy expansion and scaling of the system by attaching additional xPoE / IP and IPB / IPUPS series switches
• possibility of maintaining the supply of cables inside the housing
• cable entry through rubber cap mounted in the housing: 2x29mm
• possibility of introducing wires with earned plugs (after cutting the end cap)
• included power cable and 2 handles for mounting the housing without violating the degree of protection IP55

Technical data:

• PLAN ports:

  6 RJ45 10/100Mbps ports (auto MDI-MDIX, auto-negotiation)

  5 x PoE, 1 x UPLINK

• Port 1/2 Functions:

  LAN1 ... LAN5:

  PoE OUTPUT (power supply for receivers): PASSIVE (up to 40W), 802.3at (up to 30W), 802.3af (up to 15W)

  PoE PINS: 1.2 (V-) 3.6 (V+) 4.5 (V+) 7.8 (V-)

  LAN6:

  UPLINK (no PoE power)

• Port functions 2/2:

  CON2 (+) (-):

  Power output 55VDC

  CON1 AC_IN:

  Power supply 230VAC

• Efficiency: 93% @90W
• Output voltage: 55V +/- 2%, available on CON2 screw connector
• Power supply: 90W - continuous
• Power supply voltage: 190 ... 260 VAC, 50 Hz
• Power supply input protection:

  Fuse fuse immediate 3,15A

  Overvoltage protection

• Power supply output protection:

  Electronic overload protection at level 3A (automatic return after short circuit)

  Overvoltage protection

• Power supply thermal protection: TSD (thermal shutdown) 130°C - requires power supply restart
• Port protection:

  LAN 1 ... LAN 6

  Overvoltage protection

  LAN 1...LAN 5

  Short-circuit protection 0,75A @25°C, 0,45A @50°C (requires power restart)

• Working signal:

  LED_AC (white) - AC

  mains voltage

  LED PWR (white) - DC

  LED LAN 1 ... LAN 6 (green) - link and data transmission

  LED in RJ45 LAN 1 connectors ... LAN 5 (red) - PoE power supply on port

• Power control on ports:

  PoE jumpers (LAN 1 ... LAN 4):

  PoE DISABLED - no jumper (LED inside the port does not light up)

  PoE ATTACHED - jumper attached (LED inside the port lights up)

  LAN 5 - no power control (PoE always present)

• Housing design:

  Housing ABOX-S4

  Halogen-free, UV-resistant material

  Gray color (RAL7035)

  Mounted rubber caps 2 x 29 mm

• Housing mounting: Wall-mounted, mounting brackets
• Degree of protection: IP55
• Working temperature: -25 ... +50°C
• Dimensions (S x W x G): 110 x 160 x 70 mm
• Weight: 0,43 kg

Designed and manufactured in Poland.
