Išorinis diskų įrenginys Terramaster D4-320U, 4 HDD/SSD, USB-C 10Gbps

Trumpai apie prekę

Prekė: Išorinis diskų įrenginys Terramaster D4-320U, 4 HDD/SSD, USB-C 10Gbps. Kategorija: USB atmintinė.

• Gamintojas: Master
• Modelis: D4-320U
• Talpa: up to 512 MB
• Spalva: multicolor

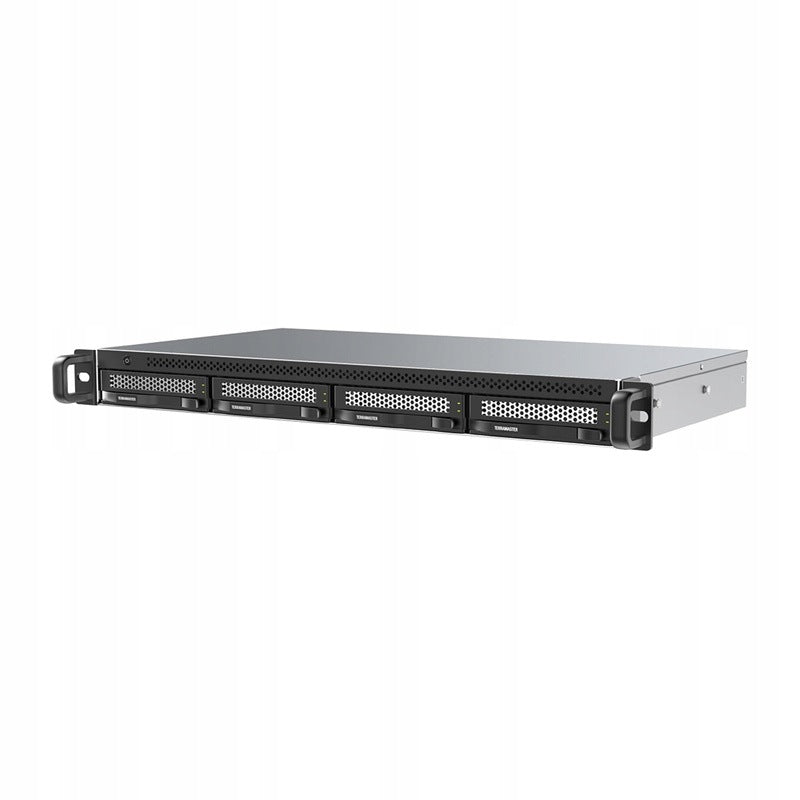

TerraMaster D4-320U is a powerful DAS enclosure, equipped with 4 bays for SATA HDDs and SSDs, designed to expand the storage space of servers, workstations and NAS devices. Thanks to the USB 3.2 Gen 2 Type-C interface (up to 10 Gbps), the device provides fast data access and transfers up to up to 1016 MB/s. The enclosure supports up to 96 TB of capacity, works with Windows, macOS, Linux, Proxmox, TrueNAS and Unraid systems, and its compact design with a depth of only 241 mm allows for convenient installation even in small server cabinets.

✅ Advantages:

✔ Powerful capacity up to 96 TB – four bays support SATA drives up to 24 TB each, providing ample space for files and backups.

✔ Superfast transfer up to 1016 MB/s – USB 3.2 Gen 2 Type-C (10 Gbps) connector allows instant data reading and writing.

✔ Wide system compatibility – Plug & Play support for Windows, macOS, Linux and Proxmox, TrueNAS and Unraid platforms without installing drivers.

✔ Compact 1U server design – housing with a depth of only 241 mm is ideal for easy installation in small RACK cabinets.

⚙ Specification:

• Manufacturer: TerraMaster
• Model: D4-320U
• Number of bays: 4
• Supported drives: 3,5" SATA HDD, 2,5" SATA HDD, 2,5" SATA SSD
• Maximum capacity: 96 TB (4 × 24 TB)
• Host interface: USB 3.2 Gen 2 Type-C
• Interface bandwidth: up to 10 Gbps
• Maximum transfer speed: up to 1016 MB/s
• Single SSD read speed: up to 560 MB/s
• Supported file systems: NTFS, APFS, Mac OS, FAT32, exFAT, EXT4
• Noise level: 26,7 dB(A)
• Power supply: 72 W
• Dimensions: 440 × 241 × 45 mm
• Net weight: 2,7 kg
• Supported systems: Windows, macOS, Linux

⭐Included:

• TerraMaster D4-320U Enclosure
• Power supply
• Power cord
• USB-C to USB-C 10 Gb/s (0,8 m) cable
• USB-A to USB-C 10 Gb/s (0,8 m) cable
• Set of mounting screws
• Quick Start Guide
• Warranty card

⚙ More space for data without infrastructure replacement⚙

The D4-320U allows you to easily increase the available storage space without having to replace existing servers or arrays. Four bays support 3,5-inch SATA HDDs, 2,5-inch HDDs and 2,5-inch SSDs, so the user can choose the media according to their needs. With a maximum capacity of 96 TB, this device is perfect for archiving data, storing backups, and working with large file collections. This solution is designed for businesses and users who need scalable storage space in a compact form factor.

⚙ Data transfer up to 10 Gb/s⚙

The enclosure uses a USB 3.2 Gen 2 Type-C interface, which provides bandwidth of up to 10 Gbps. In tests with four drives, the actual read and write speeds reached up to 1016 MB/s, which allows you to efficiently copy large amounts of data and handle demanding tasks. With a single SSD, the transfer can reach up to 560 MB/s, ensuring fast work with documents, media and backups. High efficiency translates into shorter lead times for daily operations and greater comfort of work.

⚙ Wide compatibility and support for multiple systems⚙

The enclosure works with Windows, macOS and Linux, as well as popular server and virtualization platforms such as Proxmox, TrueNAS and Unraid. Plug & Play eliminates the need to install drivers, so your device is ready to go as soon as you plug it in. The set includes USB-C to USB-C and USB-A to USB-C cables, making it easy to integrate with a variety of computers and servers. Additionally, compatibility with USB 3.0, USB 3.1, USB 3.2, Thunderbolt 3 and Thunderbolt 4 ports provides great flexibility when expanding your infrastructure.

⚙ Memory expansion for TerraMaster⚙ NAS

The D4-320U has been optimized to work with TerraMaster NAS servers equipped with TOS 5.1 or later. After connecting the device via USB, it is possible to create additional memory pools and expand the available space for data. This solution allows you to develop a data storage environment as your business needs grow without having to invest in more servers. This is a convenient way to increase the capacity of your existing NAS system.

⚙ Stable and quiet operation for a long time⚙

Three fans equipped with an intelligent temperature control system are responsible for efficient cooling. Automatic speed adjustment allows you to maintain optimal disk operating conditions even during heavy loads. The noise level of about 26,7 dB(A) means that the device can also work in an office environment. The disk sleep function also helps to reduce power consumption during periods of inactivity.
