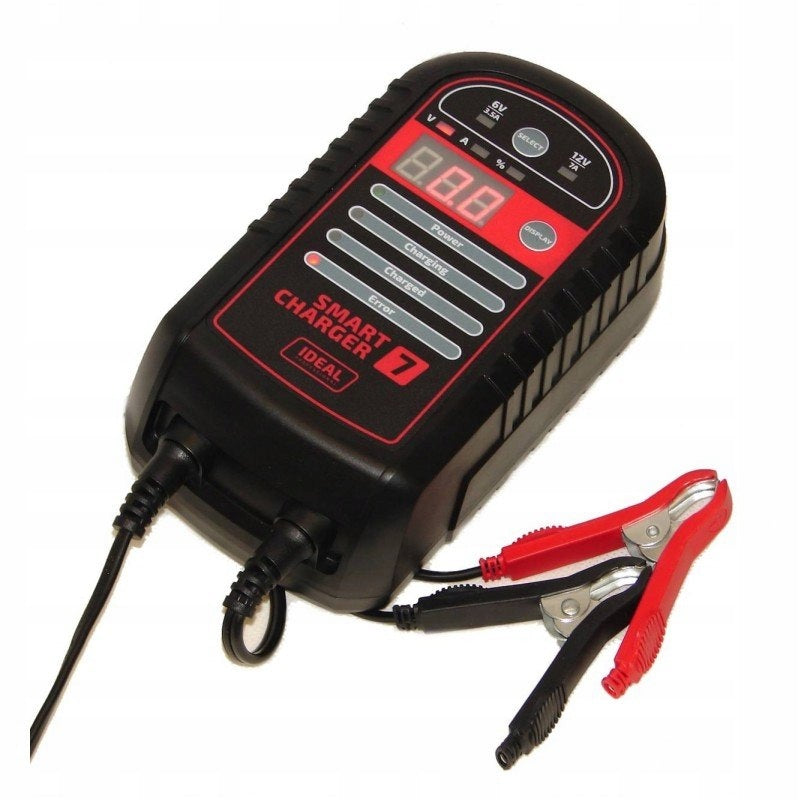

Išmanusis lygintuvas įkrovikliui SMART CHARGER 7, 2 vnt.

Trumpai apie prekę

Prekė: Išmanusis lygintuvas įkrovikliui SMART CHARGER 7, 2 vnt.. Kategorija: Baterijų įkrovikliai.

• Gamintojas: IDEAL
• Modelis: Smart Charger

SMART CHARGER 7 SMART CHARGING RECTIFIER

BW SMART7

TECHNICAL DATA:

Charging Voltage6V / 12V

Charging Current6V- 3.5A / 12V - 7A

Rated battery capacity Ah 15h (min/max)1.2—30AH (6V), 14—220Ah (12V), maintenance charging up to 300Ah

Rated charging current EN 60335-2-296V- 3.5A / 12V - 7A

Rated supply voltage230V 50Hz (1ph)

Weight0,86 kg

PERFORMANCE CHARACTERISTICS:

The rectifier enables automatic charging of all types of lead-acid batteries:

- WET wet-acid,

- Gel gel,

- MF maintenance-free,

- AGM with fiberglass mat,

of free flow of electrolyte, intended for motor vehicles (petrol and diesel), motorcycles, motor boats, etc.

Power cord length 180 cm, pole wire length 180 cm.

The 7-step charging process ensures optimal battery charging conditions. The automatic control system will adjust each of the 7 charging stages to properly charge the battery:

- STAGE 1 - diagnostics - analyzes the battery and checks whether it can accept charging current, prevents charging the damaged battery

- STAGE 2 - pre-charging - low voltage batteries are pre-charged with low current, this ensures longer battery life

- STAGE 3 - soft start - rectifier gradually increases the charging current from reaching full charging current

- STAGE 4 - CC1, CC2, CC3 (Constant Current) - fast charging. Charging current is set automatically depending on the state of charge of the battery

- STAGE 5 - CV (Constant Voltage - constant voltage charging) - charging to a voltage of 14.6V. Designed to charge batteries almost fully charged. Will finish charging the battery when reaching 14.6V

- STAGE 6 - Resting - completion of the charging process when the battery is fully charged

- STAGE 7 - Restoring - automatic battery monitoring. The charging process will resume after the voltage drops on the battery below 12.8V (for 12V batteries).

The rectifier housing has a protection rating of IP 65 (splash-proof and dustproof).

Rectifiers have a microprocessor control system, LEDs indicating the operating status of the rectifier:

- SELECT switch of charging voltage 6/12 V depending on the rated voltage of the battery 3.5A - 6V and 7A - 12V

- LED Power - signals the connection of the rectifier to the mains

- LED Charging - signals the charging stage of the battery

- LED Charged - signals the end of charging

- Error LED - signals battery connection error, lack of battery recognition or incorrect selection of charging voltage.

Depending on the choice of functions, the digital display may indicate:

- V - battery voltage

- A - charging current supplied by the rectifier to the battery. The display will return after 5 seconds to display the battery voltage

- % - the degree of charge of the battery. The display will return after 5 seconds to display the battery voltage.

They have protection:

against short-circuiting of poles,

overload and reverse polarity,

thermal protection in case of overheating of the rectifier

protection against sparks at rectifier outputs +/-
