IP vaizdo kamera TIANDY TC-C385N, 4 Mpx, 2,8 mm, panoraminė, spalvota

Trumpai apie prekę

Prekė: IP vaizdo kamera TIANDY TC-C385N, 4 Mpx, 2,8 mm, panoraminė, spalvota. Kategorija: IP kameros.

• Gamintojas: Tiandy
• Modelis: TC-C385N 2ANA-28

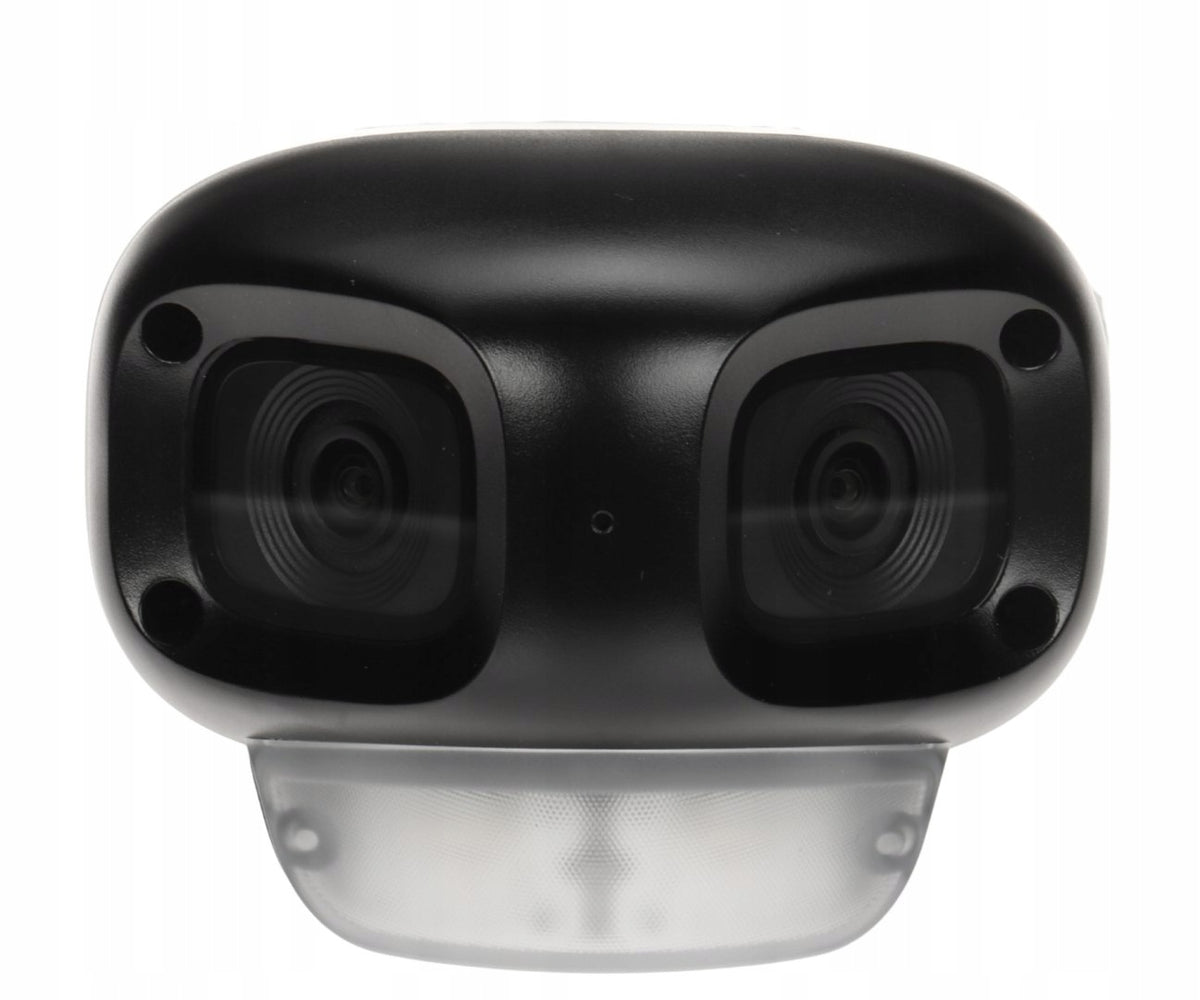

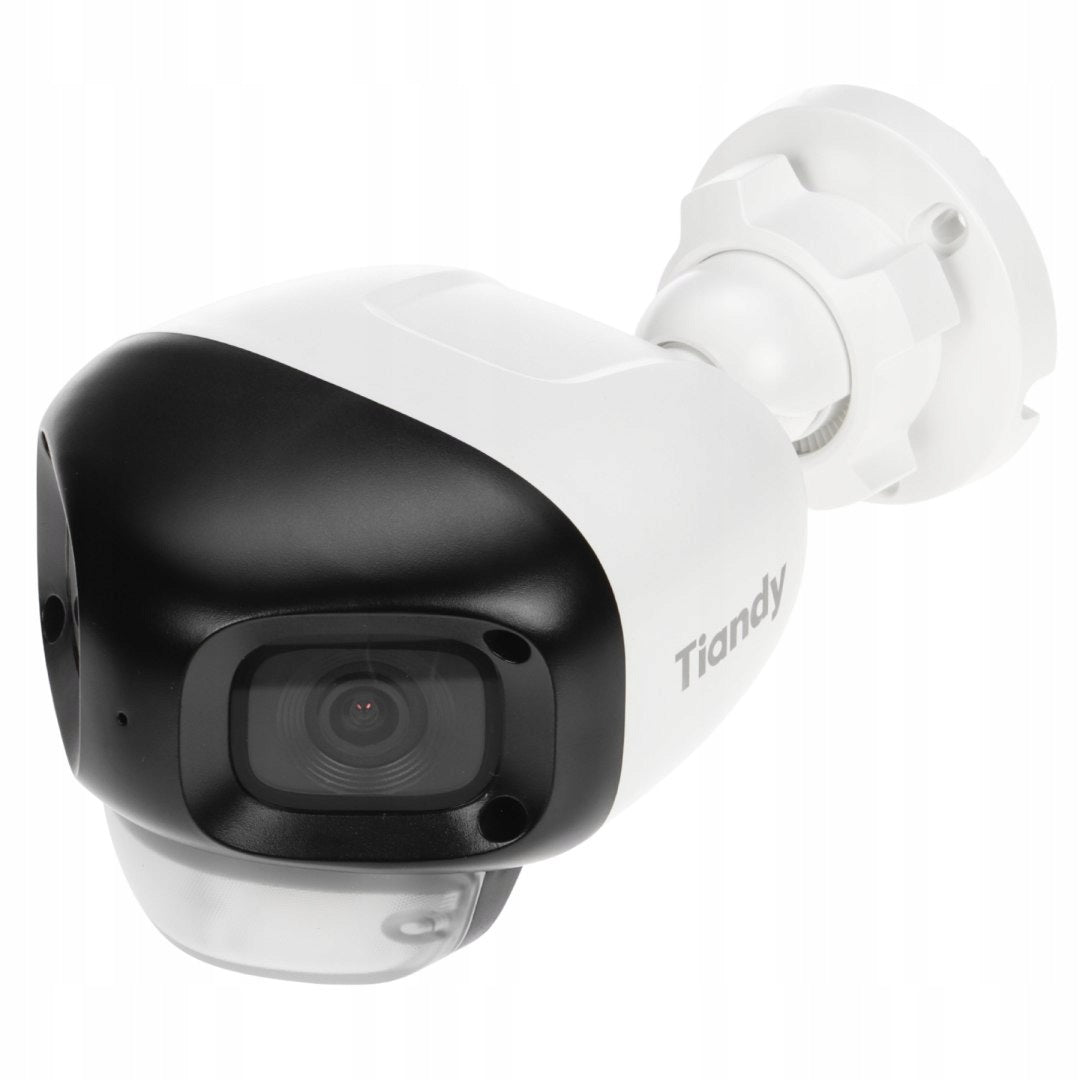

IP CAMERA TC-C385N 2ANA-28 PANORAMIC Color Maker - 4 Mpx 2 2.8 mm TIANDY

Tiandy TC-C385N 2ANA-28 is an external IP camera with a resolution of 4 MP, equipped with a wide-angle 2,8 mm lens. It provides clear images both day and night thanks to infrared range up to 50 m and white light up to 30 m. The built-in microphone allows you to record sound, and intelligent detection of people and vehicles helps reduce the number of false alarms. The camera can be powered by PoE or 12 V DC, and the IP67-rated housing allows for safe outdoor operation in harsh weather conditions.

PoE power capability, according to 802.3at standard makes the device even more versatile and easier to install

The range of the illuminator given by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e. scene reflection coefficient)

Standard:

IP

Resolution:

2560 x 1440 - 4 Mpx

Transducer:

2 x 1/3" Progressive Scan CMOS

Lens:

2 x 2.8 mm

Viewing angle:

180 °

IR illuminator range:

50 m

White light illuminator (LED) range:

30 m

Sensitivity:

0.02 Lux / F1.6 (colour)

Memory card slot:

RS-485 interface:

Image compression method:

S+265 / H.265 / H.264B / H.264M / H.264H

Emergency Inputs/Outputs:

Audio:

• Built-in microphone,
• Audio transmission over the network

Main stream transmission speed:

20 fps @ 4 Mpx

Interface:

10/100 Base-TX (RJ-45)

WEB Server:

Built-in

Max. Number of users online:

2

ONVIF:

Access from mobile phone:

• Port: 3000 or cloud access (P2P)
• Android: Free EasyLive Plus App
• iOS (iPhone): Free EasyLive Plus App

Access from PC: Port: 3000 or access via cloud (P2P) -PC: Free Easy 7 VMS App Default IP Address:DHCP or 192.168.1.2 Default Administrator login/password: admin / -The administrator password should be set at the first start of Access ports via the web:80, 443, 3000, 3001, 3002, 23002 Mobile application access port: 3000,3001 Access ports via PC application: 3000, 3001 ONVIF port: 80 Selected functions:

• D-WDR - Wide range of lighting dynamics
• 3D-DNR - Digital Noise Reduction in Images
• F-DNR (Defog) - Noise reduction associated with precipitation
• BLC/HLC - compensation of background light / strong light
• AGC - Automatic image gain adjustment
• OSD - the ability to apply subtitles on the screen
• Day/night mode
• Ability to change resolution, quality and bandwidth
• classification of people and vehicles

Power supply:

• PoE (802.3at)
• 12 V DC / 660 mA

Power Consumption:

• ≤ 9 W @ PoE
• ≤ 7.5 IN @ 12 V DC

Housing:

Compact - Metal

Color:

White

Leak-proof class:

IP67

Mechanical protection class:

Operating Temperature:

-30 °C ... 60 °C

Weight:

0.5 kg

Dimensions:

193 x 114 x 90 mm

Supported languages:

Polish, English, Spanish, Italian, Turkish, Russian, Thai, French, Arabic, Vietnamese, Portuguese, Japanese

NDAA Certificate:

Manufacturer / Brand:

TIANDY

CE

Manufacturer's data sheet EN

Data act

Specifications
