IP vaizdo kamera Hikvision DS-2CD1347G3-LIU, 2.8 mm

Trumpai apie prekę

Prekė: IP vaizdo kamera Hikvision DS-2CD1347G3-LIU, 2.8 mm. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD1347G3-LIU

500.68

69541

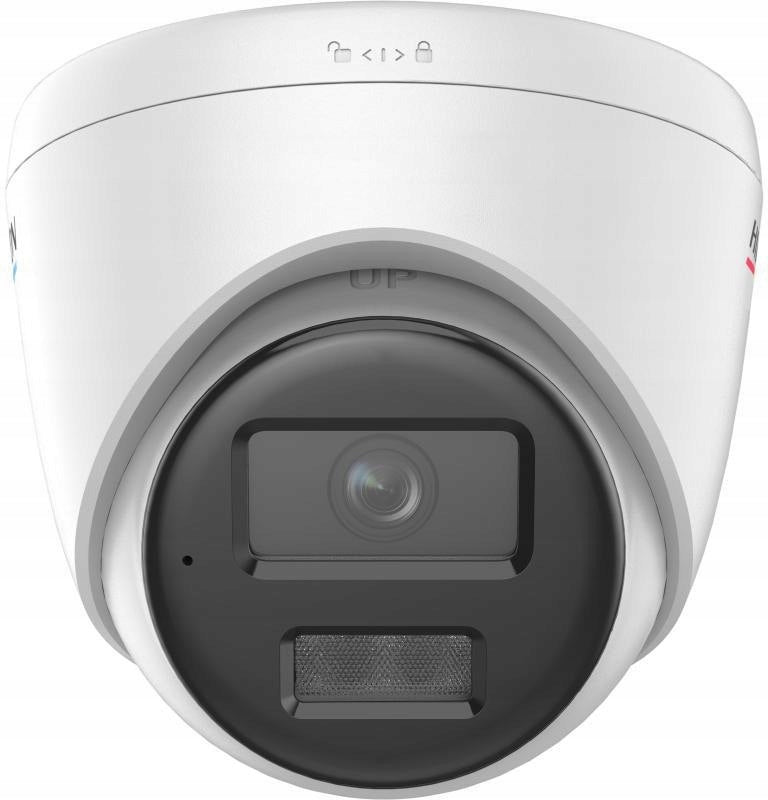

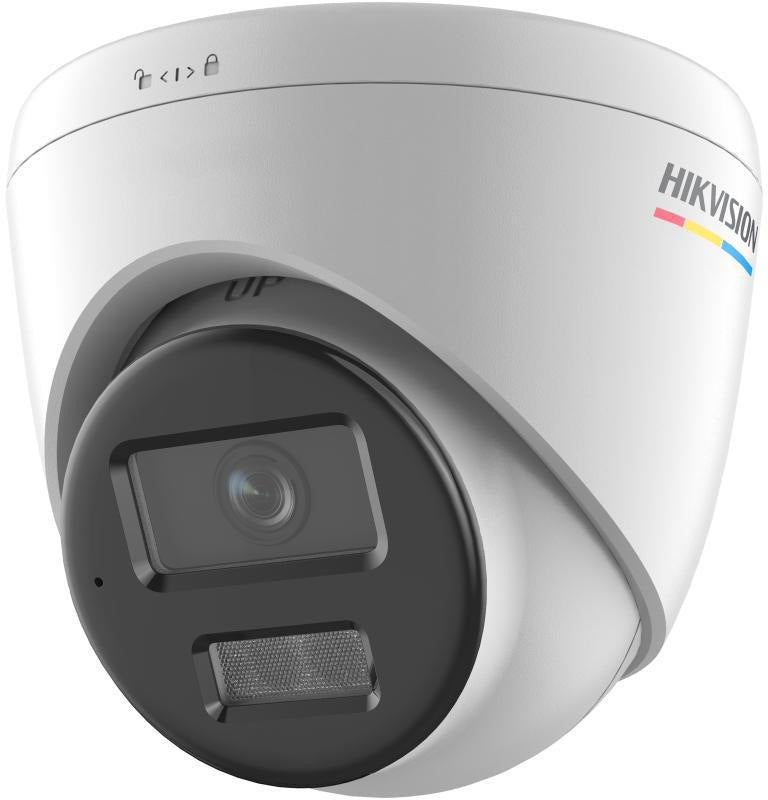

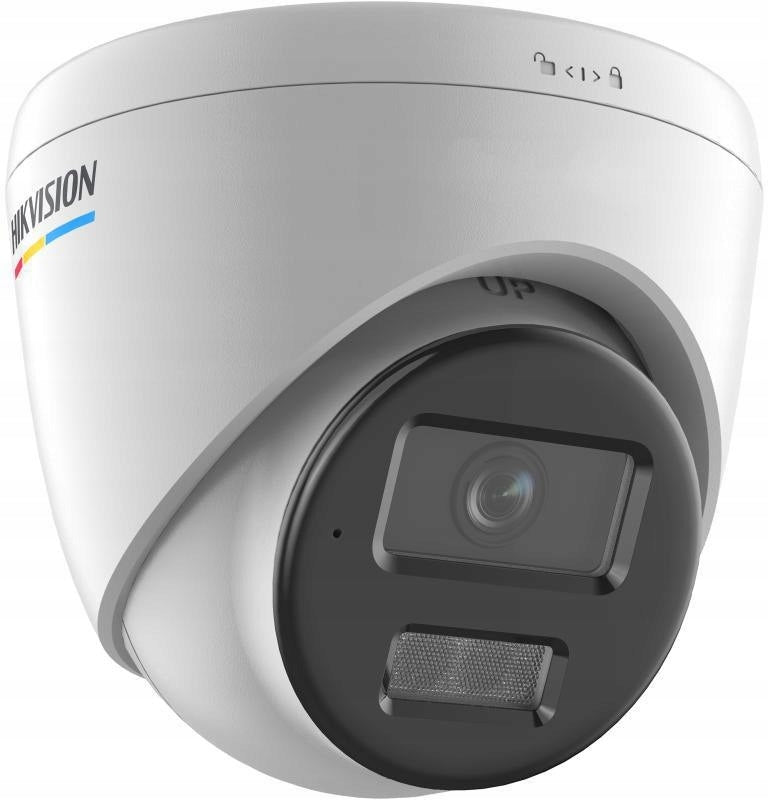

Hikvision DS-2CD1347G3-LIU IP camera (2.8mm)

A Value series turret network camera designed for modern IP surveillance systems. The model uses next-generation image technologies that provide high detail, intelligent event analysis and effective night operation . Thanks to its compact housing and IP67 protection class, it is suitable for installation both indoors and outdoors.

🎥 Image quality

The device offers a resolution of up to 4 MP (2560 × 1440) , which allows you to record detailed video material. The CMOS sensor and bright F1.0 lens enable effective operation even in very low light conditions.

Image enhancement technologies:

• WDR 120 dB – equalization of scene brightness at high contrasts
• 3D DNR – noise reduction
• BLC / HLC – Backlight and Spotlight Correction

🌙 Night Work – ColorVu 3.0

The camera uses ColorVu 3.0 technology, which allows:

• obtaining a color image around the clock
• better detail reproduction (e.g. color of clothes, vehicles)
• improving the identification of objects in the dark

Additionally, the Smart Hybrid Light system automatically manages lighting:

• IR (infrared) mode
• white light mode
• hybrid mode

The lighting range is up to 30 meters .

🧠 Intelligent image analysis

The Motion Detection 3.0 technology used ensures:

• motion detection with human/vehicle classification
• significant reduction in false alarms
• stable operation in changing environmental conditions

The system enables automatic response to events:

• recording record
• sending a notification
• taking a photo

🔊 Sound

The camera has:

• built-in microphone
• noise filtration

This allows for simultaneous recording of image and sound.

💾 Saving and archiving

• microSD card support up to 512 GB
• recording capability:

The camera can work autonomously or in a system with a recorder.

🌐 Network and Compatibility

The device supports a wide range of network protocols and the ONVIF standard, which enables integration with various monitoring systems.

Remote access is possible via:

• Hik-Connect mobile application
• iVMS computer software

🛡 Housing and operating conditions

• tightness class: IP67
• resistance to dust, water and weather conditions
• operating temperature range: from -30°C to +60°C

📦 Application

Camera designed for monitoring:

• single-family houses
• properties and driveways
• small businesses and shops
• warehouses and halls
• parking lots and outdoor areas

✅ Summary

The model is distinguished by its combination of:

• color night image (ColorVu 3.0)
• intelligent motion analysis (Motion Detection 3.0)
• automatic lighting (Smart Hybrid Light)

This ensures effective and modern monitoring in various lighting conditions, while reducing false alarms and ensuring high-quality recordings.

Technical specifications

Model

DS-2CD1367G3-LIUF/SL(2.8mm)

Image sensor

1/2.4" Progressive Scan CMOS

Maximum resolution

3200 × 1800

Minimal lighting

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with illuminator

Shutter speed

1 s to 1/100,000 s

Day/Night

IR cut-off filter

Angle adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens type

Fixed focal length lens, 2.8 mm

Focal length and field of view

2.8mm: horizontal FOV 109°, vertical FOV 60°, diagonal FOV 130°

Lens mount

M12

Aperture type

Constant

Stop

F1.0

Depth of field

2.8 mm: 1.9 m to ∞

DORI

2.8 mm: D: 68 m, O: 27 m, R: 13 m, I: 6 m

Illuminator

Illuminator type

IR, white light

Illuminator range

Up to 30 m

Intelligent lighting

Yes

IR wavelength

850 nm

Video

Main stream

50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Auxiliary stream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video compression

Main stream: H.265+/H.265/H.264+/H.264, Sub stream: H.265/H.264/MJPEG

Video bitrate

32 Kbps to 16 Mbps

H.264 type

Baseline Profile, Main Profile, High Profile

H.265 type

Main Profile

Rate control

CBR, VBR

Region of Interest (ROI)

1 fixed region for main and sub streams

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio

Audio type

Mono sound

Audio compression

G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC

Audio bit rate

64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)

Audio sampling rate

8 kHz / 16 kHz

Ambient noise filtration

Yes

Network

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP

Simultaneous live viewing

Up to 6 channels

API

ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK

Users/Host

Up to 32 users

3 user levels: administrator, operator, user

Security

Password protection, complex password, watermark, basic and digest authentication for HTTP, WSSE and digest for ONVIF, security audit log, host authentication (MAC address)

Client

iVMS-4200, Hik-Connect

Internet browser

Live preview with plugin: IE 10, IE 11

Local Service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image settings

Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or browser

Day/night switching

Day, night, car, schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image enhancement

BLC, HLC, 3D DNR

Privacy Masks

4 programmable polygon privacy masks

Interface

Ethernet interface

1 RJ45 10M/100M auto-adaptive Ethernet port

Local memory

built-in memory card slot, supports microSD/microSDHC/microSDXC up to 512 GB

Built-in microphone

Yes, 1 built-in microphone

Built-in speaker

max. power consumption 2 W, max. sound pressure level: 10 cm: 101 dB

Audio

ON

Alarm

ON

Reset button

Yes

Events

Basic events

Motion detection (supports triggering alarm for specific target types: person and vehicle), video tampering alarm, exception

Related activities

saving to a memory card, sending to FTP, starting recording, notifying the monitoring center, sending an e-mail, taking a photo

General

Power supply

12 VDC ± 25%, 0.57 A, max. 6.84 W, Ø5.5 mm power connector, reverse polarity protection, PoE IEEE 802.3af Class 3, max. 8.3 W

Material

Metal and plastic

Dimensions

Ø110 mm × 102.7 mm

Package dimensions

150 mm × 150 mm × 141 mm

Mass

Approx. 425 g

Weight with packaging

Approx. 615 g

Storage conditions

-30 °C to 60 °C, humidity ≤ 95% (non-condensing)

Start-up and operating conditions

-30 °C to 60 °C, humidity ≤ 95% (non-condensing)

Tongue

English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish , German

General functions

Heartbeat, mirroring, flash log, password reset via email, password protection, anti-banding

Flash light

white light

Certificates

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

Security

CB: IEC 62368-1:2014+A11

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Degree of protection

IP67: IEC 60529-2013
