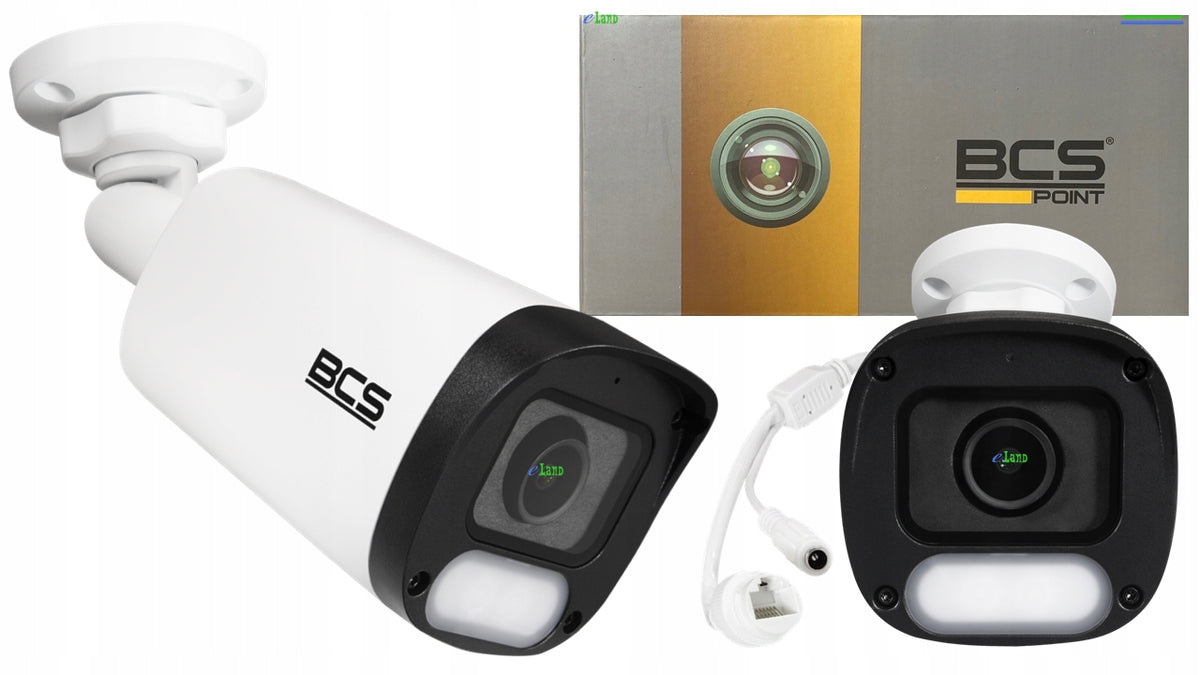

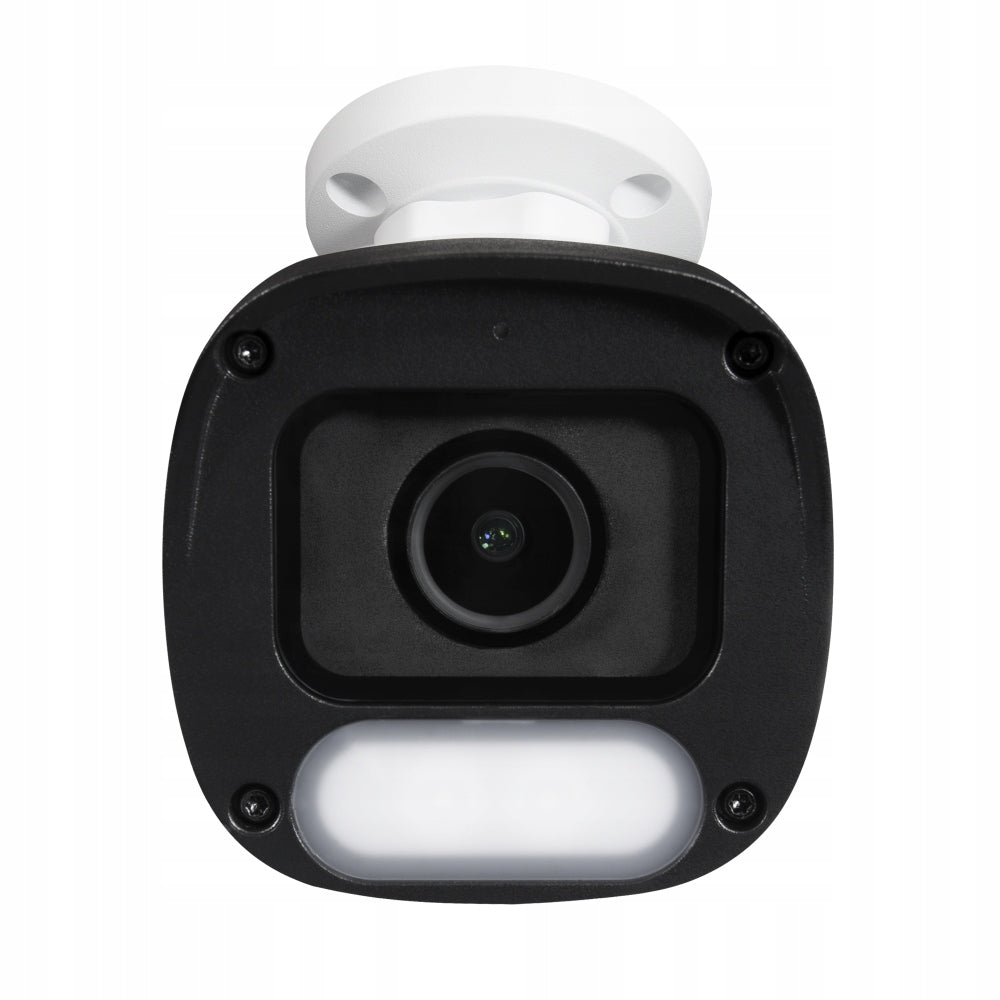

IP vaizdo kamera BCS-P-TIP24FCL3-Ai1, 4MP, 2.8 mm, su mikrofonu, NightColor

Trumpai apie prekę

Prekė: IP vaizdo kamera BCS-P-TIP24FCL3-Ai1, 4MP, 2.8 mm, su mikrofonu, NightColor. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-P-TIP24FCL3-Ai1

IP Camera, 4MPx, 2.8mm Lens, Microphone, NightColor

4Mpx horn camera with 2.8mm lens. The illuminator with a range of up to 30m allows the camera to present a good quality image in complete darkness. The WDR(120dB) function improves camera dynamics and extracts more detail from the contrasting observation plan, while the 2D/3D DNR functions allow for static or dynamic noise reduction in the image and higher quality images in low light conditions. The whole was enclosed in a sealed IP67 housing, and is powered by 12V DC or PoE direct current.

• 1/1.8" 4Mpx PS CMOS sensor
• NightColor technology
• Compliance with NDAA
• H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Functions AWB, AGC, BLC, HLC, WDR(120dB), 2D/3D NR
• Motion detection, privacy masks
• Intelligent functions: perimeter protection, object recognition
• Illuminator with a range of up to 30m
• 2.8mm F1.0 Lens
• IP67 Outdoor Enclosure
• Built-in microphone
• microSD memory card slot 256GB
• DC 12V/PoE 802.3af power supply
• Adapters suitable for camera: BCS-P-A81

The high sensitivity of the image sensor combined with the low aperture allows you to generate a color image even in night conditions. This makes it easier to read the event accurately.

Operation of the camera in night conditions is based on a high sensitivity transducer of 0.0003 lux and an aperture with a minimum value of F1.0. This ensures that as much light as possible enters and thus allows you to get a color image where the lighting is insufficient.

Characteristic of this type of cameras is a better contrast effect in low-light areas, so you can get more visual details, compared to standard devices.

• NDAA Compliant: Yes, National Defense Authorization Act
• Camera Type: Bullet
• Resolution: 4 Megapixel (4MP)
• Image Sensor: 1/1.8'' CMOS
• Scanning System: Progressive Scan
• Pixels: 2688(H)x1520(V)
• Lens Type: Fixed
• Focal Length: 2.8 mm
• Aperture: F1.0
• Focus: Fixed
• Iris: Fixed
• Digital Zoom: 16x
• Angle of View: Horizontal: 110.4°, Vertical: 60.5°, Diagonal: 115.2°
• DORI (Detect, Observe, Recognize, Identify): Detect: 43m / Observe: 17m / Recognize: 9m / Identify: 4m
• Camera Sensitivity: 0.0003Lux(F1.0, AGC on)
• Signal-to-Noise Ratio (S/N): 52dB
• White Balance: Auto / Manual
• Wide Dynamic Range (WDR): 120dB
• Backlight Compensation: BLC / HLC / WDR(120dB)
• Shutter Speed: Auto / Manual 1~1/100000s
• Gain Control: Auto / Manual
• Noise Reduction: 2D/3D DNR
• Defog: Digital
• Image Rotation: Mirror, Flip 0°/90°/180°/270°
• Number of Streams: 2
• Resolutions: 4MP(2688x1520)(2560x1440) / 3MP(2304x1296) / 2MP(1920x1080) / 720P(1280x720) / D1(720x576) / (640x360) / 2CIF(704x288) / CIF(352x288)
• Main Stream: 2688x1520 @ 25fps / 2560x1440 @ 25fps / 2304x1296 @ 30fps / 1920x1080 @ 30fps
• Sub Stream: 1280x720 @ 30fps / 720x576 @ 30fps / 640x360 @ 30fps / 704x288 @ 30fps / 352x288 @ 30fps
• Bitrate: 128kb/s~6144kb/s
• Video Compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Illuminator Type: White Light
• Illuminator Range: 30m (98ft)
• Night Color: Yes (Color Night Vision)
• Microphone: Yes, Built-in
• Audio Compression: G.711A / G.711U
• Storage: NAS(NFS)
• Memory Card Slot: MicroSD up to 256GB
• Supported Platforms: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, Android)
• Motion Detection: 4 Zones
• Privacy Masks: 4 Zones
• AI - Built-in Intelligent Functions: Built-in intelligent algorithms for image recognition and analysis
• AI - Perimeter Protection: Intrusion detection, Line crossing detection
• AI - Object Recognition: Human recognition for intrusion and line crossing, reduces false alarms.
• Network: RJ-45 10/100Mb/s
• Compliance: ONVIF(S/G/T)
• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
• Security: HTTPS, SSL, TLS, Digest Authentication, Login Authentication, Account Lockout, IP address filtering, ARP protection
• Power Supply: 12V DC / PoE(802.3af)
• Power Consumption: Max 2.8W
• Housing Color: White
• IP Rating: IP67 (Weatherproof)
• Surge Protection: 4kV
• Operating Conditions: -30°C~+60°C (-22°F~+140°F), max 95% RH
• Dimensions: 206x73x73mm (8.1x2.9x2.9 inches)
