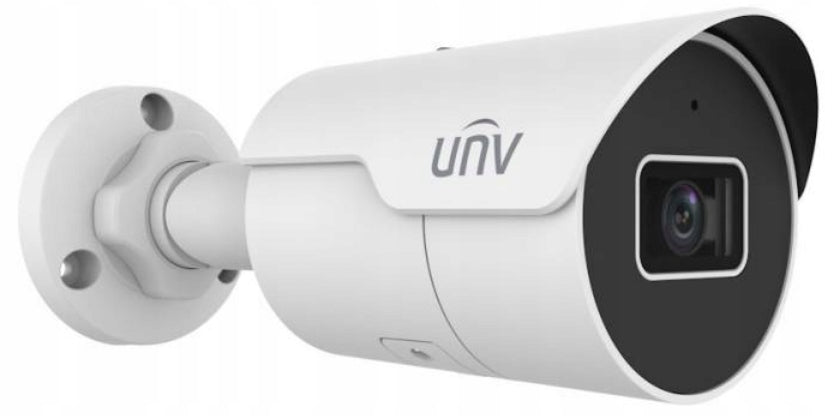

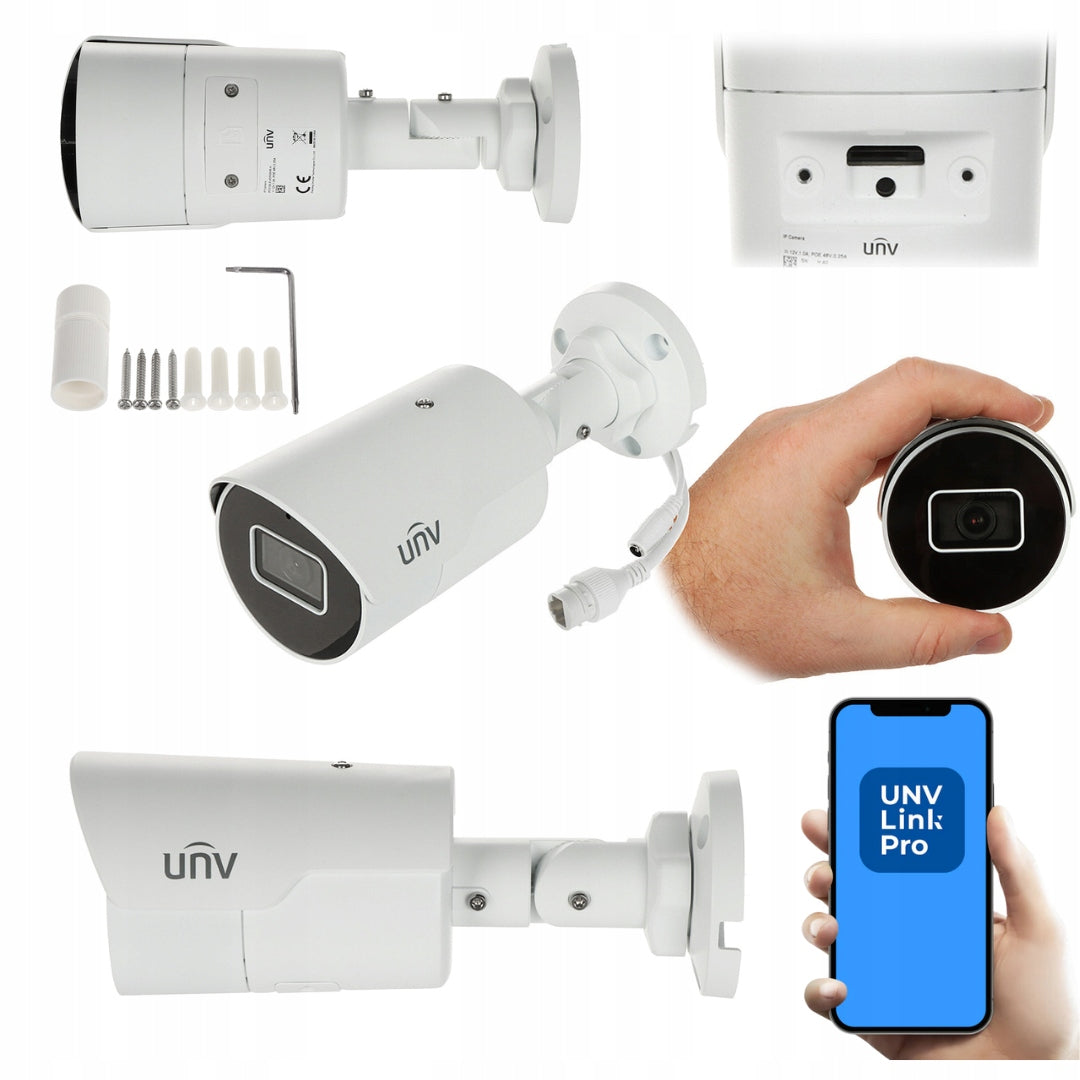

IP kamera UNIVIEW IPC2124LE-ADF28KM-H, 4MP, 2.8mm, IR50, WDR, su mikrofonu

Trumpai apie prekę

Prekė: IP kamera UNIVIEW IPC2124LE-ADF28KM-H, 4MP, 2.8mm, IR50, WDR, su mikrofonu. Kategorija: IP kameros.

• Gamintojas: Uniview
• Modelis: IPC2124LE-ADF28KM-H

⭐ Why choose the Uniview IPC2124LE-ADF28KM-H camera

The Uniview IPC2124LE-ADF28KM-H camera combines image quality, reliability and EasyStar technology – the new standard in the Easy series. Thanks to the high-sensitivity CMOS sensor, the camera provides excellent images at night, with minimal lighting, and the Smart IR function automatically adjusts the backlight power, eliminating the overexposure effect.

The high dynamic range of the WDR 120 dB allows you to maintain details in scenes with contrasting lighting.

The IP67 enclosure makes it an ideal choice for outdoor installations, and the PoE technology makes installation much easier.

It is a model that combines simplicity of configuration, stability and professional capabilities – at an attractive price.

⭐ The most important features of the product

✅ 4 Mpx resolution (2560×1440 @ 25/30 fps. /s) – clear, crisp picture in QHD quality.

✅ 1/3" Progressive Scan CMOS sensor – high sensitivity and image detail.

✅ 2,8 mm lens – wide viewing angle, ideal for general monitoring.

✅ EasyStar technology – better color and detail reproduction in low light.

✅ Smart IR 30 m – automatic adjustment of IR backlight power, no X-ray effect.

✅ WDR 120 dB – effective compensation of strong light and shadows (e.g. at entrances, sites).

✅ Housing IP67 – full resistance to weather conditions, rain and dust.

✅ Support for motion detection, sabotage and image analysis (VCA).

✅ 12 V DC or PoE (802.3af) power supply – simple installation without additional cables.

✅ Support for EZView / EZStation / EZCloud applications – remote viewing and management. New UNV Link and UNV Link Pro apps (for installers)

⭐ Application

✅ External and internal monitoring of residential, office buildings, warehouses and shops.

✅ Ideal for IP CCTV installations in schools, hotels, production halls and public facilities.

✅ Works well as part of the Uniview / ONVIF system, works with NVRs from various manufacturers.

✅ With wide viewing angle and high sensitivity ideal for observing entrances, corridors, parking lots, gates and reception.

⭐ Application example – Case Study

Problem: The customer reported poor night vision and x-rays at the entrance to the warehouse.

Solution: The Uniview IPC2124LE-ADF28KM-H camera with EasyStar and Smart IR technology was used.

Effect: The image has gained a clear contrast and full color reproduction with lighting of 0,03 lx. Night monitoring has become useful and readable, without the “IR mist” effect.

⭐ Application and Software – EZView / EZStation / EZCloud

✅ EZView – mobile application (Android / iOS), which allows remote viewing of live image, event notifications, archive playback and control of PTZ cameras. The app automatically detects Uniview cameras on your network and connects to them via EZCloud without port forwarding.

✅ EZStation – a professional program for Windows and macOS, providing management of cameras, recorders, configuration, export of recordings and preview of multiple channels simultaneously.

✅ EZCloud – Univew cloud platform that allows secure access to the CCTV system from anywhere in the world. The connection is made automatically via QR code.

✅ The software also supports VCA analytics, alarms and push notifications, and all data is transmitted using AES and TLS encryption.

✅ UNV Link is a modern mobile application that develops EZView functionality, offering faster connection to cameras, better device management and simpler login via the Uniview Cloud account.

✅ Allows you to view multiple cameras at the same time, play recordings from a microSD card or recorder, as well as share access with other users.

✅ Supports AI (Intelligent Image Analysis) functions in Uniview cameras, including person detection, vehicles and VCA alarms.

✅ UNV Link Pro is a professional-grade application for integrators and administrators, offering full CCTV system management, firmware updates, network configuration and control of distributed devices in multiple locations.

✅ UNV Link Pro is designed for security companies, installers and administrators of large systems, providing quick access to all cameras and recorders from a single account.

User benefits:

✅ Quick access to cameras from your phone, tablet or computer.

✅ No need for network configuration and port forwarding.

✅ One application to support the entire Uniview system – cameras and recorders.

✅ Secure login and encrypted data transmission.

⭐ Frequently Asked Questions (FAQ)

Q: Does the camera work at night without additional lighting?

A: Yes, thanks to EasyStar and Smart IR technology, it provides very good visibility in low light – up to 30 m.

Q: Is the camera resistant to external conditions?

A: Yes, it has a protection class of IP67, which guarantees resistance to rain, dust and variable temperatures.

Q: Can I connect the camera directly to the PoE recorder?

A: Yes, the camera supports PoE (802.3af) and 12 V DC power.

Q: Does it work with third-party DVRs?

A: Yes, thanks to compliance with the ONVIF (S/G/T) protocol.

⭐ Technical specification

• Transducer: 1/3" Progressive Scan CMOS
• Resolution: 4 Mpx (2560×1440 @ 25/30 fps)
• Lens: 2,8 mm / horizontal viewing angle approx. 103°
• Sensitivity: 0,03 lx (colour), 0 lx (IR ON)
• Day/Night: ICR filter, automatic switching
• IR backlight: up to 30 m (Smart IR)
• Compression: H.265 / H.264 / Ultra 265
• WDR: 120 dB
• Power supply: 12 V DC ± 25% or PoE (802.3af)
• Power Consumption: < 6,5 W
• Protection class: IP67
• Operating temperature: –30 °C ~ +60 °C
• Dimensions: 160 × 70 mm
• Weight: 0,36 kg

⭐ Important information

✅ The camera can be mounted in a vertical or horizontal position (on the wall or ceiling).

✅ Recommended use with Uniview NVR3000 / NVR5000 series recorders.

✅ Supports Ultra 265 codec – unique Uniview technology that reduces bandwidth usage.

✅ Compatible with EZView, EZStation, EZCloud – free software manufacturer.

✅ Certificates: CE, FCC, RoHS, NDAA Compliant.

⭐ About the manufacturer

Uniview (UNV) is a pioneer of IP surveillance technology, operating in over 145 countries. The brand is known for its reliable CCTV systems and proprietary solutions such as Ultra 265 and EasyStar, which provide higher image quality with less data consumption.

Uniview focuses on safety, stability and user-friendliness, and EasyStar products are the perfect combination of premium quality and ease of use.

⭐ Summary – Uniview IPC2124LE-ADF28KM-H: professional 4 Mpx camera for demanding

The Uniview IPC2124LE-ADF28KM-H camera is a modern solution for IP CCTV systems.

It combines high image quality 4 Mpx, EasyStar technology, Smart IR, WDR 120 dB and IP67 resistance, offering reliable day and night performance.

With support for EZView, EZStation, and EZCloud, it provides full remote access and simple setup.

It is an ideal choice for installers and users expecting Uniview quality in a compact form.
