IP kamera PX-TI2028IR5DL/G, 2 Mpx

Trumpai apie prekę

Prekė: IP kamera PX-TI2028IR5DL/G, 2 Mpx. Kategorija: IP kameros.

• Gamintojas: IPOX
• Modelis: 2214G

Description

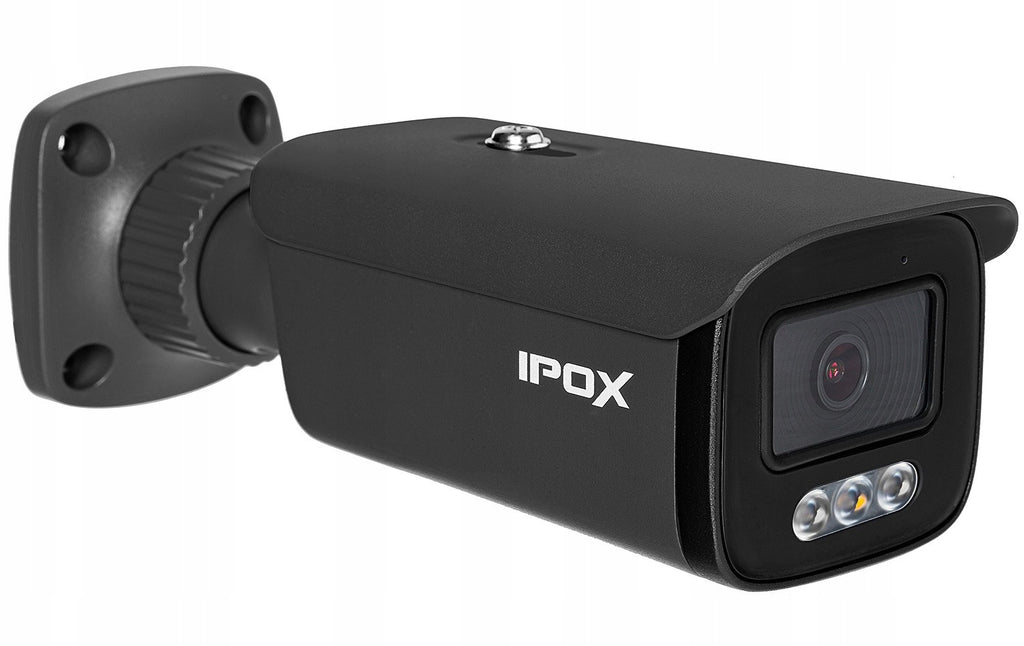

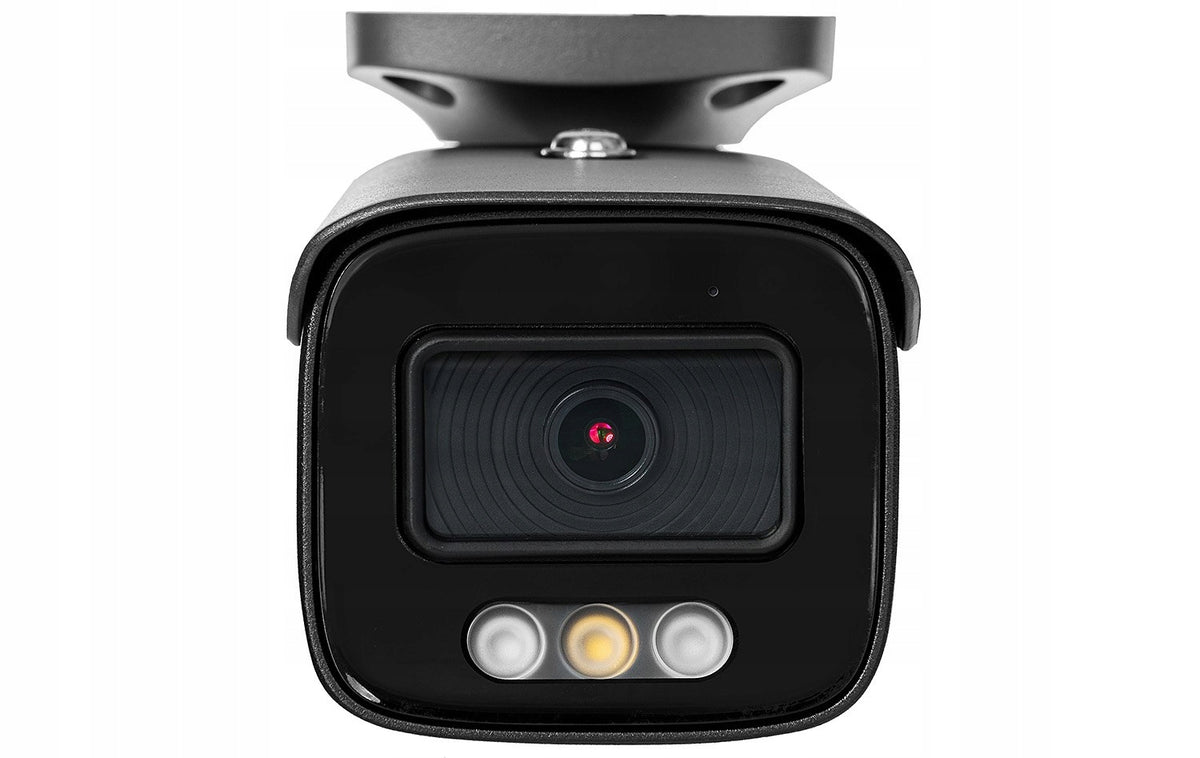

PX-TI2028IR5DL is a bullet camera by IPOX working in the technology of double illuminator so-called. Dual Light. In practice, the use of two types of LEDs in the camera - IR with infrared light and LED with warm white light allows you to get a traditional black and white image or color image at night. The device uses a CMOS sensor in the image capture process, which allows capturing recordings in 1920×1080 (2Mpx) resolution. The fixed focal length lens used in the device allows for quick adaptation of the camera without the need for additional interference from the user. The camera is equipped with basic AI functions that allow you to identify a person / vehicle after crossing a line or violating a zone.

FUNCTIONAL MENU

Management, programming of settings and operation of the IPOX IP camera takes place in a clear and transparent program managing the device, which is available from a web browser. Using the intuitive menu of the program, it is possible not only to test the cameras and the current preview of the recorded image, but it is also possible to set advanced parameters and functions of the device.

SMART DUAL LIGHT

The presented IPOX Light Explorer camera is equipped with Smart Dual Light technology, thanks to which it is possible to switch between different lighting modes in the camera. The use of a dual IR + LED illuminator with SMART technology allows you to turn on white light only if detected in the user-designated zone (up to 4 zones) of a human or vehicle. In the event that a person leaves the monitored area, the white light LED illuminator is automatically switched to IR illumination after a set time by the user.

COLOR IMAGE

The IPOX Light Explorer camera guarantees vivid images around the clock even in very low light conditions. This feature has a positive effect on safety and allows for accurate identification of people and property. The ability to capture detailed images in low light comes from a combination of a white light illuminator, and a photosensitive transducer. The use of these functions allows more light to enter the camera, making it possible to capture images in a full color palette with high brightness.

Image Correction Features in IPOX Camera:

• Protection of facilities
• Wide Dynamic Range (WDR)
• Region of Interest (RoI)
• Masking of light sources (HLC)
• Corridor function
• Masks of privacy
• Motion detection

Other features of the IPOX camera:

• PoE technology
• Connection of Https
• RTMP protocol
• H.265 compression

MAIN

Converter:1/2.8" 2MP Progressive Scan CMOS

Resolution :2Mpx, 1920 × 1080 pixels

Tenderness:

• 0.008 lux @ F1.6 (AGC ON)
• 0 lux @ IR LED ON

Lens: 2.8 mm @ F1.6

Angle of view:

• Horizontal: 107°
• Vertical: 56°
• Diagonal: 126°

Snapshot:1/3 ~ 1/100 000 s (automatic / manual)

Adjustment range:Panorama (pan): 0° ~ 360°; slope (tilt): 0° ~ 90°; rotation: 0° ~ 360°

DORI

Detection (25 px/m):41 m

Observation (63 px/m):16 m

Recognition (125 px/m):8 m

Identification (250 px/m):4 m

ILLUMINATOR

LED type:

• IR (Infrared)
• LED (white light)

Number of diodes:

• 2x IR LED
• 1x LED

Range:

• IR: 30~50m
• LED: 30~40m

Intelligent illuminator:Yes, switching from IR to LED illuminator when detecting human/vehicle/two-wheeler (motorcycle/bike) for 4 defined zones

White light backup time:10~300s

Smart IR:Yes

Automatic overexposure control function:Yes

White light intensity adjustment:1 ~ 100

Illuminator setting*:

3 illuminator modes (IR only, LED only, Smart - IR + LED):

1. LED(visible, white light) - during the day the illuminator remains off; turns on automatically after dark; this mode provides a color image at night

2. IR (invisible, infrared light) - after dark, the camera illuminates the infrared image; color image during the day, black and white at night

3. Smart IR + LED (default) - mode combining both types of illuminators; the camera illuminates the infrared image after dark and only when a person is detected in the image turns on the white light and switches to color mode

*To change the illuminator mode, go to Settings -> Stream -> Display -> Lighting type in the settings and select the appropriate option there


System:PAL (50 Hz) / NTSC (60 Hz)

Video compression:

• Main stream: H.265+ / H.265 / H.264+ / H.264
• Auxiliary flux: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Additional stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Processing resolution:

• 1920×1080 (2Mpx)
• 1280×720 (1Mpx)
• 704×576 (D1)
• 640×480 (VGA)
• 480×240
• 352×288 (CIF)

Processing speed and resolution (main stream):

• 50 Hz: 1 ~ 25 fps @ 1080p / 720p
• 60 Hz: 1 ~ 30 fps @ 1080p / 720p

Processing speed and resolution (auxiliary stream):

• 50 Hz: 1 ~ 25 fps @ D1/VGA/CIF
• 60 Hz: 1 ~ 30 fps @ D1/VGA/CIF

Processing speed and resolution (additional stream):

• 50 Hz: 1 ~ 25 fps @ D1 / 480×240 / CIF
• 60 Hz: 1 ~ 30 fps @ D1 / 480×240 / CIF

Bitrate:64 Kbps ~ 6 Mbps

Writing an image to a memory card*:

Recording video and audio from selected stream according to: schedule (24/7), from alarm events (motion detection), from intelligent analysis

Save photos to memory card*:

Recording of photos from auxiliary stream according to: schedule (24/7), from alarm events (motion detection), from intelligent analysis, cyclic download of photos (every 1 ~ 3600 s)

*Please note that the camera does not have a built-in battery. For the SD card recording function to work properly, the camera must have access to the Internet / NTP server or should be connected to an NVR; to synchronize the time.

Download photos:From any stream

Settings:AWB (manual 0 ~ 100), AGC (manual 0 ~ 100), BLC, HLC, MIR, FLIP, 3D DNR, WDR 120 dB, ROI, corridor mode (90° / 180° / 270°)

Adjustment:Saturation, brightness, contrast, color, sharpness, denoising

Flash filter:60 Hz / 50 Hz

Day/night mode:3 profiles (automatic, manual, schedule), 3 sensitivity levels, transition delay 2~120s

Configuration of video settings: 3 profiles (day, night, universal) with the possibility of setting a work schedule

AUDIO (DISABLED BY DEFAULT)

Compression:G.711A, G.711U

Built-in microphone:Yes

Microphone volume level:0 ~ 100

Line Input Volume Level:0 ~ 100

RTMP:

• Sampling rate: 8000 Hz
• Sampling: 16 bits
• Sound: mono

CONNECTORS

Ethernet:1x RJ-45 10Base-T/100Base-TX

Audio: 1x input (jack 3.5)

Memory slot:1x microSD/ microSDHC/ microSDXC slot up to 256 GB

Power supply:1x socket 5,5/2,1 on the cable

Reset button:1x

FUNCTIONS

Protocol support:Onvif Profile M (23.12)

Integration:API

Menu languages: English, Chinese, Simplified Chinese, Czech, French, Hebrew, Spanish, Spanish (Latin America), Japanese, Dutch, German, Norwegian, Polish, Portuguese, Russian, Romanian, Turkish, Hungarian, Italian

OSD: Date, camera name, watermark, ability to set your own text (1 line, 15 characters)

Online users: Max. 3 connections

Login lock: Yes, after 6 failed attempts

Password security: 3 difficulty levels and the ability to set the time after which you need to change the password to a new one (from 30 days to never)

Ability to disconnect the connection: Yes, from the administrator

Address filtering:IP, MAC

Notifications: IP address change, incorrect login, motion detection, sabotage, object protection, line crossing, intrusion detection (zone violations)

Video event alarm sustain time:1 s / 3 s / 5 s / 10 s / 20 s / 30 s / 60 s / 2 min

System alerts: Filled microSD card, microSD card error

Motion detection:Any number of zones, adjustable sensitivity 1~8, action schedule

Motion detection fields: 396 (22×18)

Privacy zones: 4 zones

ROI: 3 areas (level 1 ~ 10)

Prevention: Automatic / manual restart

MANAGEMENT

Browsers (Windows/macOS/Linux):Edge, Safari, Opera, Chrome, Firefox, etc. - plug-in interface (main stream preview max. 1080p), Internet Explorer - requires plugin installation

CMS (Windows/macOS): NVMS 2.0

Mobile devices (Android / iOS): IPOX PRO

SMART FUNCTIONS (TRADITIONAL ALGORITHM)

Basic:Protection of objects (detection of left/taken objects; 1 area), motion detection, exception (network disconnection, IP address conflict, illegal login, full microSD card, microSD card error), sabotage (detection of change: scene, color, blur)

DEEP LEARNING FUNCTIONS*

Motion detection:Motion detection based on object recognition (human/vehicle)

Perimeter protection (perimeter):Line crossing detection (4 lines), intrusion detection (4 zones) - all based on object recognition (human/vehicle)

Filtering false alarms:

• Filtering selected smart analytics alarms based on object recognition (human/vehicle)
• Target size filter for perimeter protection set separately for people and vehicles (min. width / height 1%; max. width / height 90%). Filter values are set the same for all active zones/lines

*Attention! The filter function is available separately for motion detection and only for one perimeter protection analysis function (enabling one will disable the other)

OTHER

Compliant with NDAA:Yes

Protection class:IP67

Mechanical resistance:IK10

Power Supply:12 V DC or PoE 802.3af

Power consumption:< 8 W with illuminator on< /p>

Moisture:< 95% (non-condensing)< /p>

Working temperature:-30°C ~ +60°C

Weight: approx. 680 g

Dimensions (L. /W. /H ): 218,1×79,5×70,4 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5904194158552
Parametry	Manufacturer code	2214G
Parametry	Brand	IPOX
Parametry	Model	2214G
Parametry	Batteries included	no
