IP kamera KENIK KG-5370TZAS-IL

Trumpai apie prekę

Prekė: IP kamera KENIK KG-5370TZAS-IL. Kategorija: IP kameros.

• Gamintojas: getfort
• Modelis: KG-5370TZAS-IL

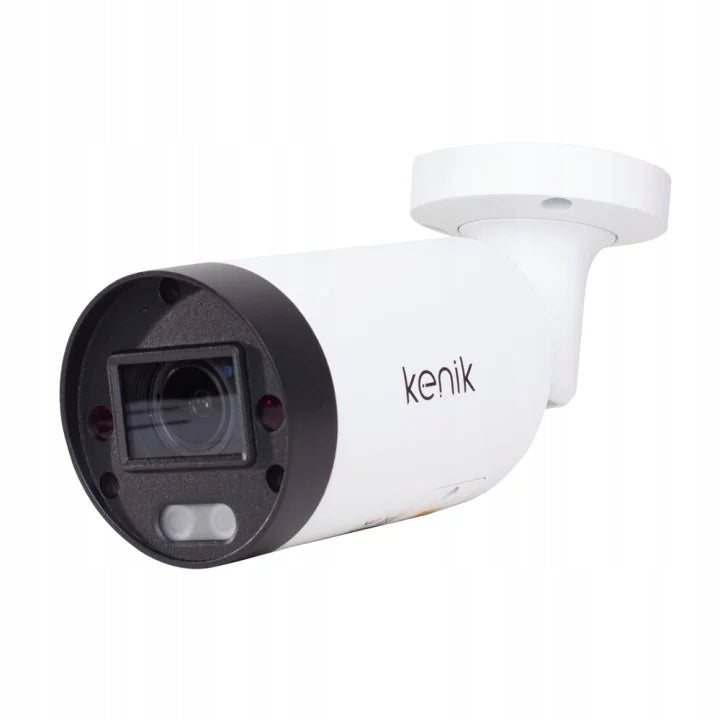

CAMERA IP KENIK KG-5370TZAS-IL

CAMERA IP KENIK KG-5370TZAS-IL

Key features:

• 5MPX 16:9 (2880x1620) at 25fps
• H.265+/H.264+ compression
• WDR (120dB), day/night (ICR), 3DNR, AWB, AGC, BLC
• 2.7-13.5mm (motozoom) lens
• Built-in microphone
• Headlamp Smart IR up to 70m
• White Light LED Smart Light
• MicroSD card reader up to 128GB
• Intelligent IVS image analysis: SMD + P.P. 2.0 (human/vehicle), line crossing, intruder detection, area entry, area exit, scene change detection, face detection
• Function Defog,ROI
• 3 streams
• Reset button
• Corridor mode
• Emergency I/O 1/1
• 1/1 audio I/O (Jack 3.5 jack)
• Dual power supply 12V DC/PoE (802.3af)
• Enclosure with protection class IP67
• Supports ONVIF 2.6 standard
• Mobile preview on smartphone (Android, iPhone)
• Free in Polish for registration on your computer

​

Purpose

The camera is designed for outdoor applications. The housing allows you to mount the camera both on the ceiling and on the wall. The camera will be used in monitoring: parking lot, playground, hall, square, state institutions, schools, etc.

Description

The Kenik IP camera is ideal for surveillance systems that require the highest image quality. The 5MPX transducer and advanced H.265+ compression ensure that many details are recognized both day and night. Modern infrared reflector with SMD LEDs ensures that the area is fully illuminated in the prevailing total darkness of the environment. What’s more, the user can use intelligent image analysis to increase the security of the protected object. Many other functionalities i.e. DEFOG, ROI, hardware WDR ensures that the image is as clear as possible, without distortion and allows you to identify people or objects. In addition, the camera can work in the cloud, and the connection is extremely simple. The user from anywhere in the world using his smartphone can check what is happening in the monitored facility. In addition, the Kenik camera uses Power over Ethernet (POE) power so that we do not have to lay two wires, because we only need twisted pair to connect the cameras with other devices in the network. A motozoom lens with a focal length of 2.7-13.5mm was used, which allows for remote adjustment of the zoom and change of the camera angle depending on the observed object.

SMD and Perimeter Protection 2.0

What are the differences in SMD + P.P 2.0 compared to standard image analysis :

▪ The detection accuracy (human and vehicle) is up to 99%.

▪ Small animals (cats, dogs) < 0,5%

▪ Large animals (cattle, horses, sheep) < 1%

▪ Human detection range is up to 30 meters per day

(The range at night will be smaller depending on the scene)

▪ Vehicle detection range is up to 50 meters

(Camera with fixed focusing 2,8 mm)

Based on the circuit protection function, the alarm is triggered only in the case of human or vehicle movement, which can save users the trouble of unwanted alarms.

STARLIGHT technology

The camera uses a high-sensitivity SONY Starvis sensor for good visibility even with minimal lighting. The STARLIGHT technology allows you to get a color image even in night conditions.

Intelligent Image Analysis (IVS)

A big advantage of the camera is the support for intelligent video analysis. Event detection was used in the case of: line crossing, intruder detection, entry into the area, leaving the area, scene change detection, face detection. . This increases the effectiveness of the monitoring system and the safety of the controlled facility.

​

Kenik Mobile Preview

Thanks to the free Kenik Mobile application, we have the ability to remotely view the image from the camera on your mobile phone. It supports such systems as: Android, iOS. This gives us the ability to control what is happening in the monitored facility from anywhere in the world. When connected in the cloud, simply enter the camera ID number and enjoy remote access to your device.

Working in the Kenik cloud

Each Kenik IP camera has the ability to connect via the cloud. Thanks to this solution, without complicated configuration, every user can easily connect to the camera and see the image. The service is free.

Mobile preview

Thanks to the free uCloud Cam application, we have the ability to remotely view the image from the camera on your mobile phone. It supports such systems as: Android, iOS. This gives us the ability to control what is happening in the monitored facility from anywhere in the world. When connected in the cloud, simply enter the camera ID number and enjoy remote access to your device.

​

VMS Pro software

VMS Pro is software that allows you to preview the image and manage the DVR on your computer. It allows you to connect several recorders located in different locations and preview the image from up to 128 cameras. In addition, creating an e-map makes it easier to browse and allows you to divide the system into zones. Support for up to 4 monitors at the same time will certainly help.

Onvif

Onvif (Open Network Video Interface Forum) is an organization of CCTV manufacturers focused on the issue of standardization, a common protocol for these devices. This group was created to unify the protocol, i.e. the way of communication between devices of different suppliers. At present, the entire organization brings together about 450 companies and institutions from around the world.

Since its introduction, the Onvif standard itself has undergone successive stages of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited. Today, the standard is offered in version 2.4 and in the vast majority of cases allows for seamless integration of any devices.

Smart IR Headlamp

The Kenik camera uses a modern infrared reflector based on SMD diodes for visibility in complete darkness. It is characterized by lower energy consumption, as well as stronger and more even illumination compared to standard diodes. In addition, the Smart IR radiator does not cause overexposure of the image in places where the object is in close proximity to the camera.

WDR

The WDR function allows you to get an image with even brightness in each part of the frame. It is necessary in places with very large differences in lighting levels in different areas. Cameras with WDR will be particularly used in entrances to buildings, glazed walls, etc.

SD card reader

The camera allows you to record video on a memory card based on a set schedule or motion detection. The reader supports cards up to 128GB. This allows the camera to operate autonomously without the use of a recorder or create an emergency backup.

Motion detection

Motion detection is one of the functions of the camera that is responsible for recording the image. Detection is carried out on the principle of capturing changes in the image, and the recording of the selected channel is enabled. This function has a number of additional possibilities, including defining the detection field, adjusting the appropriate sensitivity of changes that are responsible for recording.

​

Accessories:

Technical specification

KG-5370TZAS-IL (2.8mm) Camera Sensor 1/2.7" PS CMOS Sensitivity 0.006lux (color) Shutter Speed Auto/Manual, 1/3~1/10000s Slow Shutter Supported Lens 2.7-13.5mm (motorized), horizontal viewing angle: 112° - 35.5° IR Illuminator Coverage 70m Lens Mount φ14 Wide Dynamic Range WDR 120dB Noise Reduction 2D/3D DNR Starlight Yes Smart Light Yes Compression Video Compression H.264/H.264+/H.265/H.265+ H.264 Codec Profile Baseline/Main/High H.265 Codec Profile Main Video Bit Rate 11 Kbps~10MbpsAudio compressionG.711A, G.711UBaudio bitrate64 KbpsImageMax. Resolution 5MP(2880×1620) Frame Rate Main Stream 50Hz: 25fps 5MP(2880×1620) 25fps 4MP(2560×1440) 25fps 1080P(1920×1080) 60Hz: 30fps 5MP(2880×1620) 30fps 4MP(2560×1440) 30fps 1080P(1920×1080) Sub Stream 50Hz: 25fps 720P(1280×720) 25fps D1(704×576),25fps CIF(352 × 288) 60Hz: 30fps 720P(1280 × 720) 30fps D1(704 × 480),30fps CIF(352 × 240) Mobile stream 50Hz: 25fps CIF(352 × 288) 60Hz: 30fps CIF(352 × 240) Image Settings Brightness/Contrast/Saturation/Hue/Sharpness BLCTAKHLCTAKROITAK Hallway Mode YES Network Storage Support NAS (NFS, SMB/CIFS), ANR Events Motion Detection (SMD), Image Obscuration Intelligent video analysis SMD + PP 2.0 (Human/Vehicle), Line crossing detection, Intrusion detection Entering the area, leaving the area, scene change detection, face detection Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P Supported standards Onvif (Profiles S, Profiles G, T), SDK Security User authentication, IP address filtering, video mask Mobile viewing iPhone, iPad, Android WEBIE 10, IE 11, Chrome 57.0+, Firefox 52.0+ Interfaces Communication interface 1x RJ45 10M/100M Ethernet Port MicroSD card reader Yes, up to 256GB Audio inputs/outputs 1/1 (Jack 3.5 socket) Alarm inputs/outputs 1/1 Microphone Yes, built-in Reset button Yes General Operating conditions -30°C ~ 60°C (-22°F ~ 140°F) Humidity 95% or less (non-condensing) Power Supply DC12V ± 10% Power Supply POE (802.3af) Power Consumption Max. 9W Leak-proof classIP67DimensionsΦ76x215.8 mmWeight980g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5908231254511
Parametry	Manufacturer code	KG-5370TZAS-IL
Parametry	Brand	getfort
Parametry	Model	KG-5370TZAS-IL
Parametry	Packaging status	original
Parametry	Kind	external
