IP kamera Hikvision DS-2CD2T123G2-LIS2UY/SL, 2.8 mm

Trumpai apie prekę

Prekė: IP kamera Hikvision DS-2CD2T123G2-LIS2UY/SL, 2.8 mm. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD2T123G2-LIS2UY/SL(2.8mm)

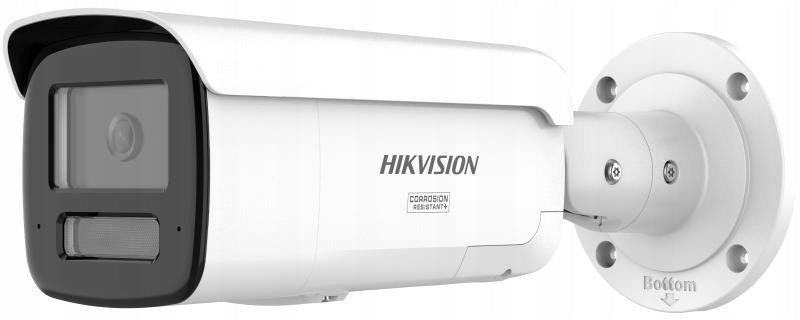

Hikvision DS-2CD2T123G2-LIS2UY/SL(2.8mm) IP camera

Model: DS-2CD2T123G2-LIS2UY/SL(2.8mm)

Destiny

• 12 MP AcuSense - Fixed Focus Network Bullet Camera with Intelligent Hybrid Lighting, Strobe and Audible Alarm
• UHD (Ultra High Definition): ultra-high resolution for realistic, detailed images
• Active strobe light and audio alarm (/SL: white light, /SRB: red and blue light)
• Smart Hybrid Light: integration of IR and white light, 3 lighting modes
• Person and vehicle classification based on deep learning technology
• Crystal-clear sound with a built-in dual array microphone and smart PA speaker
• Clear image even in strong backlight thanks to True WDR 120 dB technology
• Efficient H.265+ compression
• Water and dust resistance (IP67)
• Anti-corrosion design for greater reliability and durability compared to standard solutions (NEMA 4X)

Technical specifications

Model

DS-2CD2T123G2-LIS2UY/SL(2.8mm)

Image sensor

1/1.8" Progressive Scan CMOS

Maximum resolution

4608 × 2592

Minimal lighting

Color: 0.005 lx @ (F1.6, AGC ON) ), 0 lx with additional lighting

Shutter speed

1 s to 1/100,000 s

Day/night mode

IR cut-off filter

Setting the camera position

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens type

Fixed focal length lens, 2.8mm

Focal length and field of view (2.8 mm)

Horizontal 94.2°, vertical 51.1°, diagonal 110.2°

Lens mount

M16

Aperture type

Constant

Stop

F1.6

Depth of field (2.8 mm)

2.9 m to ∞

DORI (2.8 mm)

D: 117 m, O: 46 m, R: 23 m, I: 11 m

Assist light type

White light, IR

Assist light range

Up to 60 m

Smart Supplement Light

Yes

IR wavelength

850 nm

Main stream (50 Hz)

20 fps (4608 × 2592); 25 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

Main stream (60 Hz)

20 fps (4608 × 2592); 30 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

Substream (50 Hz)

25 fps (1280 × 720, 640 × 480, 640 × 360)

Substream (60 Hz)

30 fps (1280 × 720, 640 × 480, 640 × 360)

Third stream (50 Hz)

10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Third stream (60 Hz)

10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video compression

Main stream: H.265/H.264/H.264+/H.265+; Substream: H.265/H.264/MJPEG; Third stream: H.265/H.264

Video bitrate

32 kb/s to 20 Mb/s

H.264 type

Base profile, main profile, high profile

H.265 type

Main profile

Bitrate control

CBR, VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

ROI

1 fixed region for main stream

Audio type (-2U)

Mono sound

Audio bitrate (-2U)

64kbps (G.711u/G.711a) / 16kbps (G.722.1) / 16kbps (G.726) / 16-64kbps (AAC-LC) / 32-192kbps (MP2L2) / 8-320kbps (MP3)

Audio compression (-2U)

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio sampling rate (-2U)

8 kHz, 16 kHz, 32 kHz, 48 kHz

Environmental noise filtering (-2U)

Yes

Network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous live viewing

Up to 6 channels

API

ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/host

Up to 32 users; 3 levels: administrator, operator, user

Security

Password protection, complex password, HTTPS encryption, 802.1X (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, timeout settings, security audit log, TLS 1.1/1.2/1.3, host (MAC) authentication

Network storage

NAS (NFS, SMB/CIFS), ANR

Client software

iVMS-4200, Hik-Connect, Hik-Central

Internet browser

Plugin-free preview: Chrome 80+, Firefox 80+, Edge 89+; Local services: Chrome 80+, Firefox 80+, Edge 89+

Switching image parameters

Yes

Image settings

Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance; adjustable by client software or browser

Day/night switch

Day, night, car, schedule

Improving image quality

BLC, HLC, 3D DNR, distortion correction, defog

SNR

≥ 52 dB

WDR

120 dB

Privacy Mask

4 programmable polygon masks

Ethernet interface

1 × RJ45 10M/100M, self-adaptive

Built-in memory

microSD/microSDHC/microSDXC slot up to 512 GB

Reset button

Yes

Basic events

Motion detection (with human/vehicle trigger), video tampering, exception

Smart events

Scene change detection

Connections

FTP/NAS/Memory Card, Surveillance Center, Recording, Capture, Email

Face Capture

Yes

Perimeter protection

Line crossing, intrusion, region entry, region exit; human/vehicle alarm trigger

Power supply

12V DC ±25%, 1.41A, max. 17 W, Ø5.5 mm plug; PoE: IEEE 802.3at, class 4, max. 18 W

Material

Front cover: metal; body: metal; handle: metal

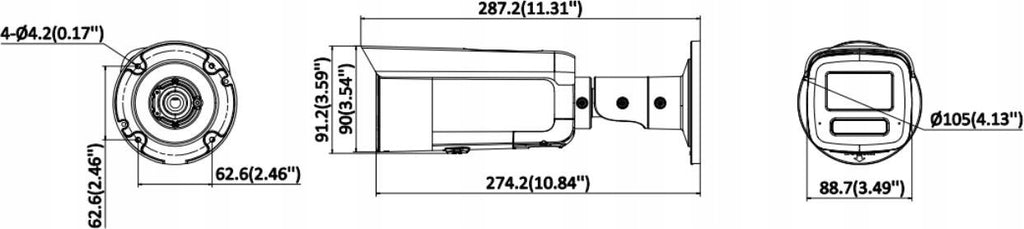

Dimensions

88.7mm × 91.2mm × 287.2mm

Package dimensions

386 mm × 156 mm × 155 mm

Libra

Approx. 1200 g

Weight with packaging

Approx. 1745 g

Storage conditions

-30°C to 60°C; humidity 95% or less (non-condensing)

Start-up and operating conditions

-30°C to 60°C; humidity 95% or less (non-condensing)

General functions

Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

languages

33 languages ​​( m.in . Polish )

Flashing light

/SRB models: red and blue; /SL model: white

Security

IP67 (IEC 60529-2013)

Anti-corrosion protection

NEMA 4X (NEMA 250-2018)

• EAN: 6936422186746
• Symbol: 69572
