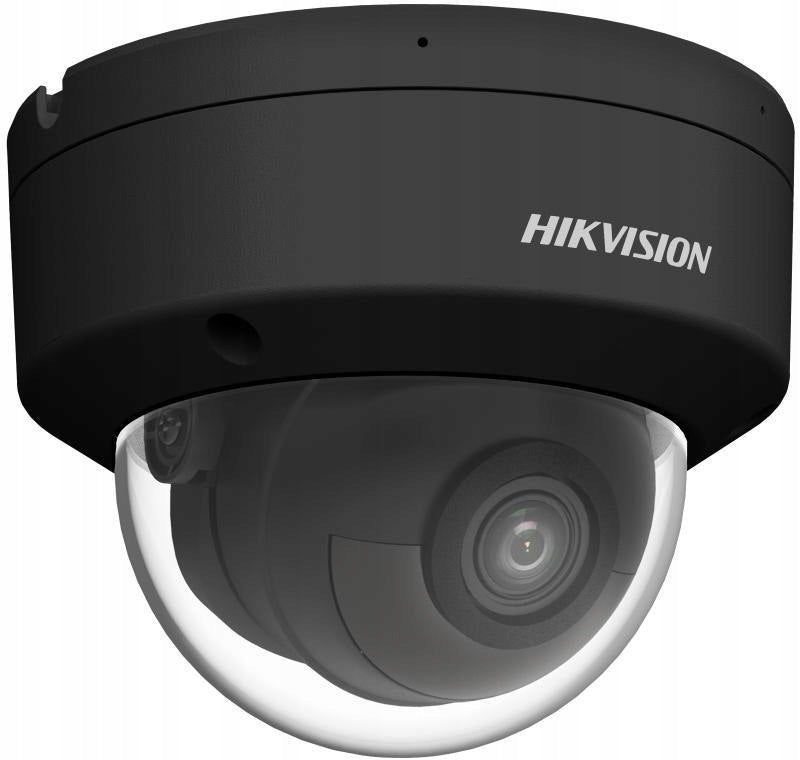

IP kamera HIKVISION DS-2CD2146G2H-ISU 2.8 mm, juoda

Trumpai apie prekę

Prekė: IP kamera HIKVISION DS-2CD2146G2H-ISU 2.8 mm, juoda. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD2146G2H-ISU(2.8mm)(eF) BLACK PL

IP CAMERA HIKVISION DS-2CD2146G2H-ISU(2.8mm)(eF)/BLACK

Model: DS-2CD2146G2H-ISU(2.8mm)(eF)/BLACK

Technical specification

Model

DS-2CD2146G2H-ISU (2.8 mm) EF BLACK

Manufacturer

Hikvision

Image transducer

1/3" Progressive Scan CMOS

Max. resolution

2688 × 1520

Min. lighting

Colour: 0.001 Lux @ (F1.0, AGC ON); Part/B: 0 Lux with IR

Shutter speed

1/3 s - 1/100 000 s

Day/Night

IR cut-off filter

Camera setting

Rotation: 0°-355°; Tilt: 0°-75°; Rotation: 0°-355°

Lens type

Fixed focal length 2.8mm

Field of view 2.8 mm

H: 100,2°; V: 54,7°; D: 119,7°

Lens mount

M12

Type of shutter

Fixed

Aperture

F1.0

Depth of field 2.8 mm

1,9 m - ∞

DORI 2.8 mm

D: 63 m; O: 25 m; R: 12 m; I: 6 m

Illuminator

IR

IR range

Up to 30 m

Smart Supplement Light

Yes

IR wavelength

850 nm

Main stream 50 Hz

25 fps (2688×1520, 1080p, 720p)

Main stream 60 Hz

30 fps (2688×1520, 1080p, 720p)

Substream 50 Hz

25 fps (720p/480p/360p)

60 Hz substream

30 fps (720p/480p/360p)

Third stream

10 fps (1080p/720p/480p/360p)

Main compression

H.265/H.264/H.265+/H.264+

Substream compression

H.265/H.264/MJPEG

Compression third stream

H.265/H.264

Bitrate video

32 Kbps - 8 Mbps

Profile H.264

Baseline/Main/High

Profile H.265

Main

Bitrate control

CBR/VBR

SVC

H.264/H.265

ROI

1 region (main + substream)

Audio Compression

G.711u/a, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Bitrate Audio

64/16/16/32-192/8-320/16-64 Kbps

Sampling

8/16/32/44.1/48 kHz

Noise filtering

Yes

Network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket/WebSockets

Simultaneous preview

Up to 6

API

ONVIF S/G/T, ISAPI, SDK

Users

Up to 32: administrator/operator/user

Safeguards

Password, HTTPS, IP filter, audit log, TLS 1.1/1.2, WSEZ

Network memory

NAS (NFS, SMB/CIFS), ANR, Hikvision card encryption

Clients

VMS-4200, Hik-Connect, Hik-Central

Browser

Plug-in: IE10/IE11; without plug-in: Chrome 57+/Firefox 52+/Edge 89+

Switching parameters

Yes

Image Settings

Corridor, saturation, brightness, contrast, sharpness, gain, white balance

Day/night mode

Auto/Day/Night/Schedule

WDR

120 dB

SNR

≥52 dB

Image improvement

BC, HLC, 3D DNR

Mask of privacy

4 polygonal masks

Ethernet

1× RJ-45 10/100M

microSD slot

Up to 512 GB

Microphone

Built-in (SU)

Audio in. /howl.

SU: 1× line-in, 1× line-out

Alarm

SU: 1 input, 1 output (12 VDC, 30 mA)

Reset

Yes

Basic events

Movement (man/vehicle), sabotage, exception

Smart Event

Sudden change of scene

Relationships

FTP, NAS, SD, recording, snapshot, email, audio alarm

Deep learning

Face, line, intrusion, input/output

Power supply

12 VDC ±25% (7.2 W), PoE 802.3af (8.5 W)

Material

Cover: aluminium; body: aluminium

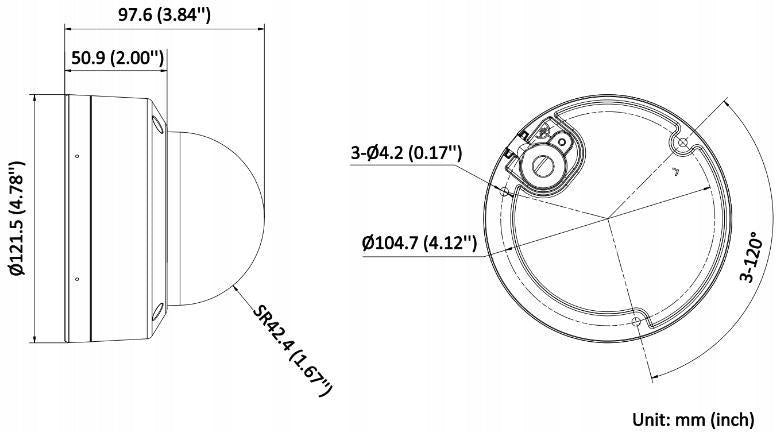

Dimensions

Ø121.5 × 97.6 mm

Package Dimensions

150 × 150 × 141 mm

Weight

550 g

Weight with packaging

800 g

Working conditions

-30°C...60°C, ≤95% RH

Storage conditions

-30°C...60°C, ≤95% RH

General functions

Heartbeat, mirror, anti-banding, flash log, reset by email, pixel counter

EMC

EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN 61000-3-2/-3-3

Security

UL 62368-1, IEC 62368-1, EN 62368-1

Environment

CE-RoHS 2011/65/EU

Protection

IP67, IK10

• EAN: 6942160436487
• Symbol: 51158
