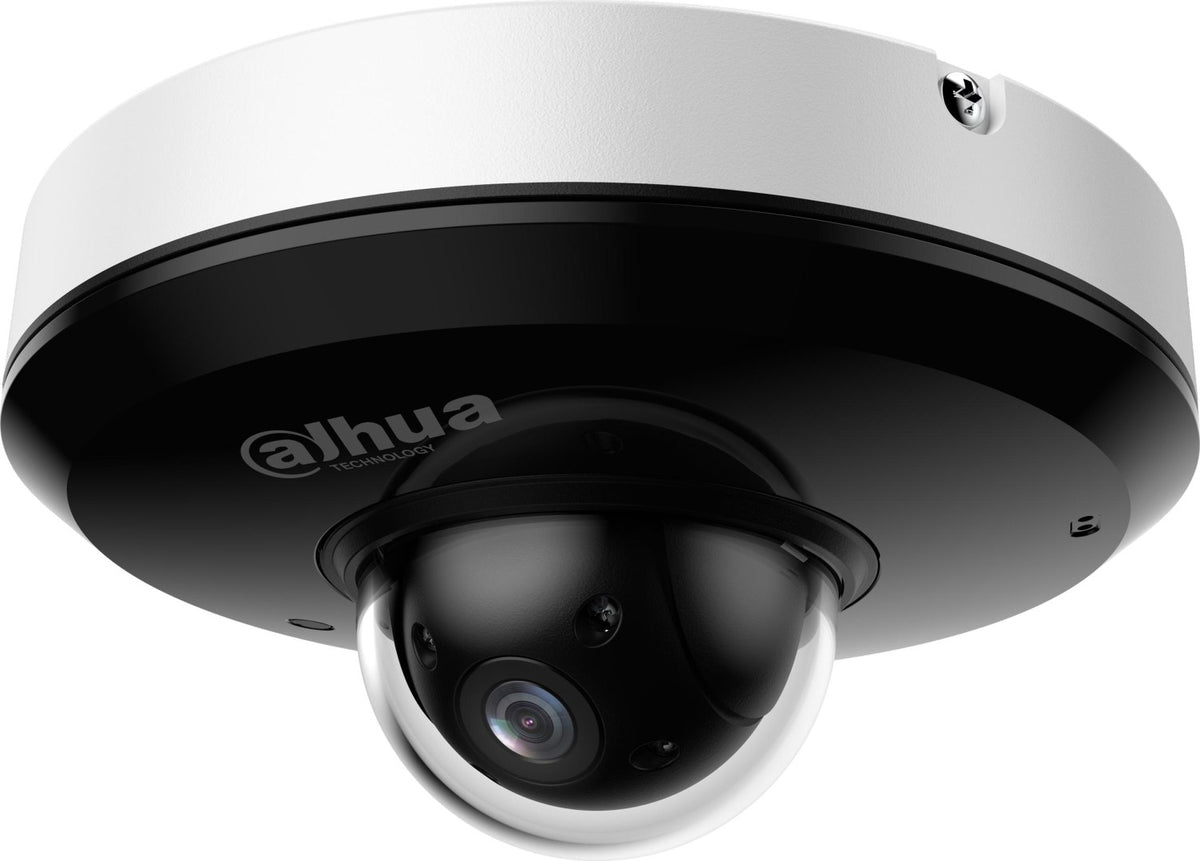

IP kamera DAHUA SD1A404DB-GNY

Trumpai apie prekę

Prekė: IP kamera DAHUA SD1A404DB-GNY. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: SD1A404DB-GNY

DAHUA SD1A404DB-GNY IP CAMERA

Model: SD1A404DB-GNY

Destiny

• 1/2.8" 4-megapixel CMOS sensor.
• 4x optical zoom
• Starlight Technology.
• Max. 25/30 fps@4MP
• IR distance up to 20 m
• Electronic image stabilization (EIS)
• Perimeter protection
• Face detection
• SMD 3.0
• Built-in microphone
• IP66; IK08

Technical specifications: Image sensor 1/2.8" CMOS Pixels 4 MP Maximum resolution 2560 (H) × 1440 (V) ROM 256 MB RAM 512 MB Electronic shutter 1 s-1/30,000 s Scanning system Progressive Minimum illumination 0.005 lux@F1.8 (Color, 30 IRE); 0.0005 lux@F1.8 (B/W, 30 IRE); 0 lux (illuminator on) Illuminator distance 20 m (65.62 ft) (IR) Illuminator control Manual; SmartIR; Off Number of illuminators 3 (IR light) Lens focal length 2.8 mm-12 mm Maximum aperture F1.8-F2.7 Field of view H: 96.9°-31.6°; V: 51.4°-17.8°; D: 116.2°-36.4° Optical Zoom 4x Focus Control Automatic; semi-automatic; manual Minimum Focus Distance 0.2 m-0.5 m (0.66 ft-1.64 ft) Iris Control Fixed iris DORI Distances Detection 240 m (787.40 ft) Observation 94.8 m (311.02 ft) Recognition 48 m (157.48 ft) Identification 24 m (78.74 ft) PTZ Range Pan: 0° to 355°; Tilt: 5° to 90° Manual Control Speed ​​Pan: 0.1°/s-70°/s; Tilt: 0.1°/s-30°/s Preset Speed ​​Pan: 0.1°/s-80°/s; Tilt: 0.1°/s-40°/s Presets 300 Patrol Patterns 8 (up to 32 preset positions per pattern) Power-off Memory Yes Idle Motion Preset; Patrol Pattern PTZ Protocol DH-SD IVS (Perimeter Guard) Line crossing detection; intrusion; fence crossing; loitering detection; abandoned/missing object detection; fast moving; parking detection; people gathering; people alarm classification. Face Detection Supports face detection, snapshot and face enhancement; Supports face cutout: face, ID photo; Capture strategies include real-time capture and quality priority. People Counting Supports detection line crossing people counting, area people counting, and queue management. Only counting people crossing the detection line supports the reporting function. SMD Yes Video Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (substream); Smart H.264+ Streaming Capability 3 streams Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Video Frame Rate Main stream: 4M/3M/1080P/1.3M/720P@(1-25/30 fps); Sub-stream 1: D1/VGA/CIF@(1-25/30 fps); Sub-stream 2: 720P@(1-25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H264: 96 Kbps-14,848 Kbps; H265: 38 Kbps-8,960 Kbps Day/Night ICR: Color; B/W; Auto; Electronic: Color; B/W; Auto BLC Yes WDR 120 dB HLC Yes White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street light Gain Control Auto; manual; Gain Priority Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Image Stabilization Electronic Image Stabilization (EIS) Defog Electronic Digital Zoom 16x Image Flip 180° S/N Ratio ≥55 dB Audio Compression PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1 Network Port RJ-45 (10/100 Base-T) Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP Interoperability ONVIF (Profile S, Profile G, Profile T); CGI; SDK User/Host 20 (total bandwidth: 64M) Storage Micro SD card (512GB); FTP/SFTP; NAS Browser IE 9 and above; Chrome 41 and above; Firefox 52 and above; Safari 10 and above Management Software DMSS; DSS Pro Mobile Client iOS; Android Certifications CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 Audio Input 1-channel (LINE IN, bare wires) Audio Output 1-channel (LINE OUT, bare wires) Alarm Linkage Snapshot; recording; sending emails; presets; patrol route Alarm Events Motion/tamper detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection Audio I/O 45292 Power Supply 12 VDC, 2 A ± 10%; PoE (802.3af) Power Consumption Basic: 4 W; Maximum: 13 W (with illuminator on) Operating temperature -30 °C to +60 °C (-22 °F to +140°F) Working humidity ≤95% Protection TVS 6000 V lightning protection; IP66; IK08; surge protection; transient voltage spike protection Product dimensions 65.7 mm × Φ128.0 mm (2.59" × 5.04") Net weight 0.5 kg (1.10 lb) Gross weight 0.7 kg (1.54 lb)

• EAN: 6923172590367
• Code: 45640

Additional information regarding offers:

• In the event of any discrepancies between the parameters shown in the "Parameters" section and the "Description" section, the information contained in our title and equipment description shall prevail. Information from the Allegro Product Catalog is added to offers automatically based on EAN numbers ("Parameters" section).
• The photos visible in our offers come directly from the catalogs of manufacturers and distributors. We try to verify them on an ongoing basis with the facts, but we cannot guarantee that they are 100% accurate in every case. Manufacturers often modify the appearance of their products within different production series of the same equipment model (especially batteries and converters! ), without updating the catalog cards. In the case of items visible in the offer photos that are important to you, we will verify the actual condition before shipping the goods.
• The equipment we offer comes from official polish distribution .
