Indukcinio kaitinimo plokštė 1000W, žemos įtampos, ZVS, LF

Trumpai apie prekę

Prekė: Indukcinio kaitinimo plokštė 1000W, žemos įtampos, ZVS, LF. Kategorija: Oro šildytuvai.

• Gamintojas: no brand
• Modelis: AG260412001025

Function:

1. This part of induction heating uses low voltage 12-48V DC power supply

2. Maximum current 20A, maximum power 1000W.

3. The 53 V power supply was tested for proper operation.

4. Due to its moderate power, it can be used for small DIY parts for hardening, annealing and other heat treatment,

5. It can also be used with graphite crucible melting gold, silver, copper, aluminum and other metals, ensuring even heating, fast and very convenient.

Specification:

• Functions:
• This induction heating section uses 12-48V low voltage DC power supply
• Maximum current 20A, maximum power 1000W.
• The 53 V power supply was tested for proper operation.
• Due to its moderate power, it can be used for small DIY parts for hardening, annealing and other heat treatment,
• It can also be used with graphite crucible to melt gold, silver, copper, aluminum and other metals, ensuring even heating, fast and very convenient.
• Technical data:
• Inner diameter of coil: 40mm
• Coil Height: 50mm
• 24V input at 3A idle current
• 48 V input at idle current 6 A
• The higher the voltage, the greater the heating current, when the same, the effect is better,
• But at the same time, the heat is also large, so to eliminate the actual situation of choosing the input voltage, it is enough to use the words 24 V or 36 V power supply in general.
• Fits 12-36V power supply (brak)
• The coil is adapted to a crucible with a diameter of 40 mm.

List of packages:

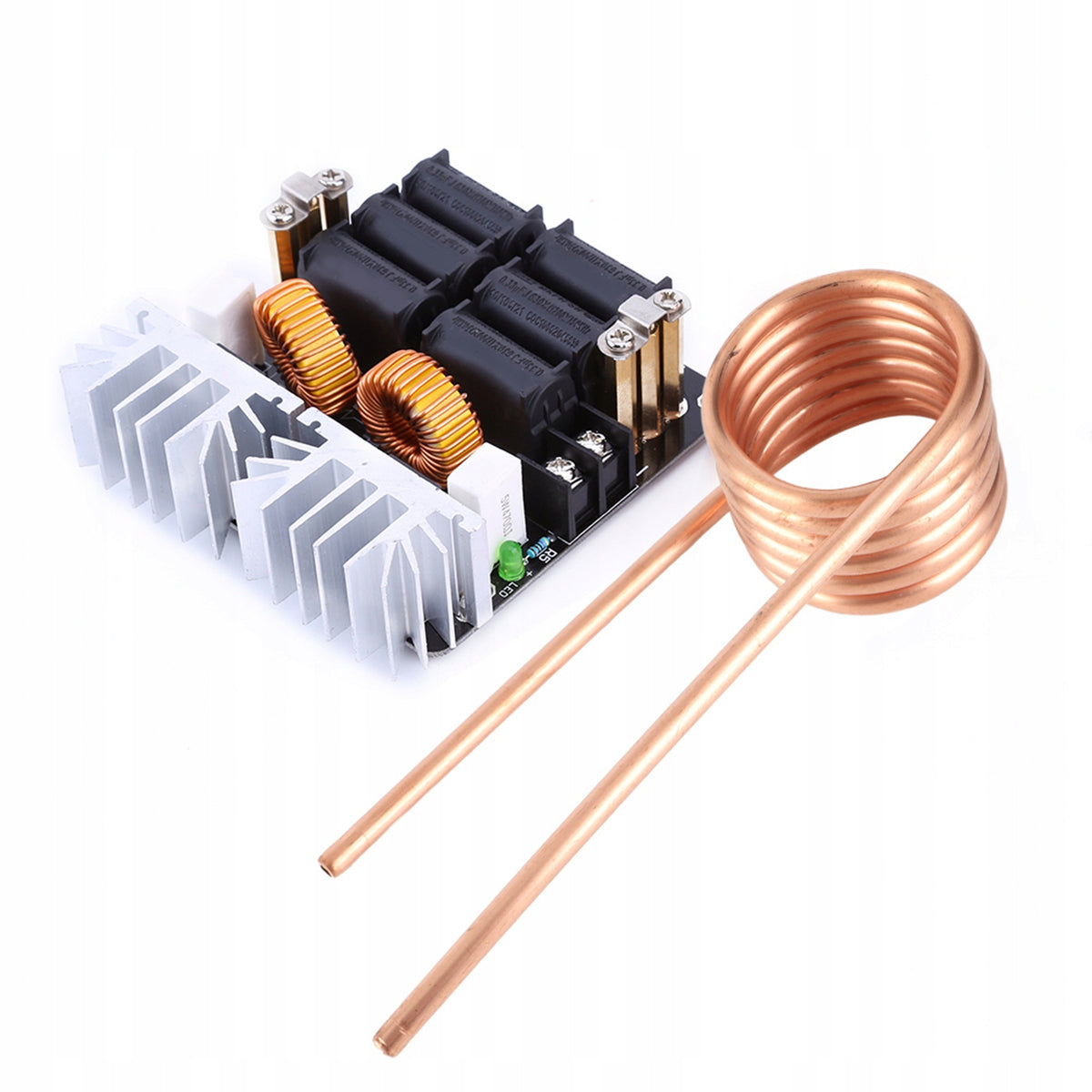

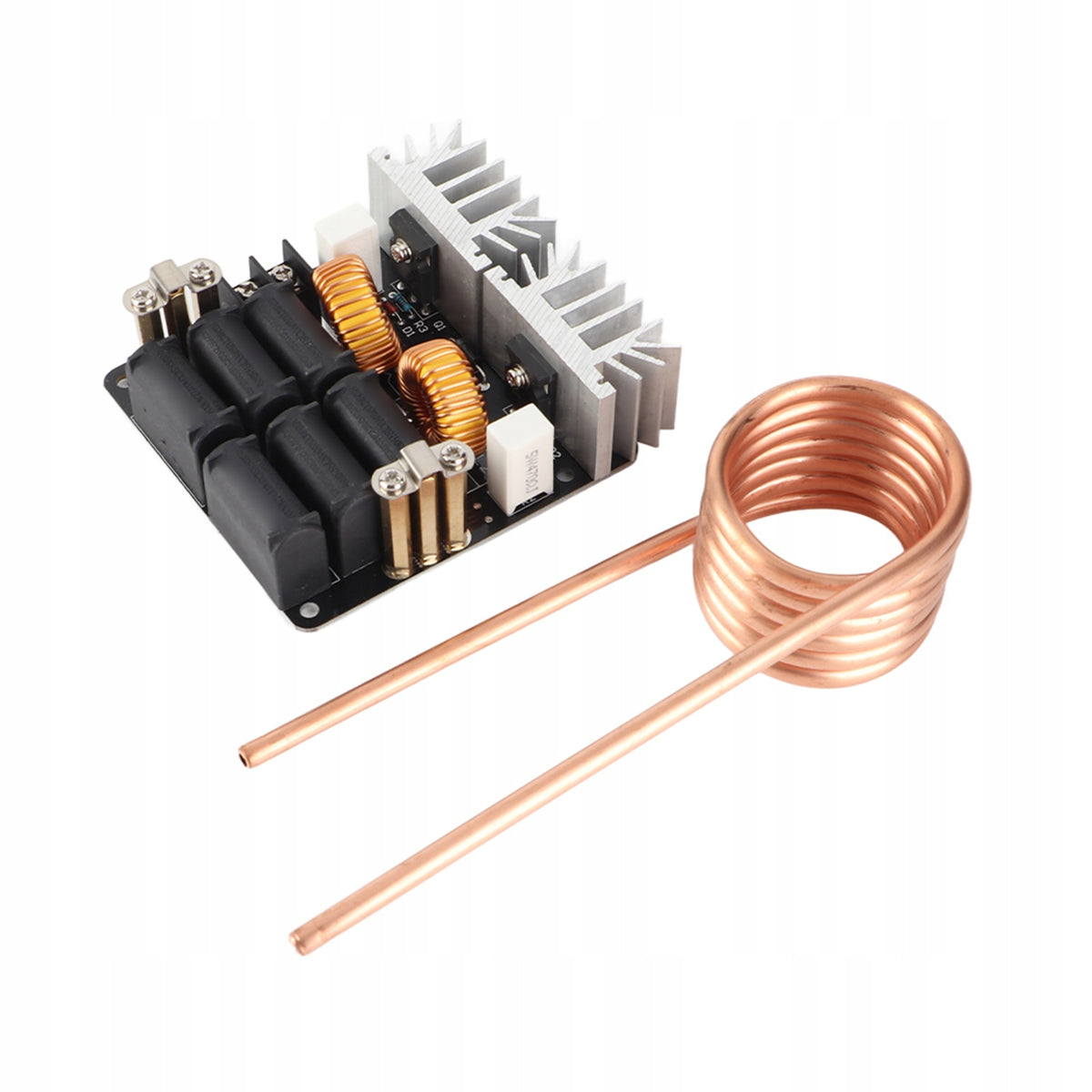

• 1 x ZVS Low Voltage Induction Heating Plate
• 1 x Brass
