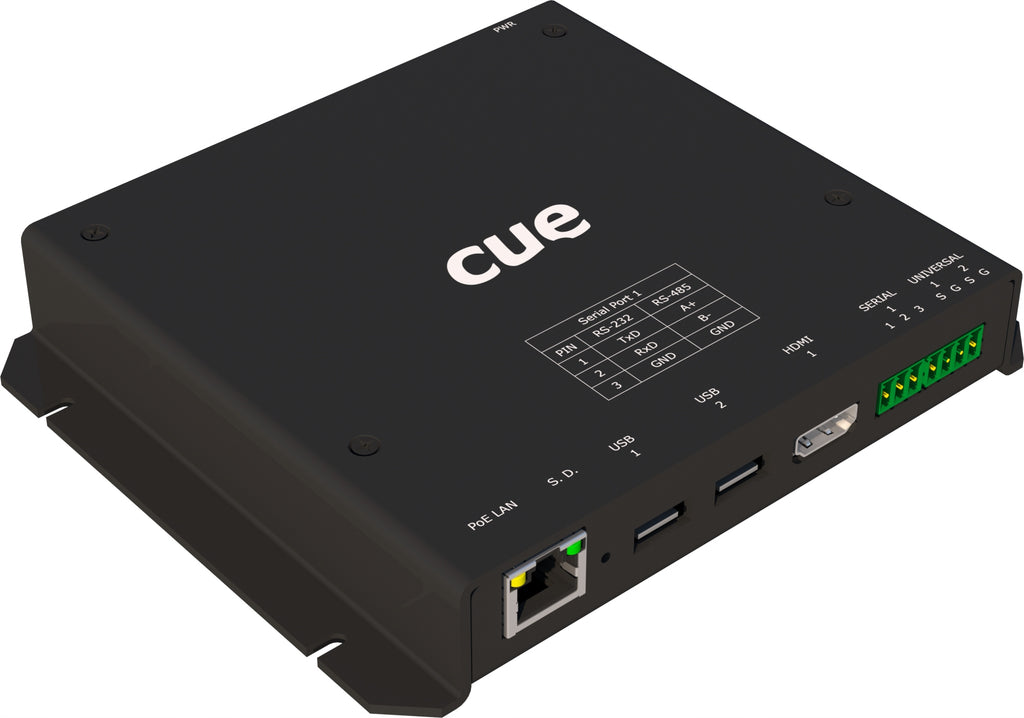

Grafinis grotuvas ir sąsaja CUE signCUE-two CS0592

Trumpai apie prekę

Prekė: Grafinis grotuvas ir sąsaja CUE signCUE-two CS0592. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0592

Product code: CS0592

• Standalone graphics player for touch displays
• Runs standard projects created in Cue Visual Composer
• HDMI output supports Full HD and 4K resolution
• USB host interface for HID-compliant touch screens
• Internal RAM 4 GB, flash 32 GB
• Wired Ethernet 10/100/1000 BaseT
• IP control port
• Supported 802.1X authentication mechanism
• Proxy server support
• Video preview
• Web server and administrative network for configuration using a standard web browser
• Power over Ethernet power supply
• Operation without fan
• Small dimensions, low profile, surface mountable
• Simple installation near the display device

SignCUE-two is a powerful IP-enabled unit that serves as a controller, server, touch monitor interface, and display device interface. It supports standard designs created in Cue Visual Composer and allows you to combine a custom desktop environment with AV control, lighting, curtains, HVAC and other technologies. SignCUE-two provides HDMI 2.0 output for connection to the display device and includes a USB HID port for touch screen connection. Ethernet provides connection to other Cue System units as well as a control port for IP-controlled devices. The player is enclosed in a compact design and can be easily installed behind a flat display or projector, under a table or in a stand.

The Cue Visual Composer development tool offers:

• Pre-programmed graphic objects such as buttons, containers, control panels, date and time objects, indicators, keyboards and numeric keyboards, labels, rotary grippers, sliders, dual-stable switches, thermometers and more
• Pre-programmed dynamic objects with kinetic effects, e.g. scroll lists
• Drag and drop objects to easily switch sources
• Support for online information, e.g. weather
• Support IP driver programming
• Support for video preview - see

  Video object collection

• Library for easy integration with touchONE reservation system
• And much more.

• Integration of the interactive display with the touchONE reservation system
• Individual additions to the touchONE booking system
• Powerful controller for IP-controlled devices

• AppCUE mobile control application server
• Digital Signage Player
• Touch panel interface
• Integration of interactive large screen displays
• Virtual touch panel

Technical data

Firmware

• XPL2 runtime for applications created using Cue Visual Composer
• Admin web for setup

CPU

• i.MX 8M Quad application processor
• Quad Arm® Cortex®-A53 core at 1.5 GHz

memories

• RAM 4 GB
• Flash 32 GB

Button

• System default

Indicator

• Power LED

Network

• 10/100/1000 BaseT LAN, RJ-45 connector
• 802.1X authentication mechanism supported
• Proxy Server support

USB

• USB 1 Host for USB HID-compliant touch screens
• For proper use see power supply specifications

AV connection

• HDMI output

  - HDMI 2.0a-compliant output

• Resolution Full HD (1920 x 1080) or 4K (3840 x 2160)

• Unit signCUE-two
• Connector set
• Mounting accessories
• Ethernet cable
• QuickStart

Specifications
