Garso plokštė su I2S sąsaja Raspberry Pi

Trumpai apie prekę

Prekė: Garso plokštė su I2S sąsaja Raspberry Pi. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: DS01467

Description:

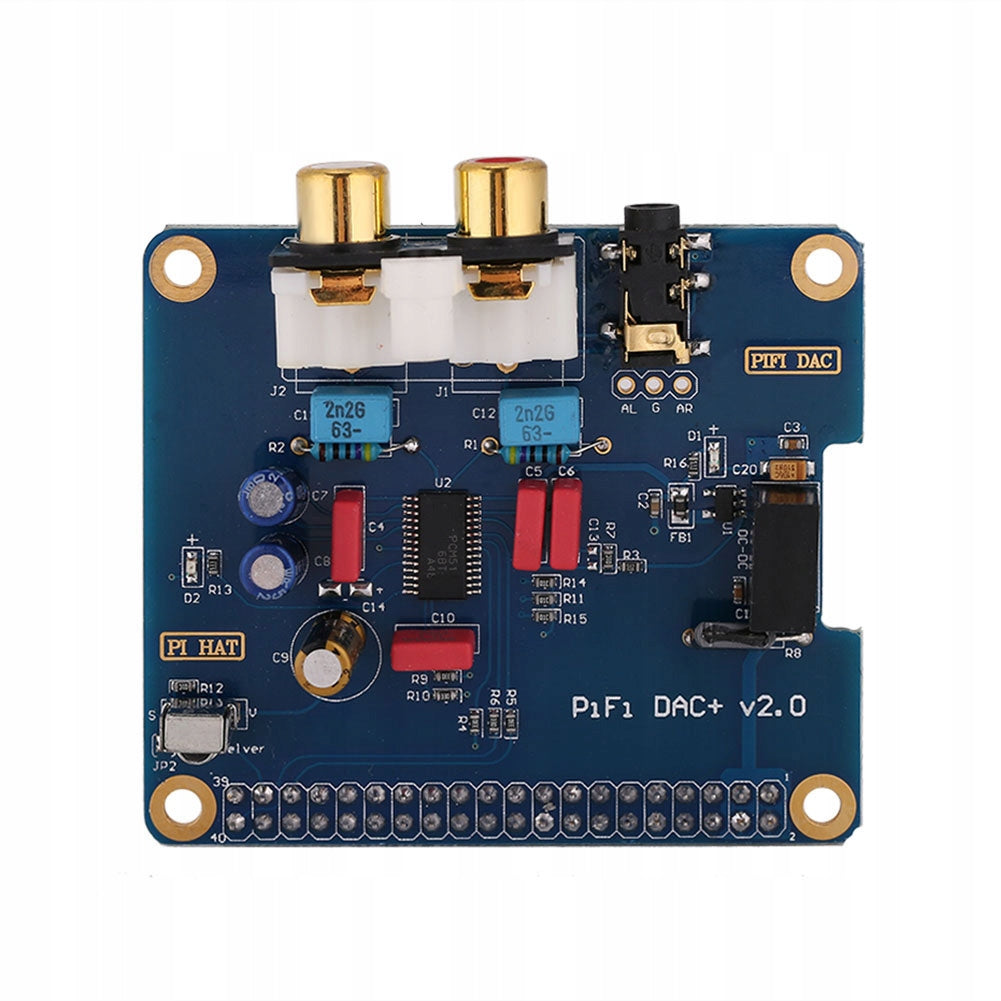

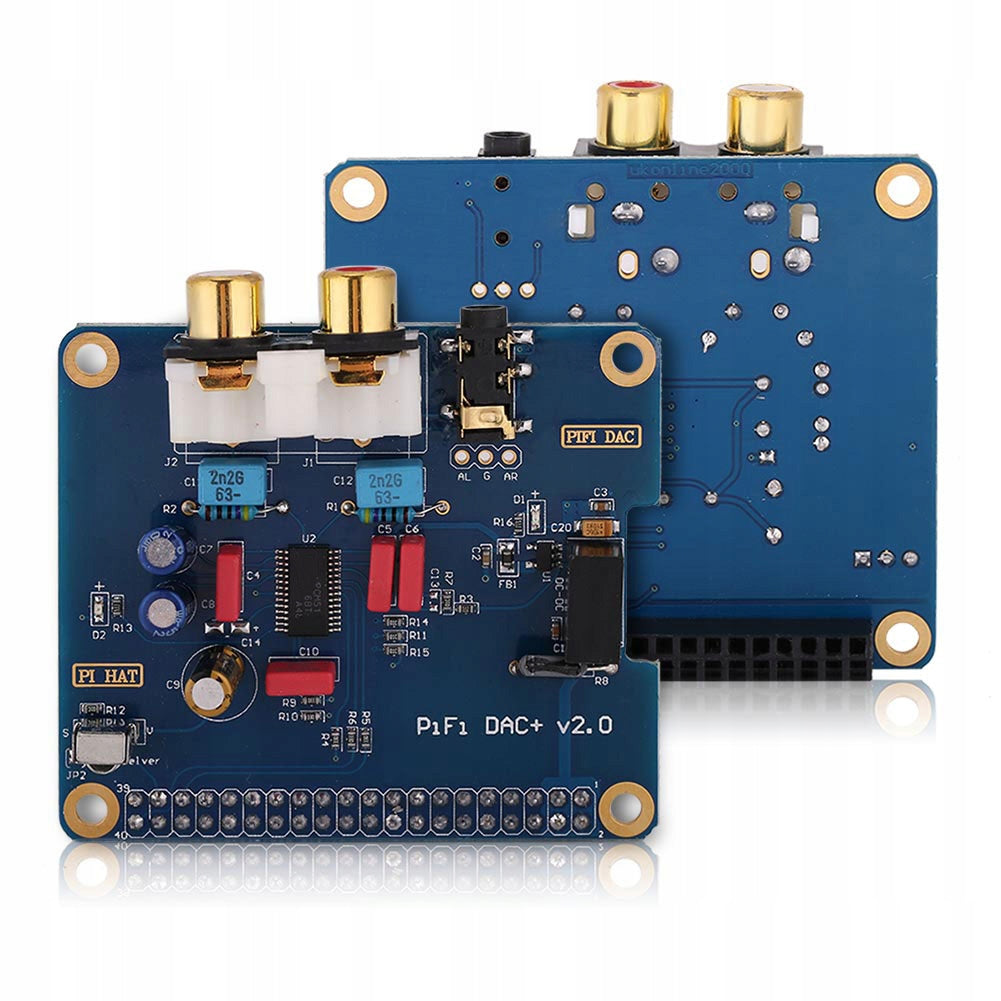

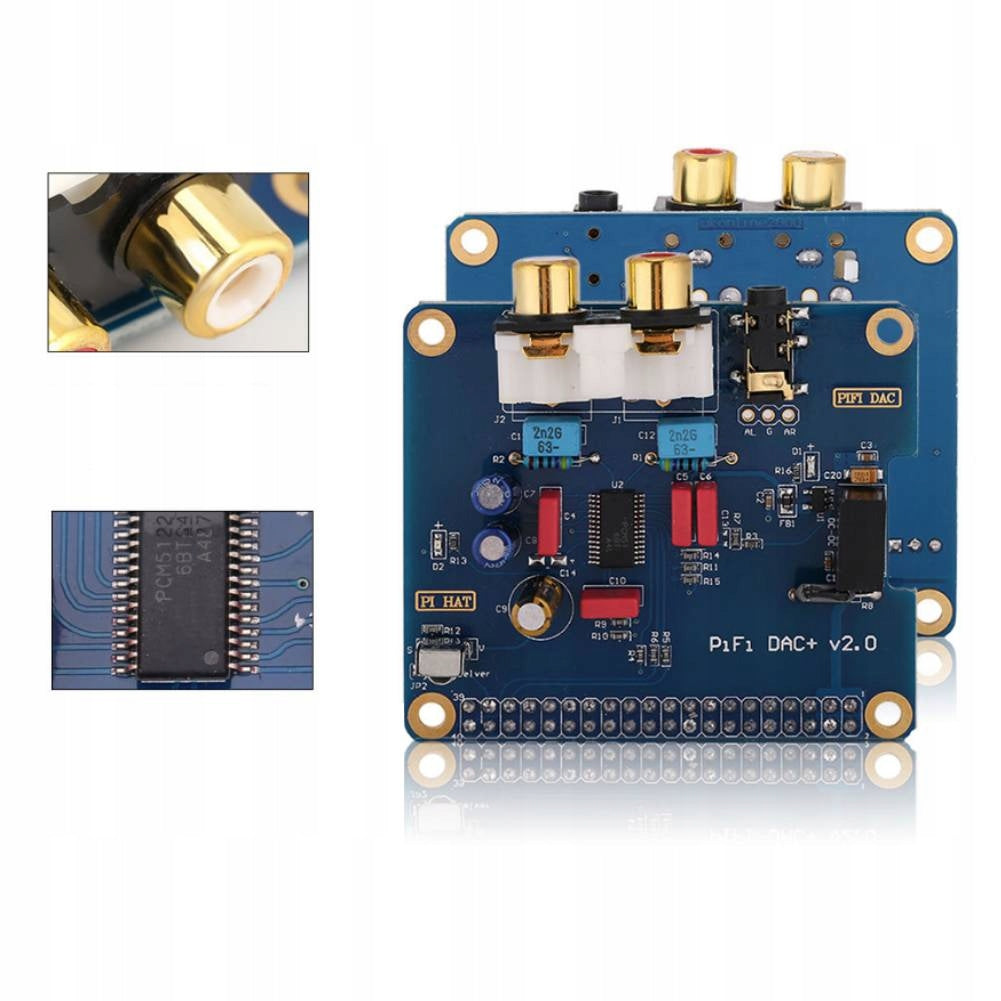

This item includes Pifi DAC + PCM5122 DAC, I2S interface, analog output signal, compatible with Raspberry Pi B+a+2B Raspberry Pi 3B (64-bit).

Characteristics:

Pifi DAC + PCM5122 DAC, I2S interface, analog output signal, compatible with Raspberry Pi B + a + 2B Raspberry Pi 3B (64-bit).

PCM5122 also integrated negative charge pump, output without DC blocking capacitor; ground center output 2,1 Vrms; ability to suppress very good band noise. Due to its low load up to 1K, the PCM510xA can control multiple parallel products.

Gold-plated dual RCV terminals and gold-plated 3,5 mm jack socket (recommended by amplifier).

The insulated design of the power supply makes raspberry nutrition and digital-to-analog converter part of the independent insulation of the power supply, and thanks to the bead completely without mutual interference, they get rid of the current sound.

The increase for two-color LED provides status display, red for DAC power indicator (normal bright power), green light for DAC lamp status (decoding and brightness, stopping or not working), better understanding of DAC operation.

Perfect compatibility raspberry pie official size PI HAT, gold plated high process based on circuit board, arc wire (high-end HIFI digital-to-analog converter adopts arc wire), better guarantee signal continuity impedance, reduce signal reflection and refraction.

Equipped with infrared receiver interface.

. I2S INTERFACE SOUND CARD FOR RASPBERRY PI

. I2S INTERFACE SOUND CARD FOR RASPBERRY PI

. I2S INTERFACE SOUND CARD FOR RASPBERRY PI

Specification:

Condition: 100% new

Sampling rate: 384 KHz

- Resolution (bits): 16-32

- Digital audio interface: I2S

-SNR: 120dB

THD: -93dB

- Dynamic Range: 112dB

- Supports Raspberry Pi B+, Raspberry Pi 2 Model B, Raspberry Pi 3B (64-bit)

. I2S INTERFACE SOUND CARD FOR RASPBERRY PI

. I2S INTERFACE SOUND CARD FOR RASPBERRY PI

. I2S INTERFACE SOUND CARD FOR RASPBERRY PI

The package includes:

1 x Digital Sound Card for Raspberry PI

1 x HIFI DAC for Raspberry PI

Announcement:

Please allow 1-3cm error due to manual measurements and make sure you don't mind before placing your order.

Please understand that colors may include chromatic aberration as different placement of images.
