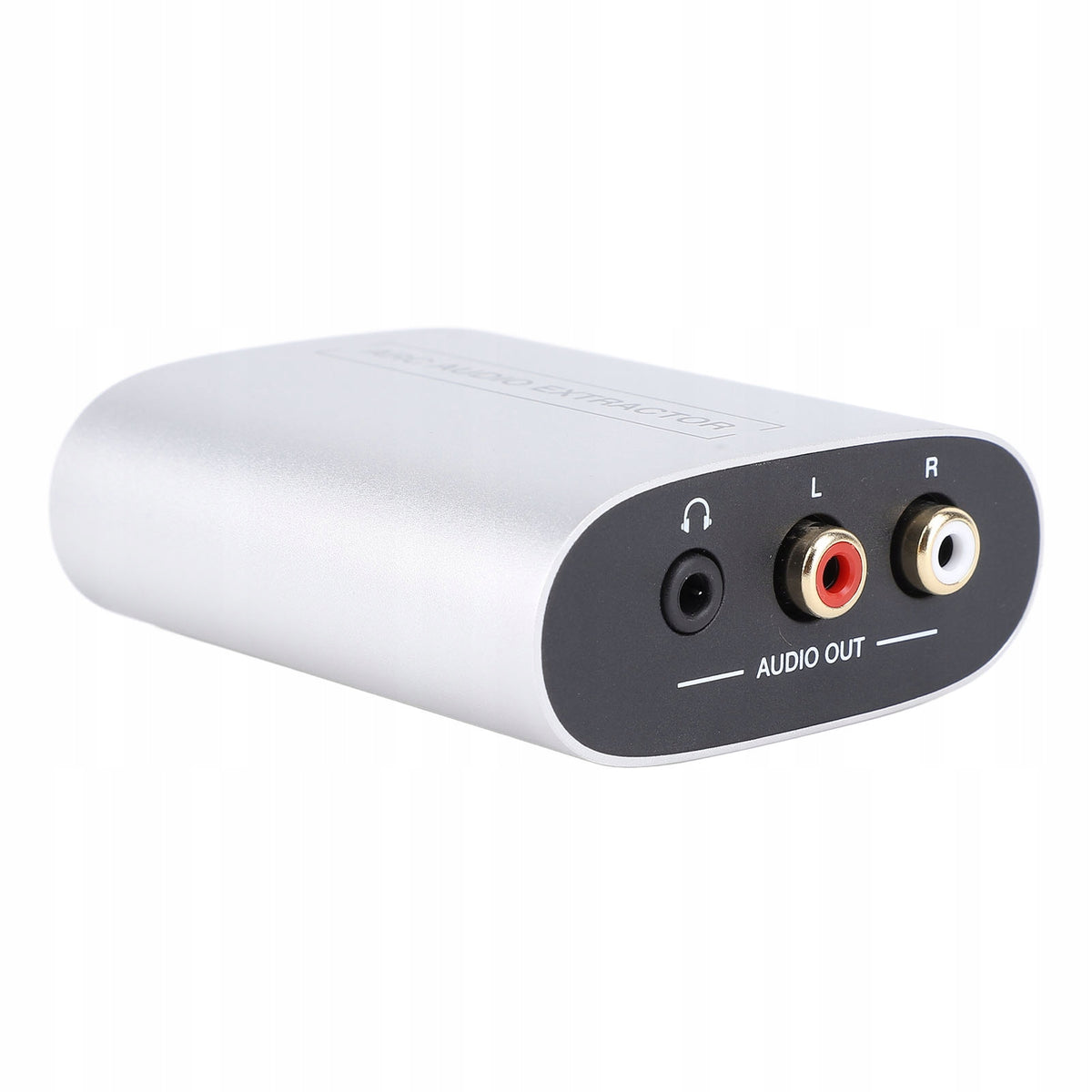

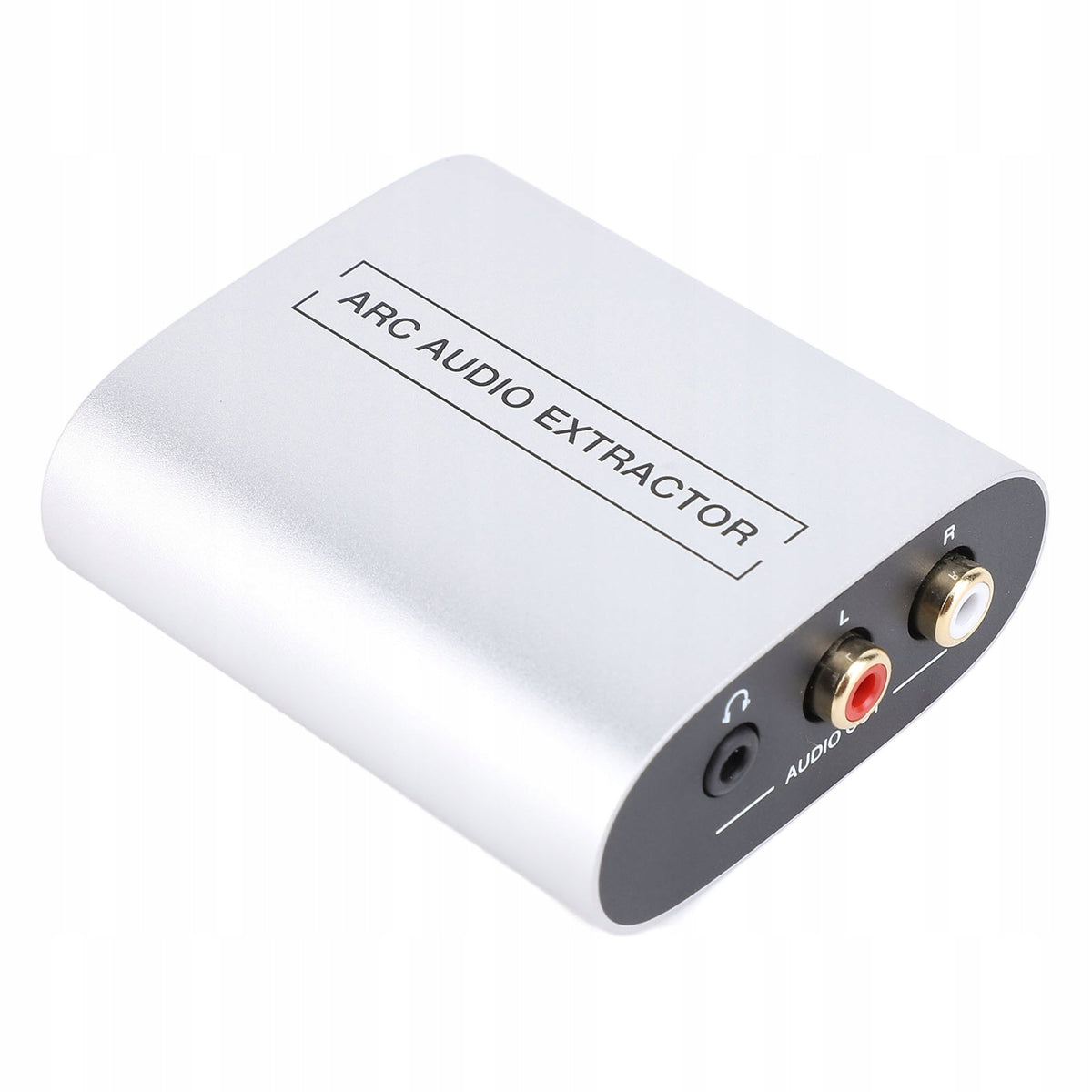

Garso išskyriklis HD multimedia interface ARC į 3,5 mm JACK LR AV 21

Trumpai apie prekę

Prekė: Garso išskyriklis HD multimedia interface ARC į 3,5 mm JACK LR AV 21. Kategorija: Maitinimo šaltiniai ir įkrovikliai.

• Gamintojas: no brand
• Modelis: AG250820018235

Function:

1. [ARC Sound Extractor] Supports HD Multimedia Standard 1.4 interface and can extract audio signals from HDTVS that support ARC function to analog stereo output.

2. [Comprehensive Output Interfaces] This sound extractor has a 3,5mm sound jack, L R and AV, suitable for a variety of sound devices.

3. [CEC Function] The ARC sound extractor converter has a built-in CEC function, allowing you to conveniently control the volume via your TV remote.

4. [Clear and Gentle Sound] With outputs up to 2VRMS and SNR above 90dB, this sound splitter delivers crisp and gentle sound.

5. [Wide Frequency Response] With a wide frequency response range from 20Hz to 20kHz+1dB, it supports PCM 2.0 and analog stereo output.

Specification:

• Item Type: Sound Extractor
• Material: Aluminum Alloy
• HD Multimedia Interface Compatibility: HD Multimedia Interface 1.4
• VMAX: 2VRMS
• Snr:>90dB
• THD+N Ratio: crosstalk: > 80db
• Frequency Response: 20 Hz-20 kHz+1dB
• HD multimedia interface audio format: PCM 2.0
• L R Sound Format: Analog Stereo 2ch

How to use:

• Plug and Play.
• List of packages

:

• 1 x Sound Extractor
• 1 x USB cable
• 1 x User Manual
