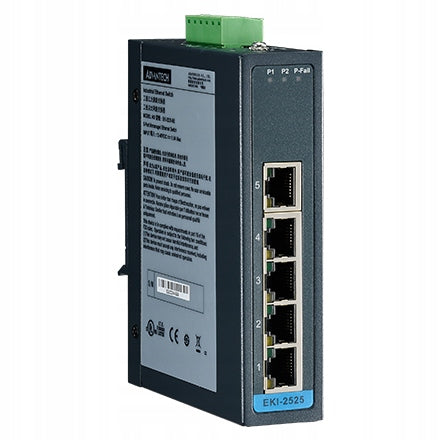

Ethernet jungiklis EKI-2525, 5 x 10/100Mb/s prievadai

Trumpai apie prekę

Prekė: Ethernet jungiklis EKI-2525, 5 x 10/100Mb/s prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Advantech
• Modelis: 198012

The EKI-2525 is a compact and robust switch designed for harsh industrial environments. It features a metal housing with an IP30 rating, which provides protection against dust and other contaminants. The switch supports auto-negotiation speed and auto-MDI/MDI-X, making it easy to install and configure.

Parameters:

• Model: EKI-2525
• Manufacturer: Advantech
• Type: Switch Ethernet (unmanaged)
• Number of ports: 5 x Ethernet 10/100Mbps
• Type of connectors: RJ45
• Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Power supply: 12-48 V DC (redundant)
• Working temperature: -10°C to +60°C (Available with extended operating temperature range EKI-2525I -40°C to +75°C)
• Degree of protection: IP30
• Assembly: DIN rail
• Housing: Metal

Features and advantages:

• 5 Ethernet ports 10/100Mbps.
• Unmanaged, simple to install and configure.
• Redundant power supply for increased reliability.
• Wide operating temperature range.
• Durable metal housing.
• All ports with ESD protection up to 4000VDC.
• Protected power source up to 3000VDC.
• Store and forward mechanism.
• Auto-negotiation of speed.
• Automatic selection of MDI/MDI-X.

Application:

• Industrial automation.
• Monitoring systems.
• Control systems.
• Applications that require Ethernet expansion in harsh environments.
