EPON OLT komutatorius BDCOM P3310D su 4 GE prievadais

Trumpai apie prekę

Prekė: EPON OLT komutatorius BDCOM P3310D su 4 GE prievadais. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Extralink
• Modelis: EX.16965

OLT BDCOM P3310D EPON 4GE

EAN: 5903148916965

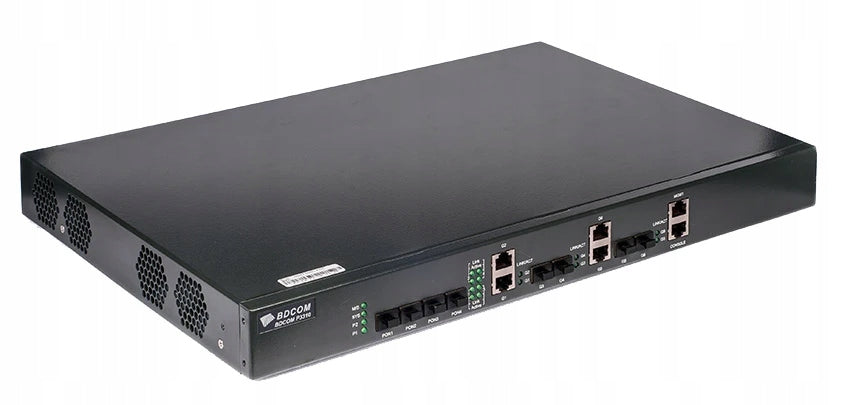

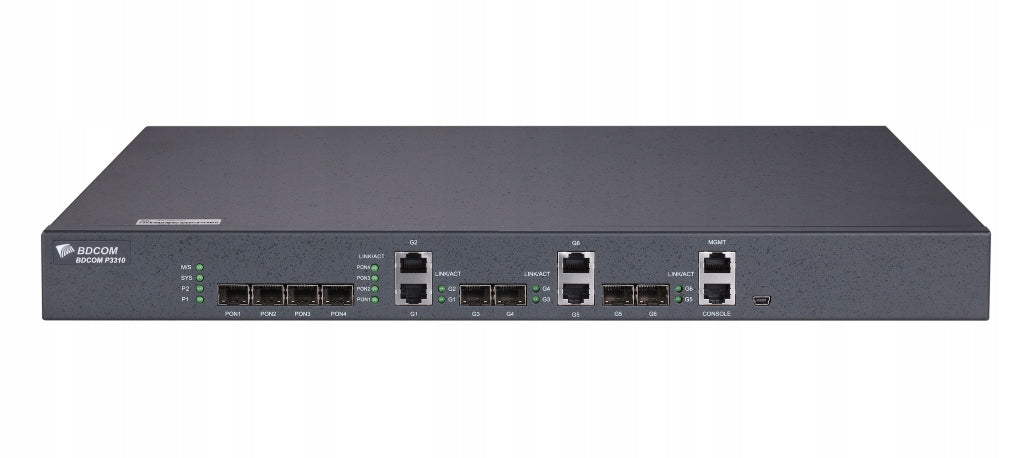

OLT BDCOM P3310D

OLT P3310D is an OLT device with four PON ports (one external 10/100 + one console port + four fixed PON ports (in addition to the OLT SFP module) + two optical Gigabit SFP ports + two Gigabit combo ports + two electric Gigabit ports, a 90-264V AC power supply, a 19" rack mount enclosure and a power supply).

The BDCOM P3310 OLT can support 1.25 Gbps symmetric PON transmission , efficiently utilizing bandwidth and Internet services, enabling service providers to provide reliable services to their customers. Devices with a connection factor of 1:64, supported by various hybrid ONU networks, significantly reducing transport costs.

The main advantages of the GEPON OLT P3310C-AC from BDCOM:

• BDCOM P3310 is a series of optical network devices that can compete on the market. The device is capable of handling up to four EPON networks
• System capacity: BDCOM P3310 with PON card module supports one to four systems simultaneously, up to 256 ONI devices with 1/64 link ratio
• Device size: 1U device is placed in a small space, with low power consumption, which reduces the cost of use
• It has power supply from 2 sources; EPON: P3310 supports 802.3ah and PRC industrial standard communication (YD/T 1475-2006)
• Output interface: The sophisticated design supports different groups of MAN interfaces. Electrical or optical port is selected depending on network conditions
• Fiber Optic Bus Protection: BDCOM P3310 is able to automatically disconnect connections when fiber optic cable is disrupted

• Manufacturer: BDCOM
• Model: P3310D
• Type: EPON OLT
• PON ports: 4
• GE connection: 2 GE TX ports + 2 GE SFP ports + 2 GE SFP/TX combo ports
• Supported SFP GPON module: PX20, PX20+, PX20++
• RJ45 console: 1
• Mini-USB console: 1
• Out-of-Band: 1
• DRAMA: 128 MB
• Flash memory: 32 MB
• Backplane: 20 Gbps
• MAC table: 8 K
• Buffer size: 512 MB
• Jumbo frame: 2 KB
• Active VLAN: 4094
• SVI total : 1
• Redirect mode: Save and forward
• MTBF: 100000 h
• Certification: CE, FCC, ROHS
• Standards: IEEE802.3ahYD-T 1475-2006 access network requires EPONYD-T 1771-2008 base access network requires EPONChina Telecom EPON standard CTC2.1/3.0Ethernet - II intercom
• Multicast: Multicast L2IGMP snoopingMLD snoopFast-leave
• VLAN: VLAN based on ports/IP/protocols/MAC4K VLANQinQ and flexible QinQ
• QoS: Backflow control (half-duplex) IEEE 802.3x flow control (full duplex)IEEE 802.1p, CoSWRR, SP and FIFOO queue schedule uplink/downlink speed limit based on each ONUDBA and SLA
• Reliability: One-way link detection (UDLD)Hot swap optical module EPON optical path protection (type B/C, hand-in-hand)Detection of abnormal ONU luminescence, e.g. long luminescenceIEEE 802.3ad LACP
• Network security: L2~4 ACLACL flow-based MACMAC limitation stickyPort isolationPackage storm controlEncryption of transmission data on the PONOchron interface against DDOS, TCP- SYN-flood, UDP-flood, ARP-flood, etc. attacks.
• Management: Different management modes such as CLI, Telnet, SSH, HTTP, SSL and SNMPISSUFTP/TFTPNTP debugging output
• Network availability: STP/RSTP/MSTP BPDUEAPS
• AC: 90 ~ 264 V
• DC: 36~72 V
• Power sockets: 1 (fixed, optional 2)
• Max consumption: 40 W
• Total BTU output power (note: 1000 BTU/h = 293W): 136.52
• Number of fans: 2
• Air flow: Left-right
• Noise at 25°C: < 45 dBA
• Dimensions (WxDxH): 442 mm x 315 mm x 44 mm
• Weight: 3.5 Kg
• Working temperature: 0~45°C
• Working humidity (non-condensing): 10%~85%
• Storage temperature: -40°C-80°C
• Storage humidity (non-condensing): 5%-95%
