Elektroninė durų akutė su vaizdo įrašymu ir judesio jutikliu

Trumpai apie prekę

Prekė: Elektroninė durų akutė su vaizdo įrašymu ir judesio jutikliu. Kategorija: IP kameros.

• Gamintojas: Spreest
• Modelis: 550A

We present the electronic door viewfinder brand Spreest – a modern device that will increase safety and comfort in your home, apartment or office.

Thanks to it, you no longer have to bend down to look through the traditional "Judas", and additionally you gain features that allow you to record visitors and monitor what is happening in front of your door.

With a 4,3" color LCD display and a camera with a 120° wide-angle lens, the device delivers clear images both day and night with built-in infrared LEDs. The doorbell function and the ability to record when motion is detected ensure that you always know who visited you, even during your absence. Support for microSD memory cards up to 64GB allows you to store a large number of recordings and photos.

Key functions

1. Built-in PIR motion sensor: Automatically detects movement in front of the door and allows you to take a photo or record a 10-second video clip.

2. Huge color LCD display 4,3": Allows you to conveniently view the image from the camera without having to bend down.

3. 120° wide viewing angle: Provides a complete picture of what is happening in front of your door.

4. Night mode: Built-in two IR LEDs allow visibility in total darkness up to 5 meters.

5. Doorbell function: When you press the doorbell button, you will hear a pleasant signal, and the device will automatically take a photo or record a 10-second video.

6. Support microSD cards up to 64GB: Allows you to store large amounts of data. When memory is full, the oldest recordings are automatically overwritten.

7. Long battery life: Built-in 2400 mAh battery provides up to 120 days of operation on a single charge.

8. Simple and non-invasive installation: Fits 99% of doors with a thickness of 35-120 mm and openings with a diameter of 14-22 mm.

Ease of installation

The device is very easy to install and can be installed in four quick steps:

1. Preparation of the viewfinder: Select a screw with a length corresponding to the thickness of the door and screw it into the hole at the back of the viewfinder. Place the viewfinder in the door opening, making sure the signal wire and screws stick out on the other side.
2. Frame mounting: Put the signal tape through the top slot and the screws through the bottom slot of the metal frame. Slide the frame up so that the screws are in the narrower part of the holes. Make sure that the arrow on the frame is pointing upwards.
3. Stabilization: Mount the frame on the door and tighten the screws to stabilize the viewfinder and frame.
4. Display Connection: Plug the signal connector into the socket in the display and slide the display onto the frame on the door.

Safety and convenience

The electronic viewfinder makes it easy to control who is standing in front of your door every day. Motion detection function with PIR sensor allows you to automatically record unusual behaviors, which increases the safety of your home. You can also manually take a picture while viewing the situation behind the door.

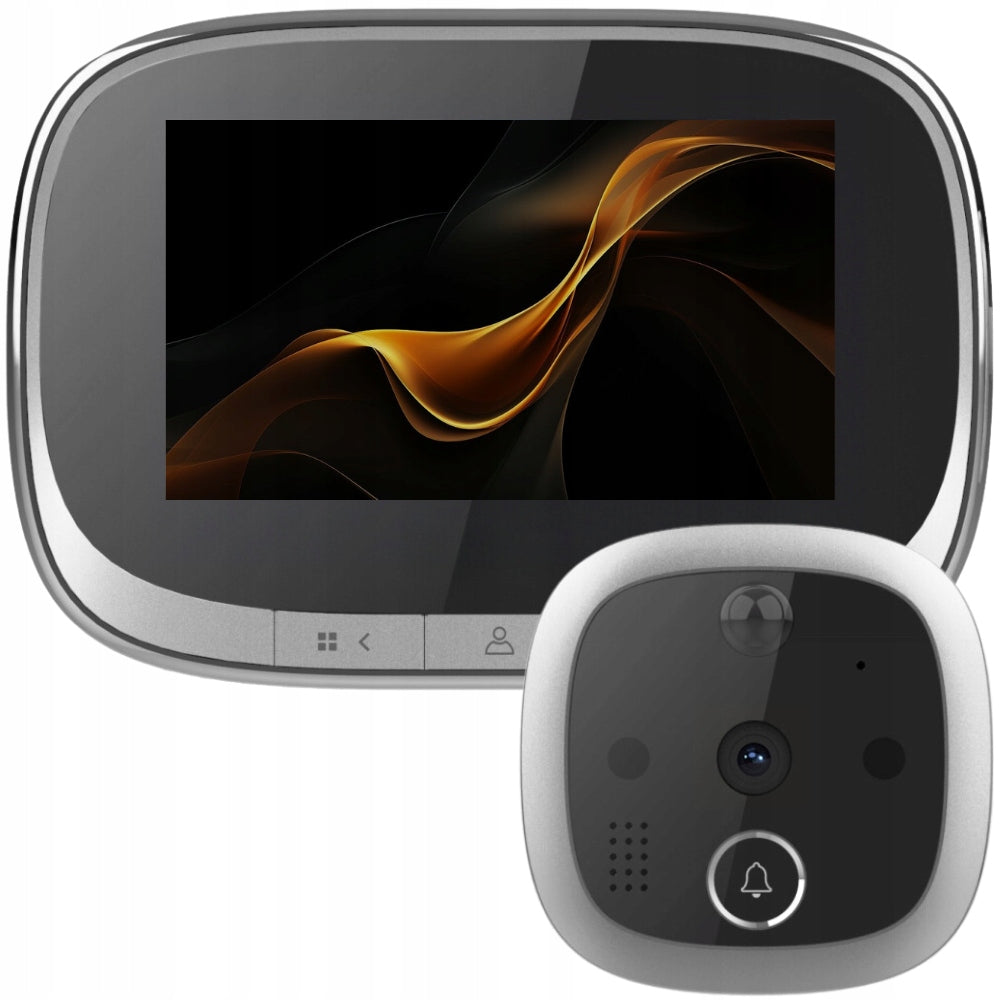

Viewfinder and bell elements

1. Large color LCD display 4,3 inch – provides a clear live image and the ability to view saved photos and recordings, which makes it easier to identify people in front of the door.

2. Color camera lens – a high-quality camera captures a clear image, allowing you to identify people standing in front of the door.

3. PIR motion sensor – automatically detects movement in front of the door, activating the camera and recording, which increases the level of security.

4. Built-in IR LEDs – allow you to see at night, providing protection and monitoring even after dark.

5. Bell button – allows guests to easily notify household members of their presence.

6. Browse button to the right – allows quick access to the photo gallery or clips saved on the device.

7. Preview button – allows you to quickly check the current image from the camera, without the need to enter the menu.

8. Menu button and left button – allows you to turn on the menu and navigate through the configuration options.

Technical specification

• Display: Color LCD 4,3" (1280x720 px)
• Camera: Colour CCD camera with 120° wide-angle lens
• Motion sensor: PIR
• Night mode: 2 IR LEDs, visibility up to 5 m
• Door thickness: Fits doors with a thickness of 35-120 mm
• Mounting hole: Can be installed in holes with a diameter of 14-22 mm
• Power supply: Built-in 2400 mAh battery (up to 120 days of operation)
• Bell function: Yes
• Photo Capture Function: Yes (automatically when you press the doorbell or manually during preview)
• Video recording function: Yes (10-second clips when motion is detected or ringtone is pressed)
• Support memory cards: microSD up to 64GB (not included)
• Automatic on/off: Yes (turns on when motion is detected or the bell is pressed, turns off after 15-25 s)
• Memory formatting capability: Yes

The set includes

• 1x Electronic Viewfinder 550A
• 1x Bell
• 1x Mounting Accessories
• 1x MicroUSB charging cable
• 1x User Manual

Instructions in Polish in electronic version available in the attachment for download. You can find it under our product description.

Link to the user manual in Polish: https://hackmd.io/@spreest-manuals/B176pBzpxx

Link to the instruction manual in Czech: https://hackmd.io/@spreest-manuals/Bk23_BTjWl

Link to the instruction manual in Slovak: https://hackmd.io/@spreest-manuals/S1B0dBas-x

Link to the instruction manual in Hungarian: https://hackmd.io/@spreest-manuals/H1OaOHasbe

• EAN: 5905935378871
• Manufacturer code: Electronic viewfinder 550A
• Model: 550A
• Brand: Spreest
• Condition: New
• Packaging condition: Original

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.5 kg
Parametry	EAN (GTIN)	5905935378871
Parametry	Manufacturer code	Wizjer elektroniczny 550A
Parametry	Brand	Spreest
Parametry	Model	550A
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	yes
Parametry	Kind	internal,external
