Elektrinis šildytuvas, 5 kW, su ventiliatoriumi ir reguliavimu

Trumpai apie prekę

Prekė: Elektrinis šildytuvas, 5 kW, su ventiliatoriumi ir reguliavimu. Kategorija: Oro šildytuvai.

• Gamintojas: MAX
• Modelis: 5kw

PRODUCTS OF THIS BRAND are designed for both professionals and DIYers and are characterized by durability, solid workmanship and what is extremely important nowadays competitive price.

This brand has been present on the Polish market for over 20 years

The priority of our activity is to provide recipients with goods that meet their expectations. To this end, we are constantly expanding our offer, which currently includes about 1000 articles.

TECHNICAL DATA:

• Power supply: 400V~50Hz
• Power: 5000W
• Temperature control: 0-85°C
• Power adjustment: 30 / 2500 / 5000W
• Weight with packaging: 8 kg
• Dimensions: 265 x 255 x 345mm

The 5000W electric heater is an efficient solution for clean and safe heating. It will be successfully used for heating residential premises, but also commercial ones such as warehouses, garages, basements, workshops, etc.

The housing of the device is made of metal, thanks to which it improves heat dissipation from heaters, and is also resistant to workshop conditions and mechanical damage. The handle at the top allows you to carry the device even while working. The cover made of steel wire protects the interior against interference of objects, animals and children.

Thanks to the electrical power supply, the device does not generate excessive noise, bad odors and can be activated wherever we have access to electricity. The power supply used also allows for high efficiency at a relatively low weight. This also translates into ease of use and easy storage and portability of the device.

The fan used allows for good circulation of warm air and faster heating of the room. The motor is equipped with a thermal switch. The heaters are made of a special alloy of copper and stainless steel, making them extremely efficient. The heater also has a thermostat to prevent overheating, which significantly increases safety and comfort of use.

If you want to adjust the air heater to your needs. you can use the selection calculator prepared by us

For patient and accurate, we provide a formula for calculating the required heat output

V x ΔT x K = kcal/h

V – volume of the room to be heated (width x length x height) in m³

ΔT – temperature increase required (°C)

K – thermal insulation coefficient

Legend

V = width 4 m, length 12 m, height 3 m, volume of the room to be heated = 144 m³

ΔT = indoor temperature without heating -5°C, room temperature +18°C, T = 23ºC

K = coefficient depending on the type of construction and insulation

K=3.0-4.0

Simple building made of wood or corrugated sheet - Uninsulated

K=2.0-2.9

Simple structure, single layer of bricks, simple windows and roof - Poor insulation

K=1.0-1.9

Standard construction, double brick guard, few windows, standard closed roof - Medium insulation

K=0.6-0.9

Advanced construction, double insulated brick, few double windows, solid foundation,

roof made of well-insulating materials - Good insulation

Example:

144 x 23 x 4 = 13,248 kcal/h = 15.4 kW/h

(V x ΔT x K = kcal/h)

1 kW/h = 860 kcal/h

1 kcal/h = 3,97 Btu/h

1 kW/h = 3412 Btu/h

1 Btu/h = 0,252 kcal/h

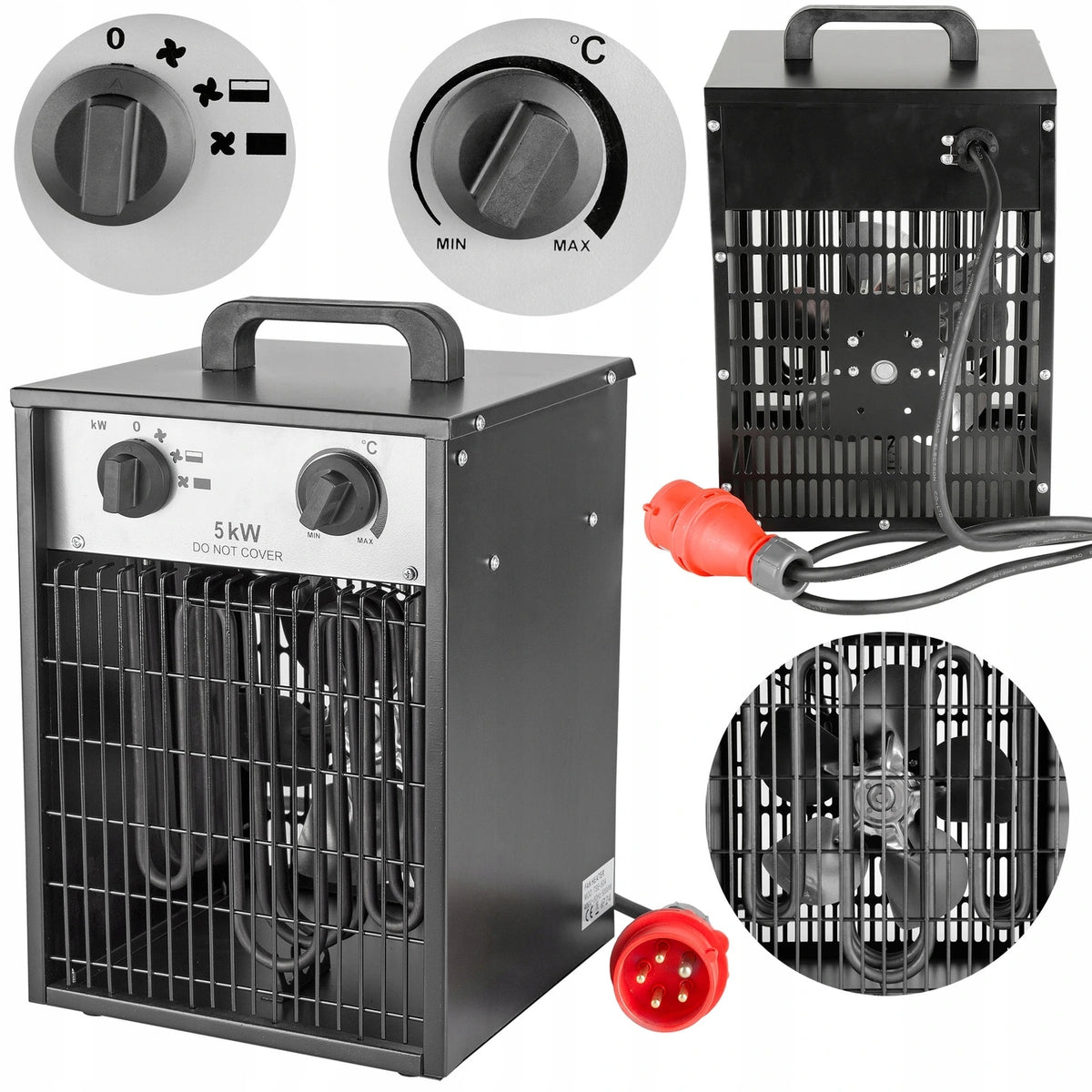

The heater can work in 3 modes:

• Fan (without heating),
• Fan with 1 heater
• Fan with 2 heaters (full power).

In addition to the operating mode adjustment knob, we also have a temperature control, which is smooth and can be set with high accuracy.

On other auctions we also have heaters in other sizes and with different power.

.

• Electric heater
• Operating instructions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	Without a VAT invoice
Parametry	Brand	MAX
Parametry	Kind	electric
Parametry	Manufacturer code	5kw
Parametry	Energy efficiency class	A
Parametry	Range of energy efficiency classes	no energy class
