Ekrano modulis Pico 4,2" E-Ink 3 spalvų, 400x300, skirtas Raspberry Pi

Trumpai apie prekę

Prekė: Ekrano modulis Pico 4,2" E-Ink 3 spalvų, 400x300, skirtas Raspberry Pi. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 20345

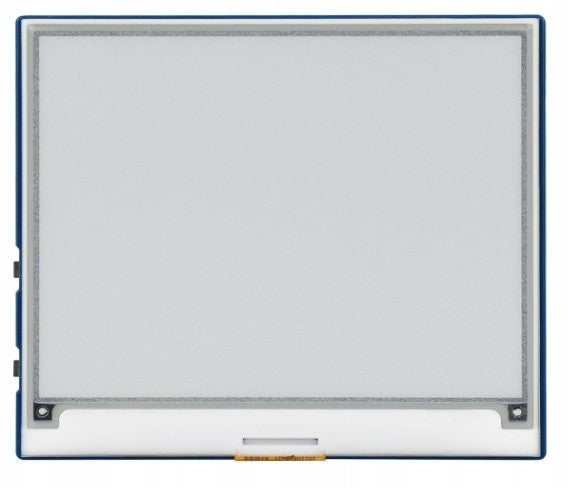

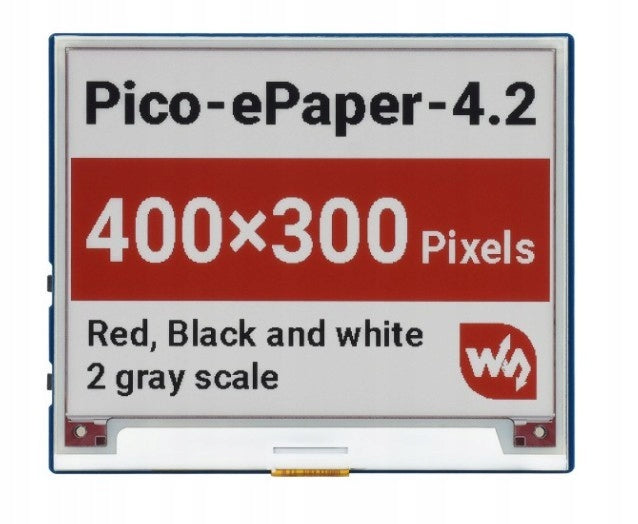

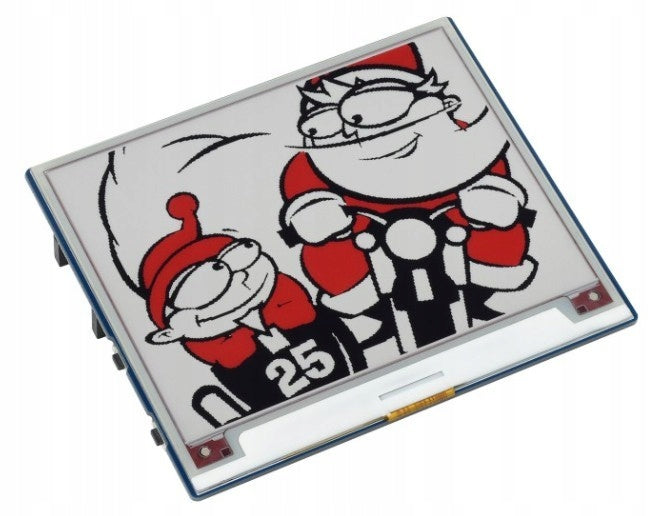

e-Paper Pico 4,2" (B) E-Ink 3-color 400x300 module for Raspberry Pi Pico - Waveshare 20345

Description

Module with 3-color (red, black, white) e-Paper display with a diagonal of 4,2" and a resolution of 400x300 px designed to work with Raspberry Pi Pico. It has the ability to display content with a two-stage grayscale, and the built-in controller realizes communication using the SPI interface. Displays of this type are characterized by high contrast of the displayed image and draw current only if the displayed content changes. The module is equipped with a voltage level converter and is compatible with 3,3 V and 5 V systems. Full documentation with examples of use are available on the product wiki.

Note!

The kit does not include a Raspberry Pi Pico. They must be purchased separately.

Description of exits

Properties

• Diagonal 4,2"
• Resolution: 400x300 px
• Interface: SPI
• Spot size: 0,212 × 0,212 mm
• Display Color: Red, Black, White
• Grayscale: 2
• Full refresh time: 15 s
• Refresh power: 26,4 mW (Typ. )
• Standby power: < 0,017 mW
• Viewing angle: > 170°
• Voltage: 3,3 V to 5 V
• Contour dimensions: 93,5 x 78,5 mm
• Display dimensions: 84,8 x 63,6 mm

Comes with

• Module with Pico-ePaper-4.2-B display
• 4 x distance

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Waveshare 20345
Parametry	Manufacturer	WaveShare
Parametry	Kind	Display
Parametry	EAN (GTIN)	5906623425891
