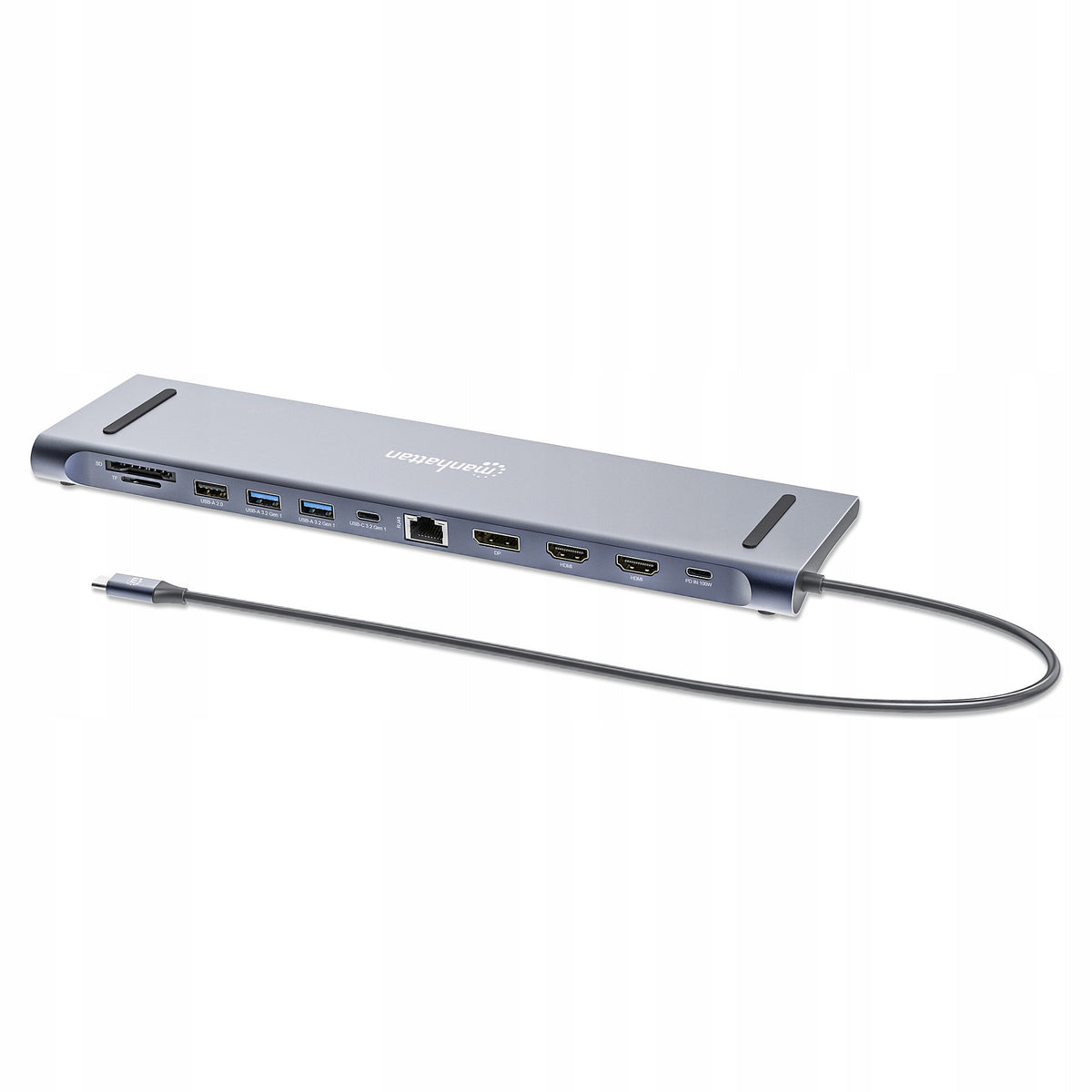

Dokavimo stotelė Manhattan 12-in-1, USB-C, 4K, USB-A, Ethernet, SD

Trumpai apie prekę

Prekė: Dokavimo stotelė Manhattan 12-in-1, USB-C, 4K, USB-A, Ethernet, SD. Kategorija: USB šakotuvai.

• Gamintojas: Manhattan
• Modelis: 190305

Manhattan Dockingstation 12-in-1 is an extensive USB-C-connected docking station that offers simultaneous port expansion, network support and video outputs. It allows you to transfer images at resolutions up to 3840 x 2160 at 60 Hz and data transfer up to 5 Gbit/s via USB 3.2 Gen 1 interface.

The device is equipped with two HDMI 2.0 outputs and one DisplayPort 1.4, a gigabit 10/100/1000 Ethernet port and a set of USB-A and USB-C ports (including USB 2.0 port and USB 3.2 Gen 1 ports). The station supports SD and microSD cards (maximum size according to specifications: 2 GB) and provides USB power with up to 100 W, allowing you to power compatible laptops and peripherals.

The construction is made of silver-colored aluminum, the dimensions of the device are 80 x 284 x 17 mm, and the weight is about 300 g. The USB cable is 0,5 m long. The station is compatible with Windows (Windows 7, 8, 8.1, 10, 11), Android and ChromeOS.

Specification

• Host Interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• Connectivity Technology: Wired
• Number of USB 2.0 ports: 1
• Number of USB 3.2 Gen 1 Type-A ports: 2
• Number of USB 3.2 Gen 1 Type-C ports: 2
• Maximum USB power: 100 W
• Number of HDMI Ports: 2
• HDMI Version: 2.0
• Number of DisplayPort: 1
• DisplayPort Version: 1.4
• Headphone Outputs: 1
• HDCP version: 2.3
• Number of Ethernet LAN ports (RJ-45): 1
• Data transfer rate over Ethernet LAN: 10/100/1000 Mbit/s
• Supported memory card types: MicroSD, SD
• Maximum memory card size: 2 GB
• Data transfer rate: 5 Gbit/s
• HD Type: 4K Ultra HD
• Maximum digital resolution: 3840 x 2160 px
• Number of Displays Supported: 3
• Maximum refresh rate: 60 Hz
• Product Color: Silver
• Housing Material: Aluminum
• Power Type: USB
• Power Connector: USB Type-C
• Operating Voltage: 5 - 20 V
• Output Current: 5 A
• USB cable length: 0.5 m
• Temperature range (operation): 0 - 60 °C
• Temperature range (storage): -10 - 80 °C
• Relative humidity range: 5 - 90%
• Product Width: 80 mm
• Product depth: 284 mm
• Product height: 17 mm
• Product weight: 300 g
• Supported Operating Systems: Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, Android, ChromeOS
