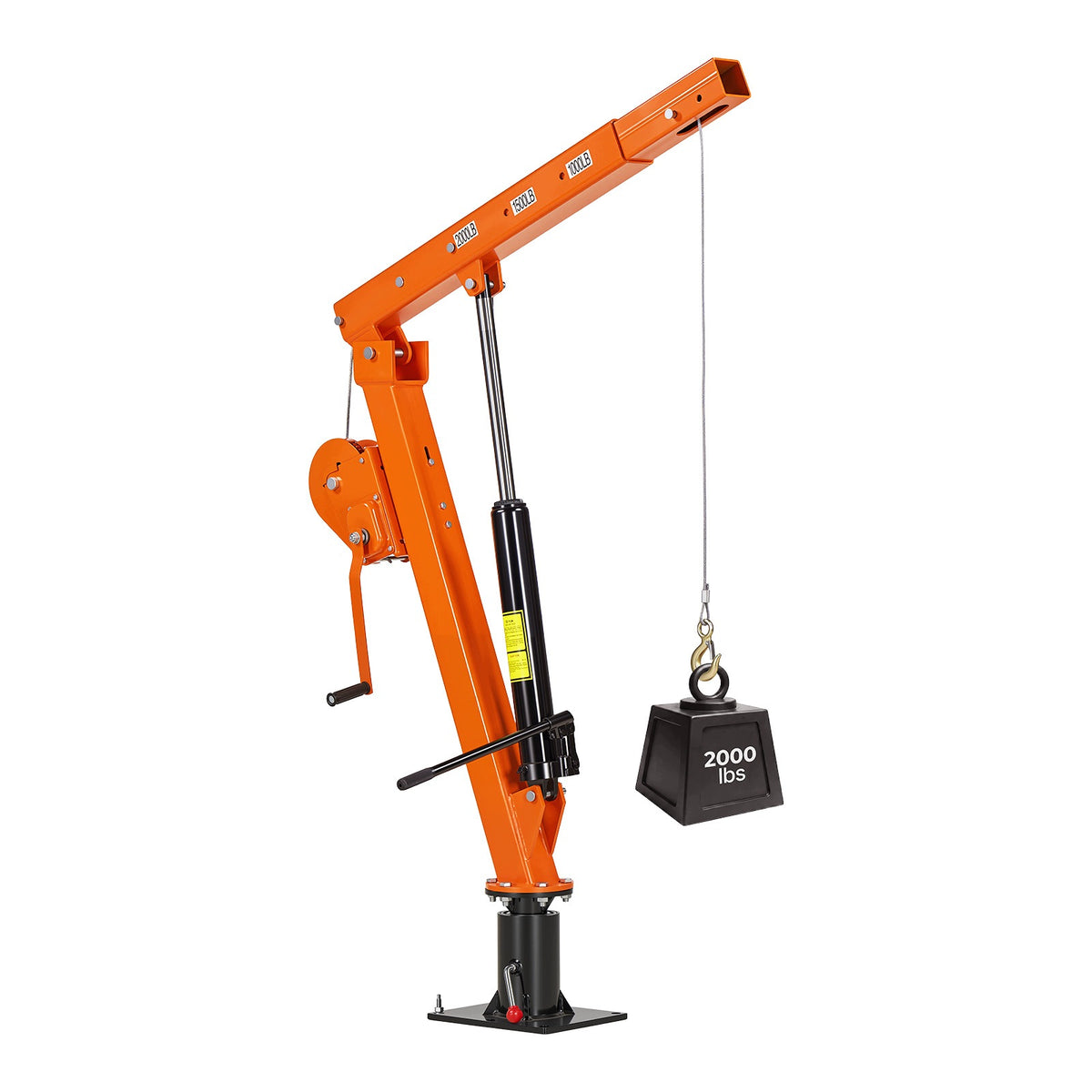

Dirbtuvių kranas su teleskopiniu strėliu, 907,2 kg keliamoji galia

Trumpai apie prekę

Prekė: Dirbtuvių kranas su teleskopiniu strėliu, 907,2 kg keliamoji galia. Kategorija: Variklių stovai ir keltuvai.

• Gamintojas: Vevor
• Modelis: CXKSDCZDJSDJE8

Versatile applications in lifting

Our loading crane is suitable for one person to load machinery, furniture, building materials, hay bales, agricultural equipment and heavy parts. It is compatible with pickups, vans, and platform trucks, and provides reliable support when lifting heavy loads.

High load capacity

360° rotation

telescopic boom

Protection against rust

Wide range of applications

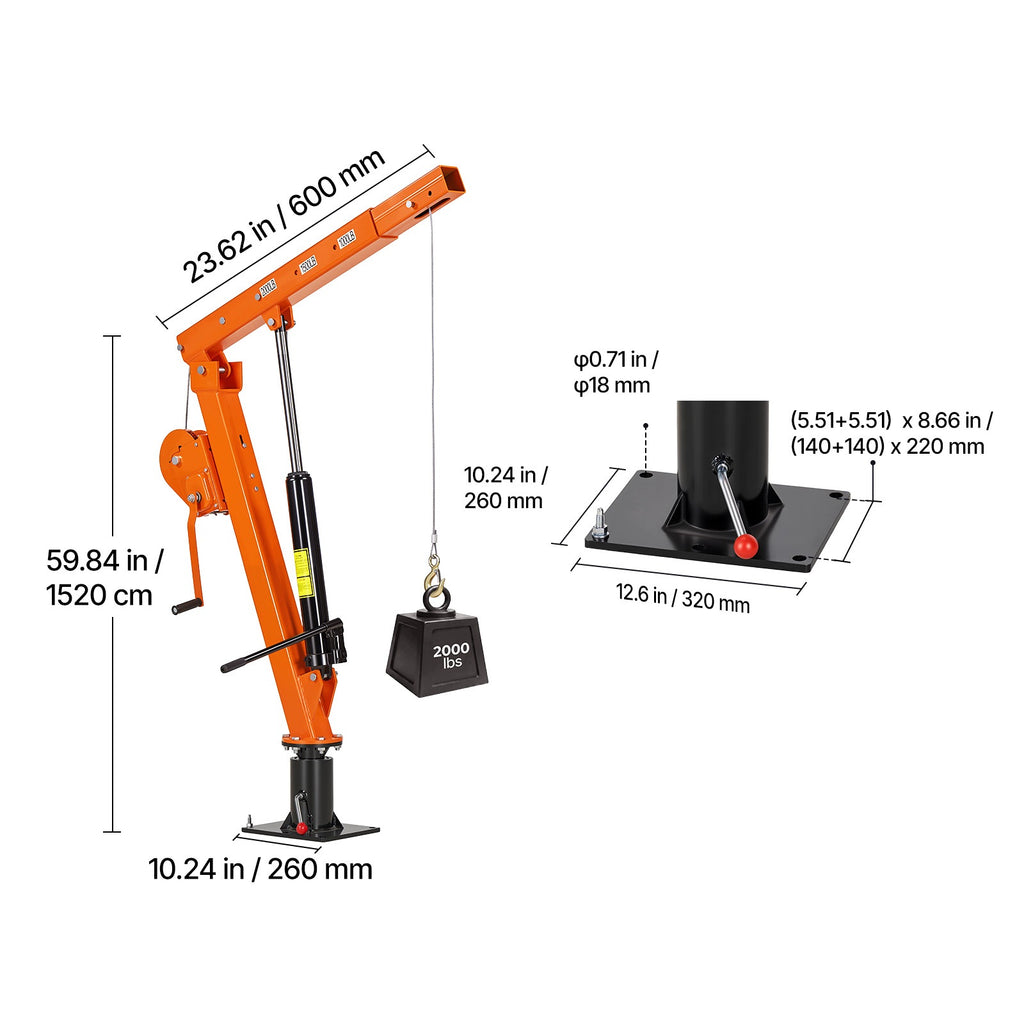

Specifications

Article model number: HZ-04

Load capacity: 2000 lbs / 907,2 kg

Rotation distance range: 27,6 – 41,3 inches / 700 – 1050 mm

Boom area: Hook chain: 42,5 – 55 inches / 1080 – 1400 mm; Winch: 40 – 52,7 inches / 1020 – 1340 mm

Boom height range: 17,8 – 78,7 inches / 450 – 2000 mm

Main Material: Carbon Steel

Net weight: 176,37 pounds / 80 kg

Product Dimensions: (Minimum Size) 23,62 x 10,24 x 59,84 inches / 600 x 260 x 1520 mm

Product Dimensions: (maximum size) 57,09 x 10,24 x 59,84 inches / 1450 x 260 x 1520 mm

High Efficiency Galvanized Steel

This car crane is made of galvanized steel, making it resistant to deformation and cracks caused by long-term, intensive use.

360° rotation

The crane in the truck can be easily rotated to position heavy objects in any horizontal direction, thus facilitating loading and unloading.

Reinforced thick-walled pipes

Thanks to the construction using reinforced pipes with thick walls, this crane is resistant to bending and guarantees stable lifting operation without deformation.

Foldable storage space

The folding design of the truck built-in crane allows quick storage, compact transport and saving space in the loading zone.

Use in multiple scenes

This reliable crane is ideal for loading and unloading machinery, furniture, building materials, hay bales, agricultural equipment, heavy parts and many other things, with the task being performed by one person.

Lifting with steel rope

The thickened steel rope can be stretched up to 8 m. It works with a manual winch, making it ideal for heavy-duty equipment and demanding tasks.

Package Contents

1 x Pick-up Crane

1 x User Manual

Key features

Maximum lifting capacity of 907,2 kg / 2000 lbs: This robust crane is made of high-strength alloy steel and combines a hydraulic cylinder with an attached manual winch (1179,3 kg / 2600 lbs). This makes it ideal for removals, lifting equipment, and commercial loading operations.

360° rotation for smooth rotation: This boom crane is equipped with a two-bearing rotary system, ensuring extremely smooth and stable rotation. Combined with boom extension and adjustable supports, it offers a lifting range of 45 to 200 cm, making it easy to load and unload.

Telescopic boom: The adjustable crane offers a boom length of 0,94 to 1,3 m (37 to 51 inches) for different working radii. This reduces the risk of cargo collisions with the vehicle and improves safety during loading and unloading.

Rust protection: This loading crane is made of galvanized steel with a protective coating and is designed to resist rust, wear, and damage caused by weather conditions, thus ensuring smooth operation both indoors and outdoors.

Storage and assembly: The base and boom of the car crane can be folded for easy storage. Repeated disassembly during storage or transport is unnecessary, which saves time and space.
