Dahua dviejų laidų jungiklis VTNS2003B-2

Trumpai apie prekę

Prekė: Dahua dviejų laidų jungiklis VTNS2003B-2. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Dahua
• Modelis: VTNS2003B-2

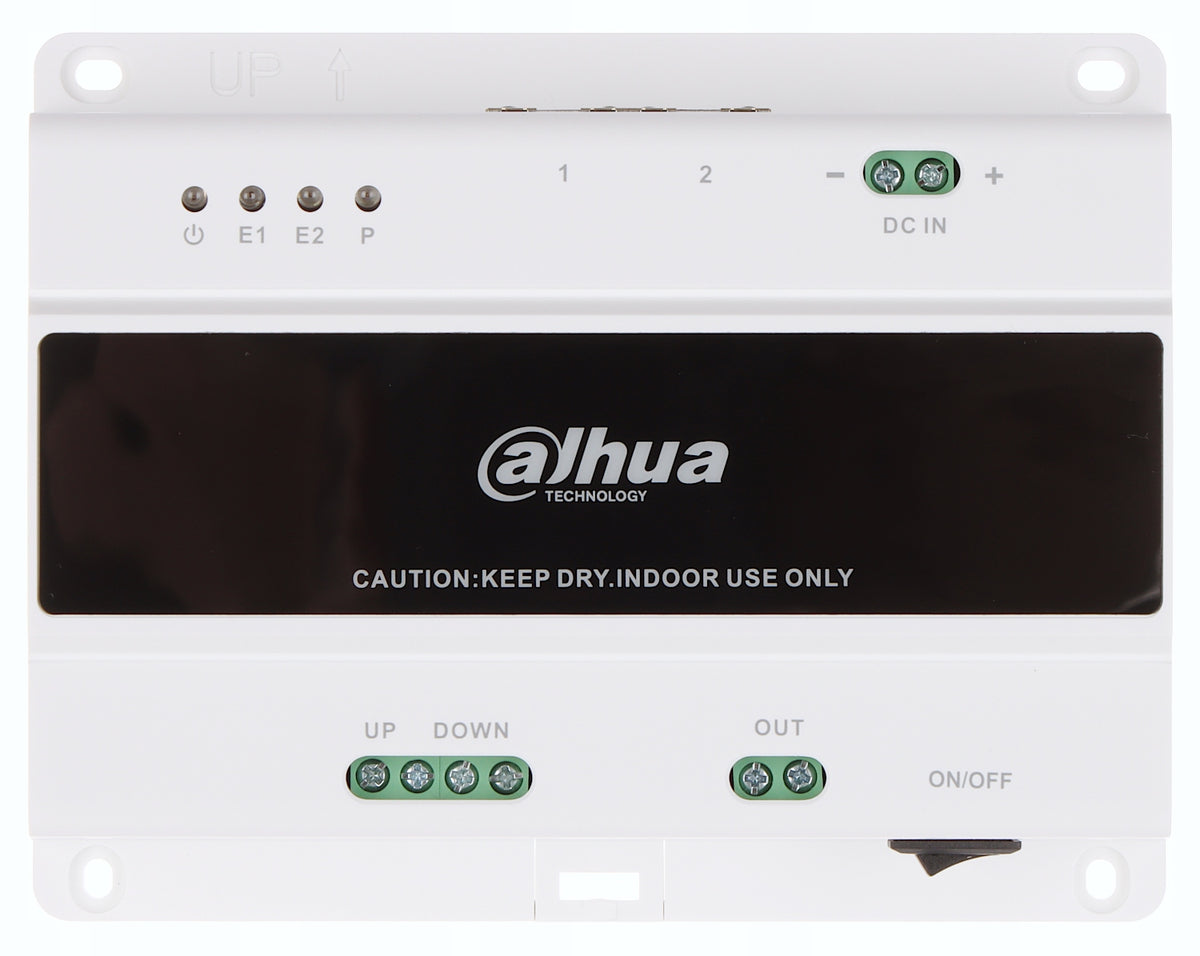

The 2-Wire Dahua VTNS2003B-2 controller is a modern device that has become video intercoms and panels in the Dahua 2-Wire standard (2 conductors). VTNS2003B-2 is a key element during system installation and allows you to expand it with IP functions.

The device has been equipped with a 2-wire terminal, thanks to which we can use up to 20 monitors and 2 gate panels of the 2-Wire system to connect. The connector has the ability to transmit signal and power. The VTNS2003B-2 allows you to connect the entire system to the LAN via the RJ45 port. In addition, the switch is equipped with additional bus outputs for cascading connection (max. 10 such devices).

Features of VTNS2003B-2:

– Supports 10-level cascade via 2-wire port

– Possibility of signal transmission and power supply

– Central element in 2-wire system (2-Wire)

– Supports connection to 20 internal monitors and 2 gate stations

Specification

• Model: VTNS2003B-2
• Manufacturer: Dahua
• Main: Main
• Condition indicator lamp: 4
• Communication mode: 2-wire
• Number of controllers in the cascade: Max. 10
• Interface: Interface
• Ethernet: 2x RJ45 10/100Mbps
• 2-Wire: 1x terminal connector, screw
• 2-Wire cascade: 2x terminal connector, screw
• Power supply: 1x terminal connector, screw
• Other: Other
• Certificates: CE, FCC, UL 2021-01-20
• Housing: PC + ABS
• Power supply: 48V DC, 1A–3A
• Power consumption: Max. 15W (KIT)
• Assembly: Wall-mounted or DIN rail
• Moisture: 10%~95% (non-condensing)
• Working temperature: -10°C ~ +55°C
• Weight: 250g
• Dimensions (Width /length /H ): 131.1x40x103mm
