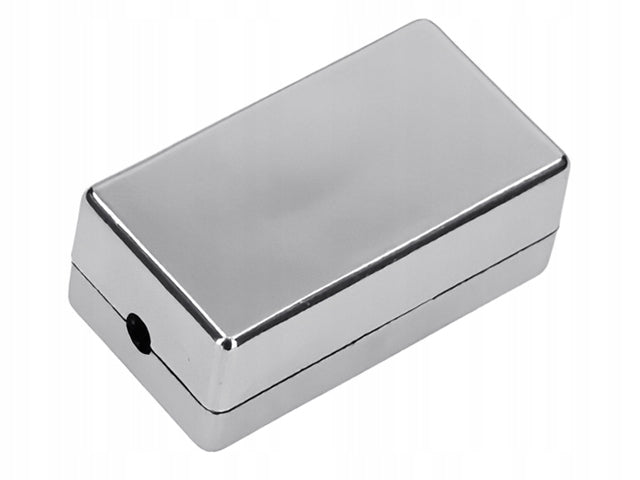

Cat 5E FTP ekranizuota jungčių dėžutė LSA

Trumpai apie prekę

Prekė: Cat 5E FTP ekranizuota jungčių dėžutė LSA. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Stratos
• Modelis: 32385

Catalog No: 32385

The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/32385.htm

The offered connector is used to connect two shielded twisted pair cables (FTP/STP). Thanks to the connector, we can connect the cut cable or extend the existing one with full shielding and transmission in the cat.5e standard (class D, band up to 100MHz).

The design of the connector (LSA/KRONE connectors) allows you to make quick and reliable connections using a typical LSA presser (available in our offer). Colorful markers on numbered contacts make it easy to assign contacts to the appropriate wires of the combined twisted pair computer, metallized housing provides shielding and resistance to external interference, clamp ties allow you to immobilize the connected wires, structural holes are used for e.g. fixing the connector to the ground.

The connector meets the requirements of cat.5e (class D, band 100MHz) and allows operation in 100Mbps networks.

• Category: 5e (Class D, 100MHz band)
• Connectors: 2x8 LSA/KRONE type contacts (marked with colors consistent with the colors of twisted pair cables)
• Dimensions (length/width/height): 66/36/26mm
• Weight: approx. 39g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
