Trumpai apie prekę
Prekė: CAN modulis Raspberry Pi, 2 kanalų, 2-CH CAN HAT. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 17912

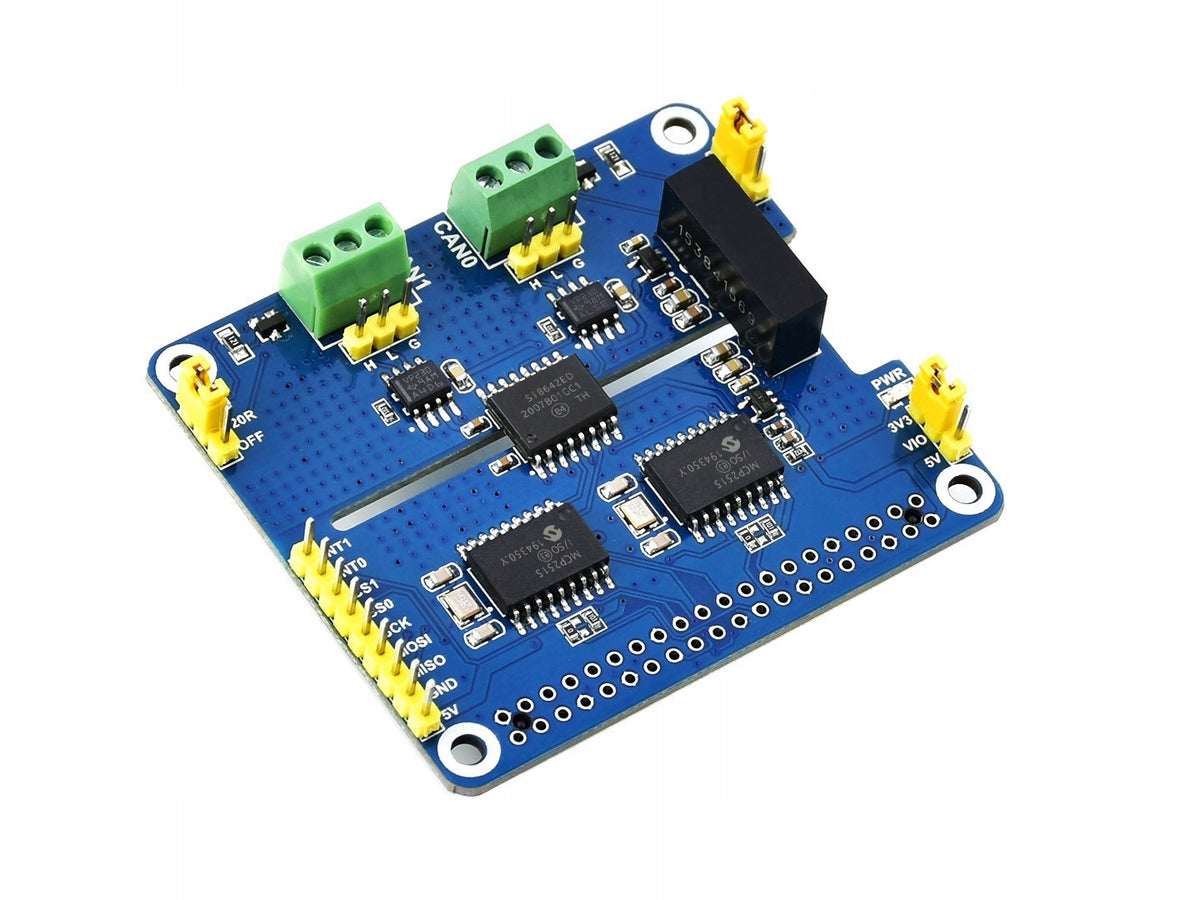

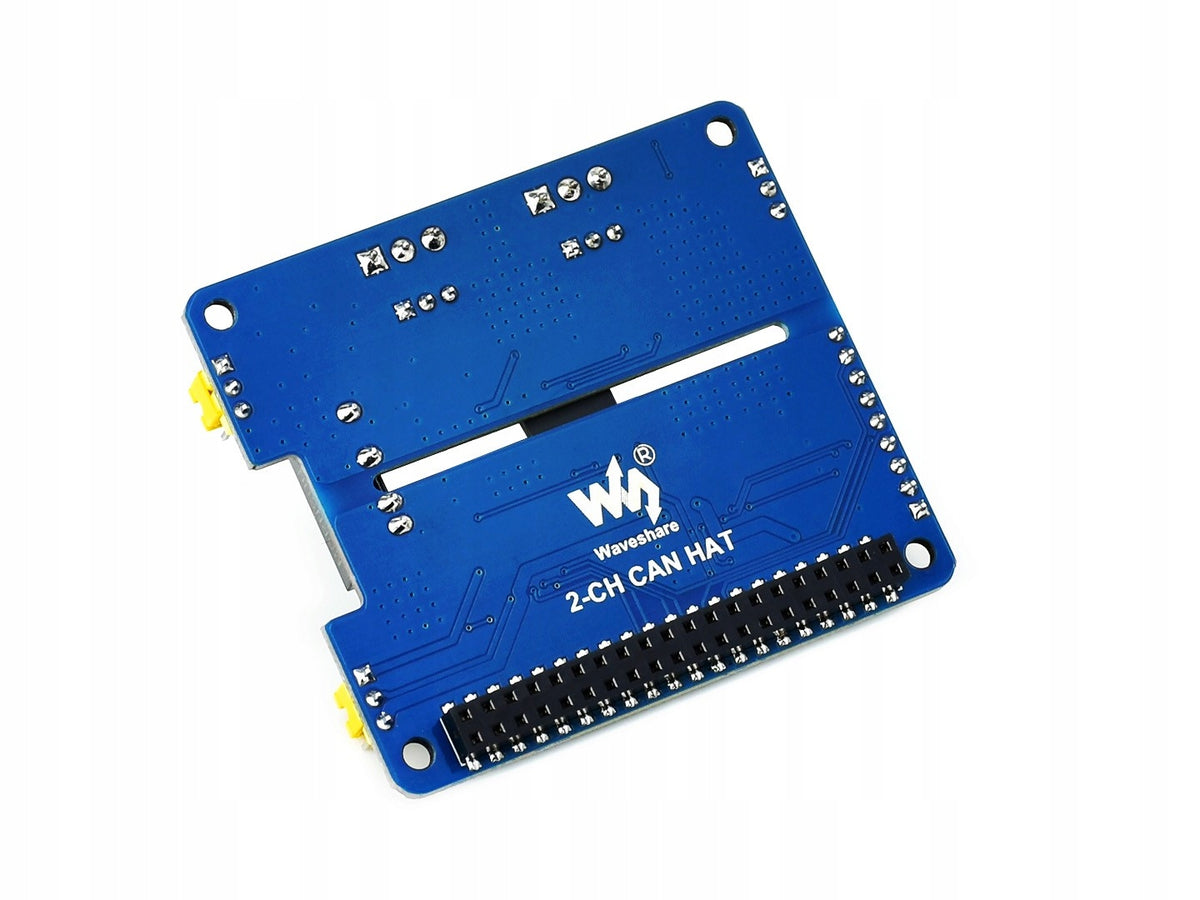

2-CH CAN HAT - CAN module for Raspberry Pi
Description
HAT expansion module dedicated to minicomputers Raspberry Pi. On the board there is a CAN controller based on MCP2515 and SN65HVD230 chips, which allows you to add two CAN interfaces to the project. It is powered by a voltage of 5 V, and the applied protection and insulation ensures proper operation of the device even in the event of signal interference. The module communicates with the Raspberry Pi via SPI interface with a voltage level of 3,3 V or 5 V. It will be used in industrial applications for communication between system components. Full documentation is available on the product page.
Properties
- Standard Raspberry Pi GPIO 40-pin connector
- 2 x CAN bus
- MCP2515 and SN65HVD230 controller
- Built-in power isolation
- Built-in TVS (Transient Voltage Suppressor) diode, effectively suppresses surges
- Built-in resistor 120 Ω, incorporated into the circuit by jumper settings
- Operating voltage: 3,3 V/5 V
- Dimensions: 65 x 56,5 mm
Comes with
- Module 2-CH CAN HAT
- Female connector 2x20 pins
- Set of screws
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 17912 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Case |
| Parametry | EAN (GTIN) | 0614961956728 |
| Parametry | Batteries included | no |
