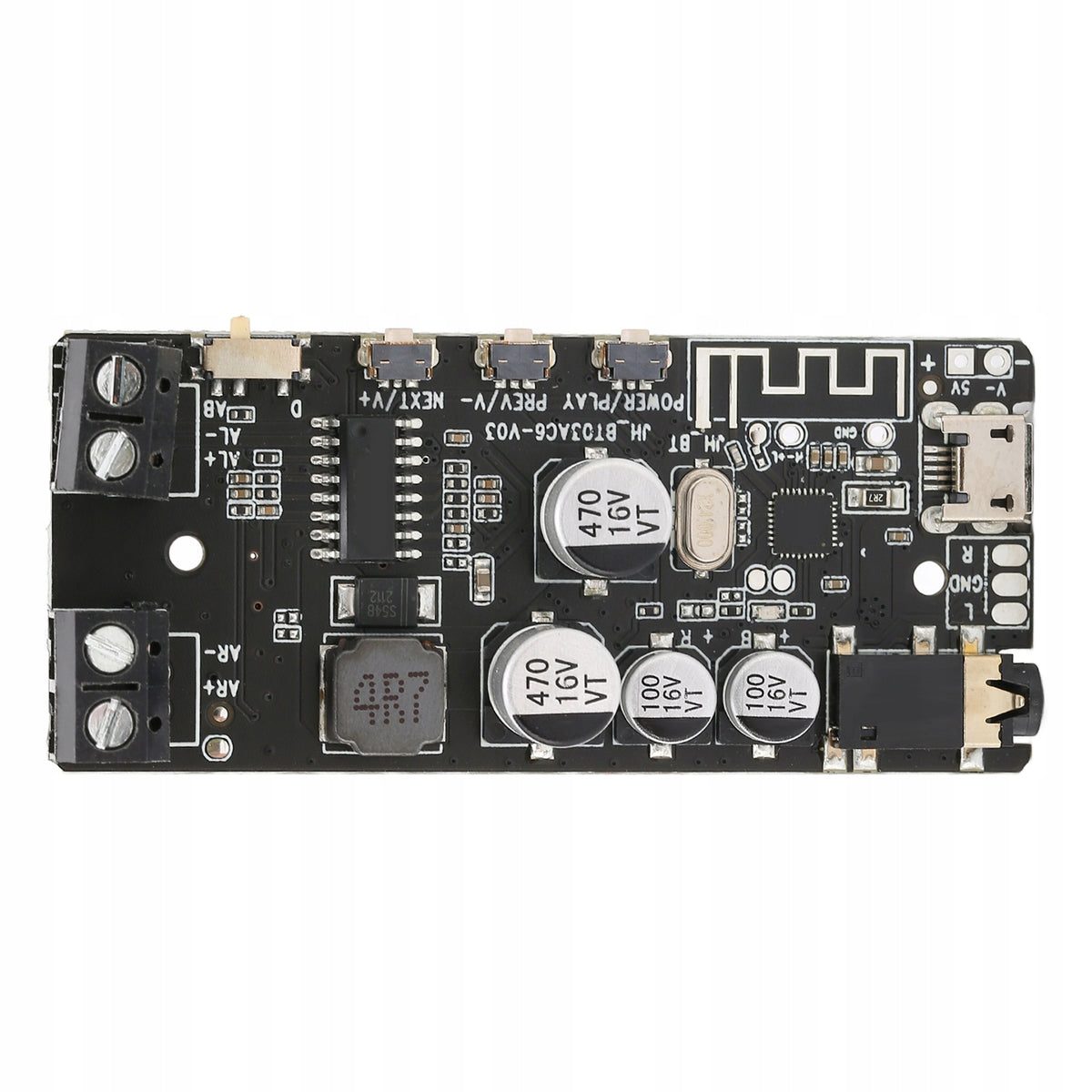

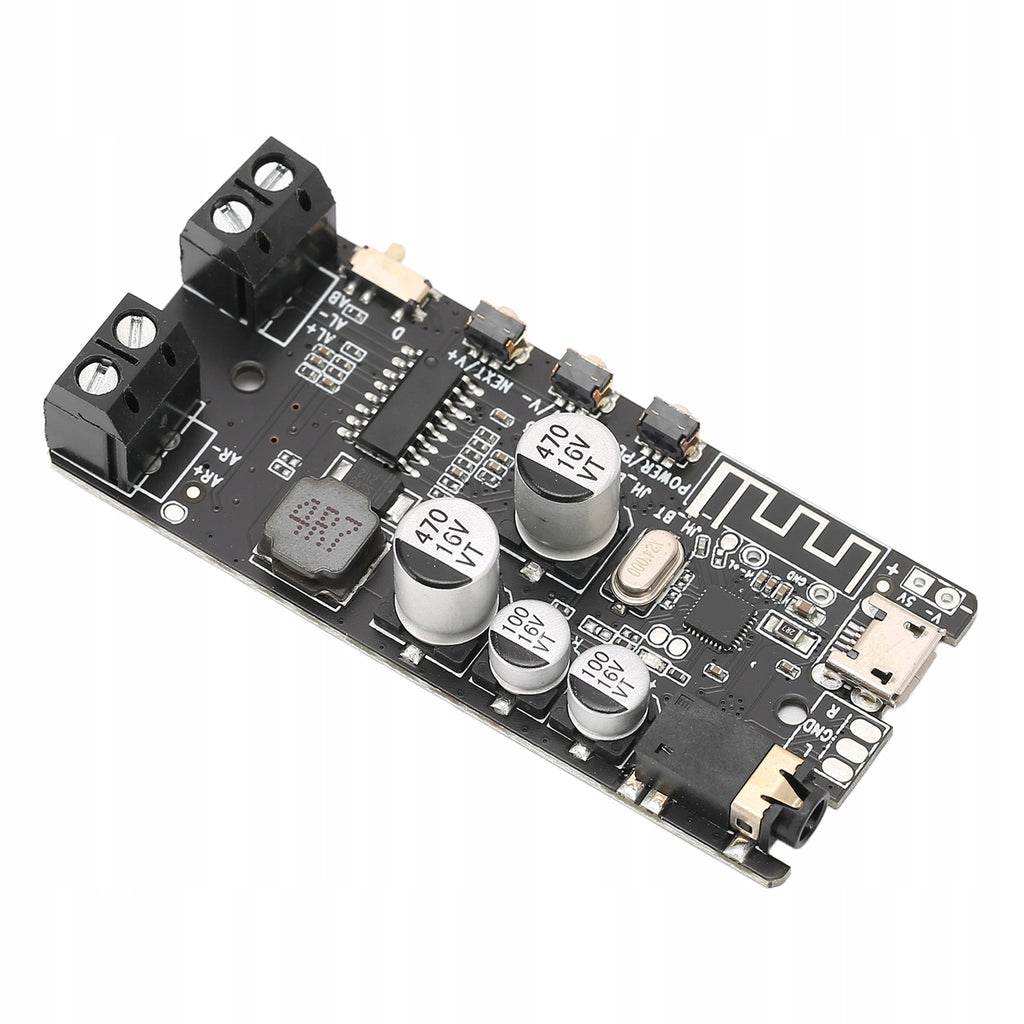

Bluetooth imtuvas Modu, stereo stiprintuvas 2x5W, Bluetooth 5.0, su 5M

Trumpai apie prekę

Prekė: Bluetooth imtuvas Modu, stereo stiprintuvas 2x5W, Bluetooth 5.0, su 5M. Kategorija: Maitinimo šaltiniai ir įkrovikliai.

• Gamintojas: no brand
• Modelis: AG250806101254

Function:

1. [Bluetooth 5.0 Chip and Micro 5p Interface Powered] Bluetooth 5.0 Chip, Stable Transmission; Micro 5P Interface Power Supply, you can use ordinary 5V2A mobile phone charger.

2. [Button Control] The Bluetooth power adapter amplifier question is with button control, it is convenient to control the songs up and down, increase and decrease, play, pause, overflow machine, etc.

3. [Host Output] Group X2 Guest Output Ports (one for each left and right kanau) cannot be used with a dryer plug at the same time. Output interface: stereo 3,5mm (reserved solder connections, you can tinker)

4. [3,5 mm dryer plug] When feeding the dryers, the device automatically switches to the dryer output and stops the signal from the output port of the power amplifier python.

5. [Stereo Amplifier Output] The Bluetooth phone, laptop and tablet signal can be received to the stereo output, also associating with the usual 3,5mm dryers. (without microphone, does not support gos chat)

Specification:

• Item Type: Bluetooth DIY Receiver Modu
• Matter: PCB
• Bluetooth version: v5.0
• Bluetooth Name: JH-BT
• Maximum receiving distance: more than 10m / 33ft
• Output Power: 2x5w stereo
• Output Mode: AB/D NaSelectable
• Driver's Hostel Impedance: 2-4-8 Ohm Hostel
• Power supply interface: Micro USB 5V DC (recommended 5V/3A, if 5V/2A power supply is used, due to the large operating current in Class D mode, it must be switched to Class AB mode, it is recommended to play more power in Class D mode large) users to introduce their own USB adapter and micro power supply (reserved in welding, this model does not support 5V battery power supply).
• Dryer output interface: stereo 3,5 mm
• Host output interface: 2x2pin/5mm spacing (cannot be sent to power amplifier)
• Speaker: 2-8 OHM 5-10 W can be connected accordingly, 4 ohms 10 W are recommended.
• Installation: When installing Bluetooth queries, the Bluetooth antenna should not be as close to the metal parts as possible so as not to interfere with the transmission distance.
• SNR: 90dB
• Total harmonic distortion +haas70dB
• Crosstalk86DB
• DNR: 91DB
• Transmission protocol: A2DP/AVCTP/AVDTP/HFP

How to use:

• Remove the product and use it.
• List of packages

:

• 1 x Bluetooth Receiver Mode
