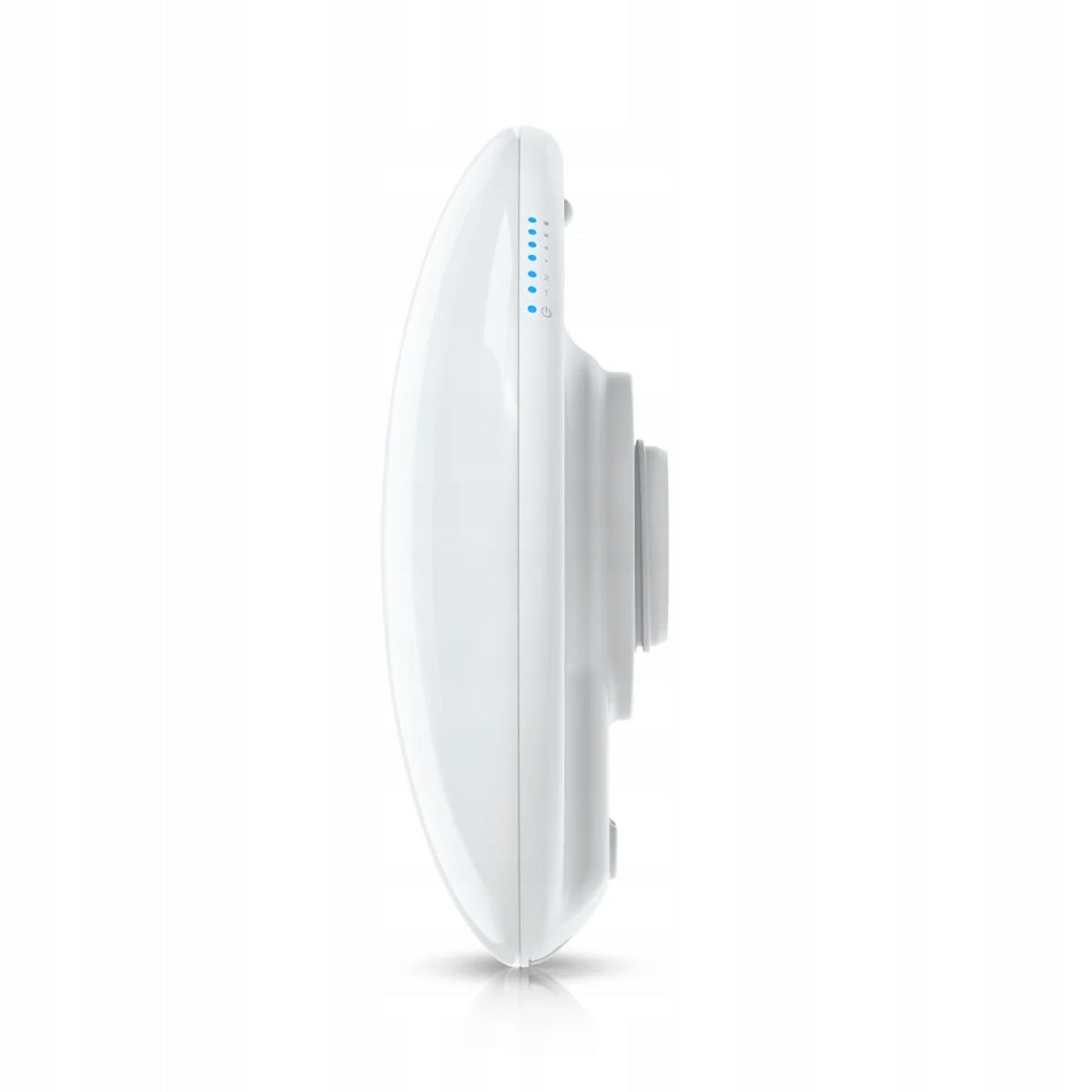

Belaidis tiltas Ubiquiti UDB-Pro, 802.11ac Wi-Fi 5

Trumpai apie prekę

Prekė: Belaidis tiltas Ubiquiti UDB-Pro, 802.11ac Wi-Fi 5. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Ubiquiti
• Modelis: UDB-Pro
• Plotis: 120 mm
• Aukštis: 230 mm

EAN: 810084698051

SKU: UDB-Pro

> Network bridge 866,7 Mbit/s

> Single-Band Wi-Fi (5 GHz) Wi-Fi 5 (802.11ac)

> Gigabit Ethernet Wired LAN

> Polycarbonate (PC), IPX6 stainless steel

> Antenna design: Internal 2x2 19 dBi

> White

Ubiquiti UDB-Pro. Maximum data transfer rate: 866,7 Mbit/s. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 19 dBi. Wi-Fi Frequency: Single Band (5 GHz), Basic Wi-Fi Standard: Wi-Fi 5 (802.11ac), Frequency Band: 5 GHz. Ethernet LAN interface type: Gigabit Ethernet, Data transfer rate over Ethernet LAN: 10,100,1000 Mbit/s, Communication standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Connectivity technology: Wired and Wireless

Weight and sizes

• Product height: 189.5 mm

• Product depth: 64.3 mm

• Product width: 189.5 mm

• Product weight: 515 g

Antenna

• Antenna type: 2x2

• Antenna gain level (max): 19 dBi

• Antenna design: Internal

Power

• DC input voltage: 42.5 - 57 V

• Maximum power consumption: 9.0000

• PoE support: Yes

• Power over Ethernet: 48.0000

• Power Type: DC, PoE

Certificates

• Certificates of conformity: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Data transmission

• Maximum data transfer rate: 866.7 Mbit/s

Contents of the pack

• Wires: Alternating current

• Power supply included: Yes

• Mounting bracket included: Yes

Wireless LAN Features

• Modulation: 16-QAM, 256-QAM, 64-QAM, BPSK, QPSK

• Signal strength: 25 dBm

• Wi-Fi: Yes

• Maximum range in open ground: 5+ km

• Basic Wi-Fi Standard: Wi-Fi 5 (802.11ac)

• Wi-Fi frequency: Single_band__5_GHz_

• Frequency band: 5 GHz

Working conditions

• Temperature range (operation): -40 - 60

• Relative humidity range: 5 - 95

Packaging data

• Quantity per pack: 1.0000

Features

• IP rating: IPX6

• Materials: Polycarbonate (PC), Stainless steel

• Reset button: Yes

• Mounting type: Handle

• Power LED Indicator: Yes

• LEDs: LAN, Power supply, Signal power

• Product type: Network bridge

• Product color: White

Network

• Ethernet LAN interface type: Gigabit Ethernet

• Communication standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n

• Wired LAN: Yes

• Data transfer speed over Ethernet LAN: 10,100,1000 Mbit/s

Ports and interfaces

• Power over Ethernet Plus (PoE+) number of ports: 1

• Number of Ethernet LAN ports (RJ-45): 2

• Communication technology: Wired and Wireless

Protection

• Encryption / security: WPA2-AES

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Ubiquiti
Parametry	Mode of operation	Bridge
Parametry	Band	5 GHz
Parametry	Internal modem	no modem
Parametry	Number of LAN (RJ-45) ports	2
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Width	120 mm
Parametry	Height	230 mm
Parametry	Product weight with unit packaging	0.8 kg
Parametry	EAN (GTIN)	810084698051
Parametry	Manufacturer code	UDB-Pro
Parametry	Model	UDB-Pro
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11ac (Wi-Fi 5)
Parametry	Wireless operation standard	802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4)
