Belaidis tiltas TP-Link EAP215-Bridge KIT, 5 GHz, iki 5 km, suderinamas su Omada

Trumpai apie prekę

Prekė: Belaidis tiltas TP-Link EAP215-Bridge KIT, 5 GHz, iki 5 km, suderinamas su Omada. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP215-Bridge
• Plotis: 224 mm
• Aukštis: 60 mm

Wireless, indoor/outdoor Omada Bridge, 5 GHz 867 Mbps, up to 5 km away

• Wi-Fi in 802.11ac standard and speeds up to 867 Mbps in 5 GHz band
• Ideal solution for wireless data transmission over distances up to 5 km
• Automatic pairing and LEDs for easy deployment
• 3x Gigabit Ethernet ports provide fast connections for IP cameras
• Centralized and remote management with integration with Omada SDN
• Housing with IP65 protection class and 6 kV lightning protection allow you to work in all weather conditions
• Flexible deployment with Passive PoE support (adapter included)

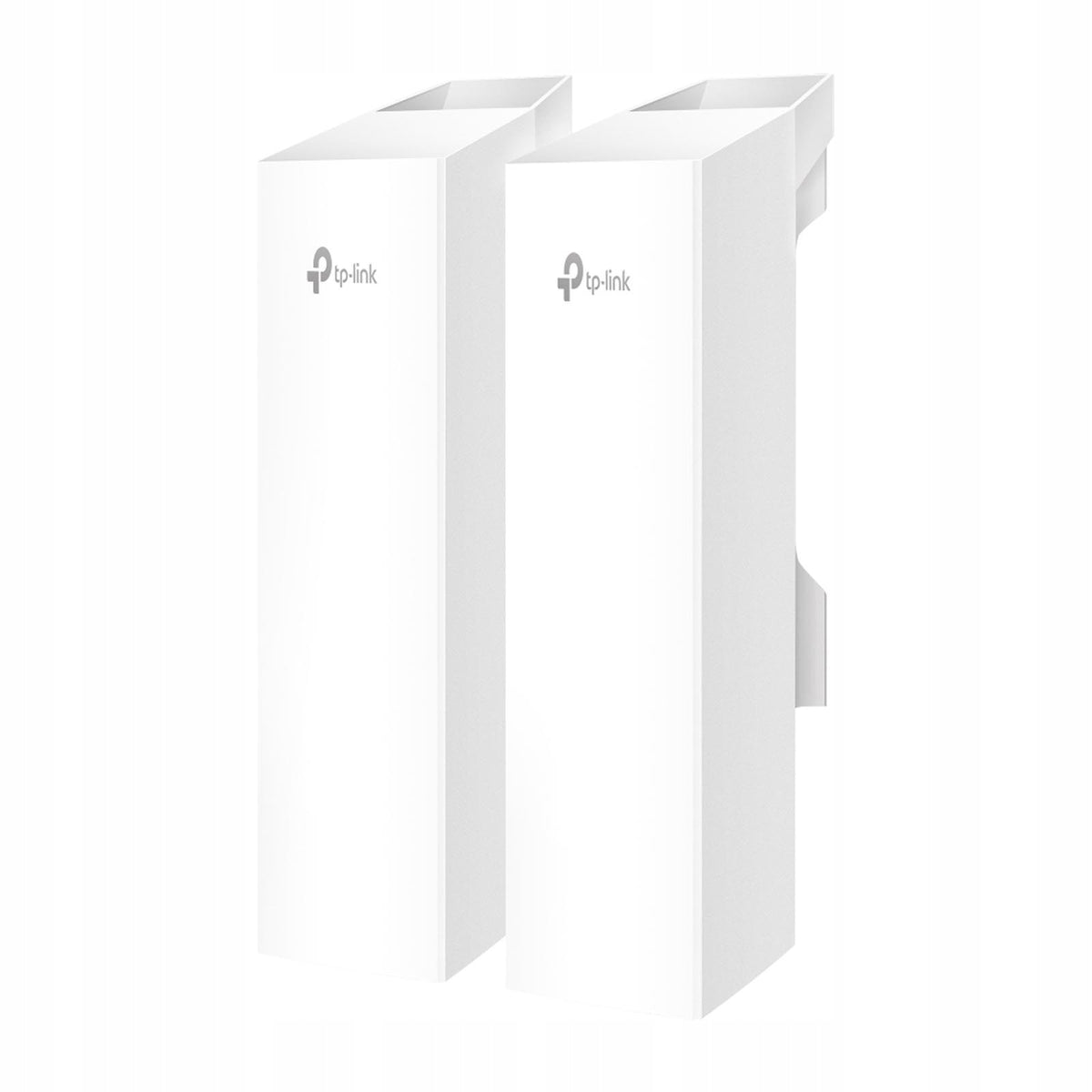

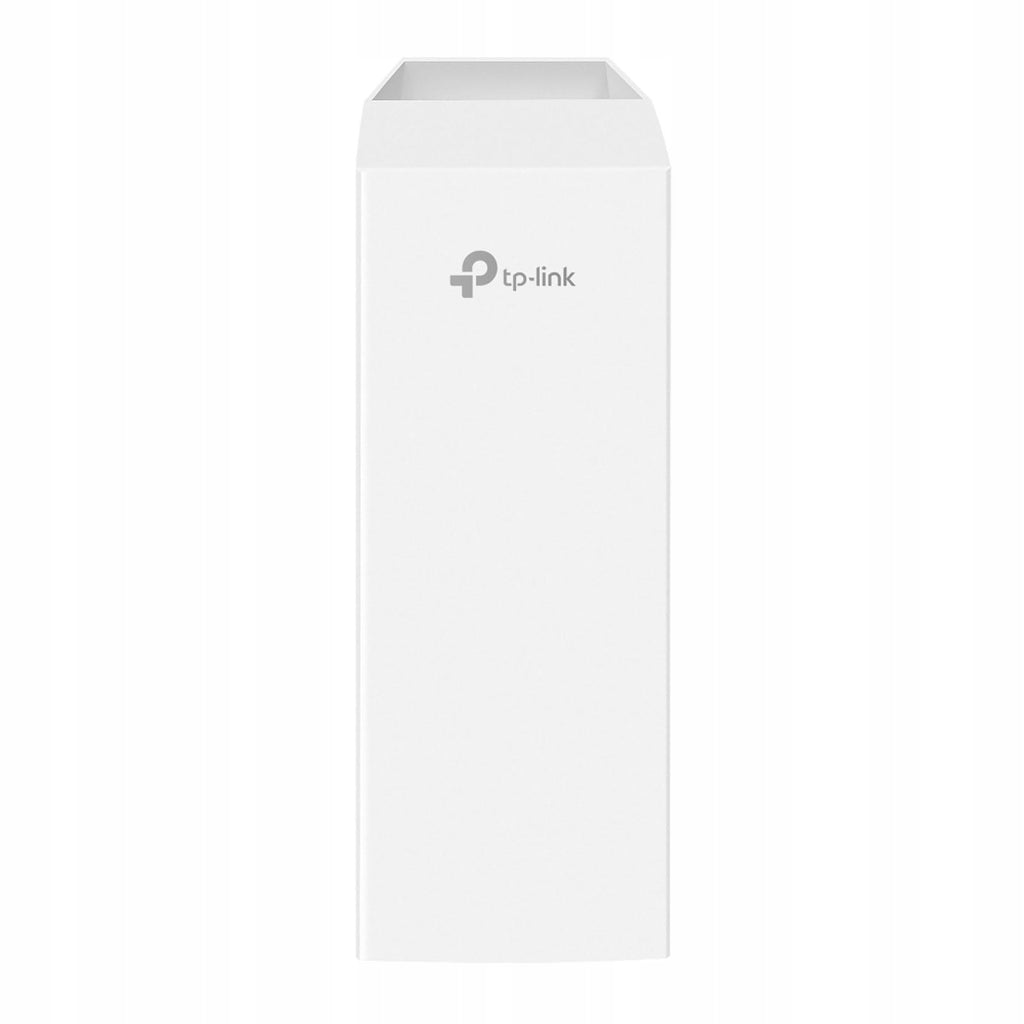

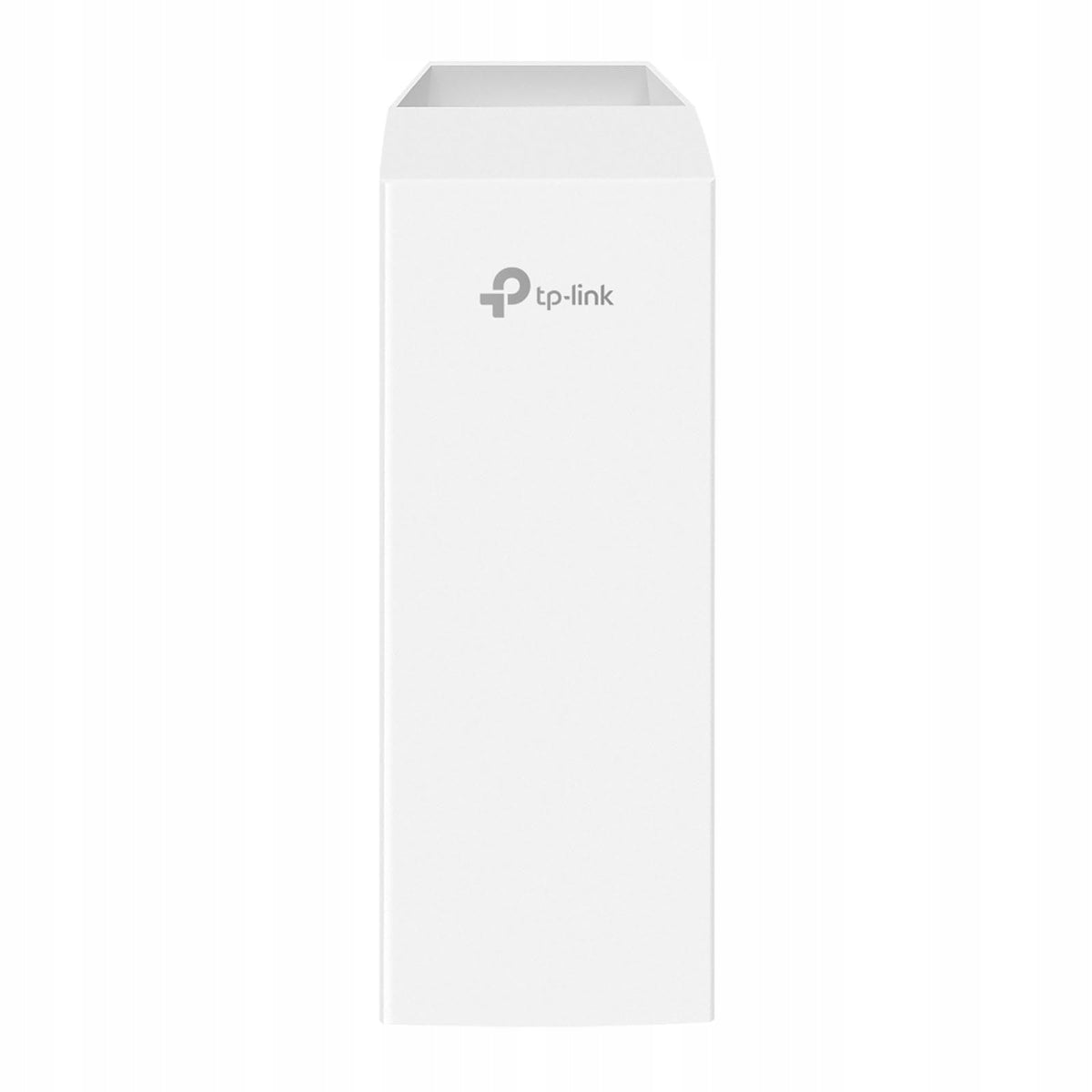

TP-Link EAP215-Bridge KIT

TP-Link EAP215-Bridge KIT is a wireless, internal/external Omada Bridge, operating in the 5 GHz band with a bandwidth of up to 867 Mb/s.

TP-Link EAP215-Bridge KIT is a set of two wireless bridge devices allowing you to transmit WIFi signal over long distances up to 5km. It's the perfect solution for setting up networks in remote locations.

TP-Link EAP215-Bridge KIT has three gigabit Ethernet ports and two internal, directional antennas with an energy gain of 11 dBi, enabling the creation of an efficient computer network, e.g. to operate surveillance cameras.

The device uses MU-MIMO technology, enabling simultaneous sending and receiving of data from multiple connected devices, which significantly improves the operation of the wireless network.

The EAP215-Bridge devices operate in the 5GHz band in the 802.11ac standard and allow data transfer at speeds up to 867 Mbps over a distance of up to 5 km.

Directional antennas with a high gain of 11 dBi allow for seamless Wi-Fi transmission even in the most demanding environmental conditions.

In addition, the possibility of power supply via passive PoE (adapter is included with the device) allows you to mount the device in places where we do not have access to an electrical outlet.

Reliable operation of the device in even the most difficult environmental conditions is guaranteed by weather-resistant housing with IP65 certificate and lightning protection 6 kV.

Support for advanced features such as Omada Mesh, MU-MIMO, Beamforming and Airtime Fairness provides not only excellent performance, but also network performance optimization.

With centralized cloud management through the Omada SDN platform and automatic pairing, installing and managing the EAP215-Bridge bridge is extremely simple and efficient, allowing you to focus on key aspects of your business.

EAP Controller software allows for central management of multiple access points. It makes it much easier to set up and expand networks, even in multiple locations. Thanks to it, you can remotely update software on connected devices, monitor work in real time or plan a wireless network by visualizing the range. It also allows you to create a unique hotspot welcome page and introduce various types of authentication (e.g. by Facebook or SMS). The software is completely free.

The device can be mounted on a pole, appropriate mounting hardware is included in the kit.

Power supply is via passive PoE (24 V) or 12V power supply - power supplies with passive PoE are included.

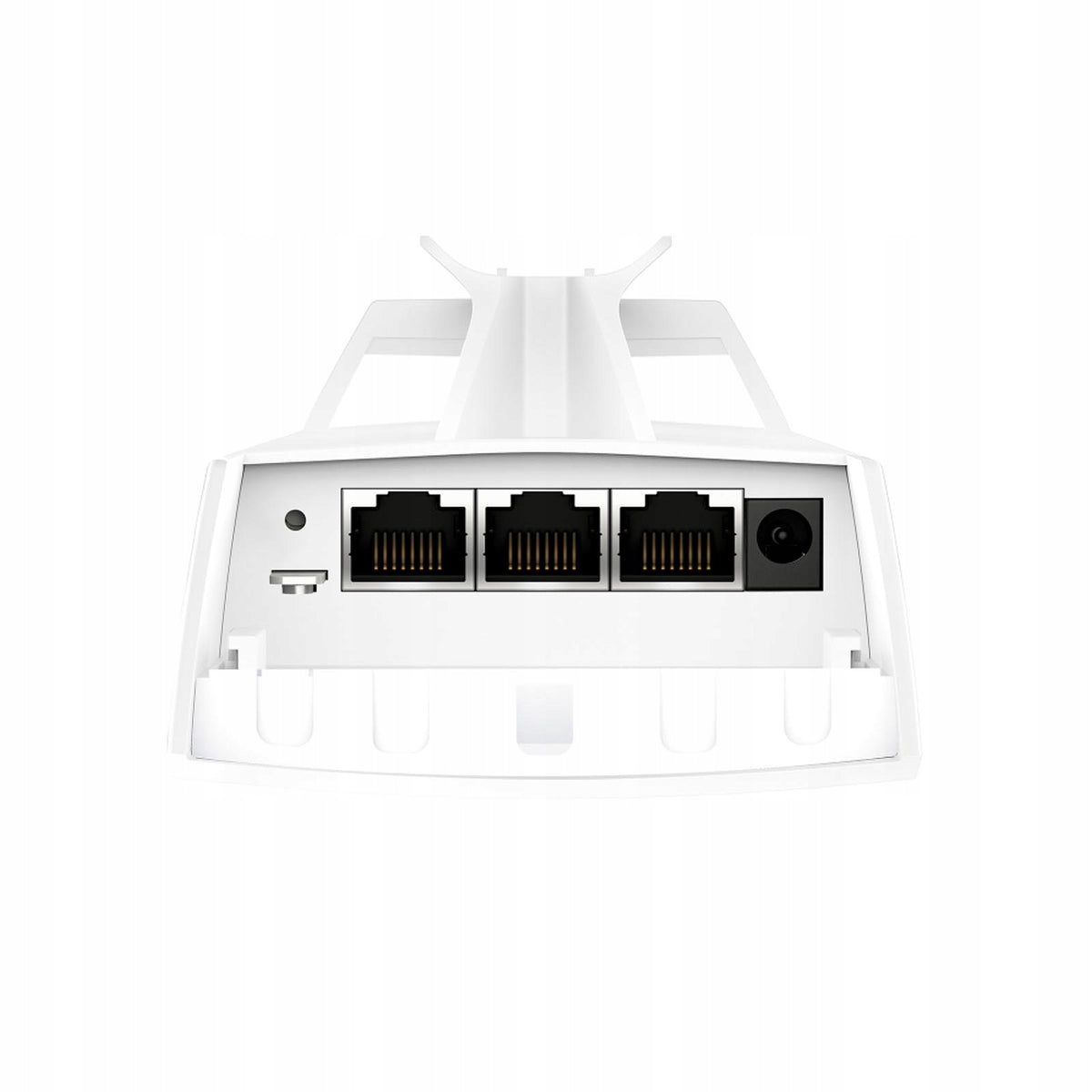

• Ports
• 3x Gigabit Ethernet ports
• Buttons
• Reset
• Power supply
• 12V DC/24V Passive PoE (Passive PoE Adapter Included)
• Dimensions (S x G x W)
• 224 x 79 x 60 mm (8,8 x 3,1 x 2,4 inches)
• Antenna type
• Internal, double polarized, directional MIMO 2x2 antennas
• 5 GHz: 11,0 dBi
• Horizontal: 35°
• Vertical: 35°
• Weather resistant housing
• IP65
• Assembly
• Pole mounting (mounting elements included)
• WIRELESS TRANSMISSION PROPERTIES
• Coverage
• 5000m
• Wireless standards
• IEEE 802.11 a/b/g/n/ac
• Frequency of work
• 5 GHz
• Transmission speed
• 5 GHz: up to 867 Mbps
• Wireless transmission functions
• • Mesh
• • MU-MIMO: 5G 2x2 MU-MIMO DL
• • Bandwidth load balancing
• • Beamforming
• • Airtime Fairness
• • Multi-SSID: 8
• • Wireless network statistics
• • Wireless network scheduler
• • Restart schedule
• • RADIUS Accounting
• • MAC authentication
• • Static/Dynamic IP address
• Security of wireless transmission
• • VLAN
• • Access control
• • Detection of unauthorized APs
• • Authentication with the welcome page
• • Maximum number of MAC Filtrations: 4,000
• • WPA-Personal/Enterprise, WPA2-Personal/Enterprise encryption
• Power of transmission
• • CE:
• < 23dBm (5 GHz, band 1/2, EIRP);
• < 30dBm (5 GHz band3, EIRP)
• MANAGEMENT
• Omada application
• Yes
• Copy and restore settings
• Yes
• Update of the software via the Web
• Yes
• NTP
• Yes
• Central management
• • Omada hardware controller (OC300)
• • Omada hardware controller (OC200)
• • Omada software controller
• • Cloud-based Omada Controller
• Access to the cloud
• Yes. Requires the use of OC300 Controller, OC200 Controller, Cloud-based Omada Controller or Omada Software Controller.
• LED switch
• Yes
• Access control by MAC addresses
• Yes
• SNMP
• v1, v2c, v3
• SSH
• Yes
• Management by browser
• Yes
• OTHER
• Certificates
• CE, FCC, RoHS
• Content of packaging
• • EAP215-Bridge KIT
• • Passive PoE Adapter
• • Power cord
• • Installation instructions
• • Mounting kit
• Working environment
• • Permissible operating temperature: -40℃–70℃ (-40℉–158℉)
• • Permissible storage temperature: -40℃–70℃ (-40℉–158℉)
• • Permissible air humidity: 10%–90%, non-condensing
• • Permissible storage humidity: 5%–90%, non-condensing

Specifications
