Belaidis prieigos taškas TP-Link EAP787 WiFi 7 BE12000 (802.11ad)

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-Link EAP787 WiFi 7 BE12000 (802.11ad). Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: Omada EAP787
• Plotis: 220 mm
• Aukštis: 39 mm

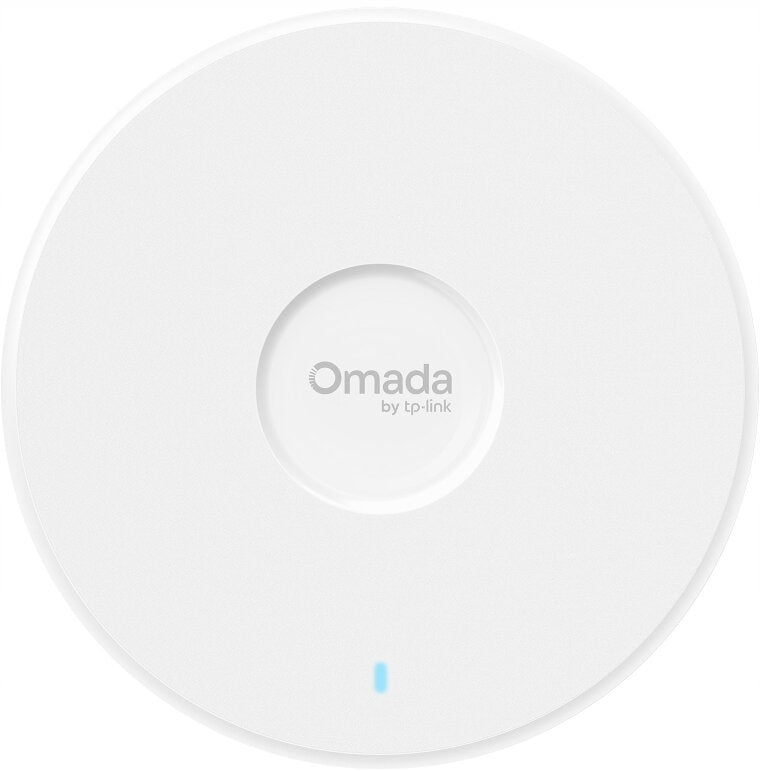

TP-Link Omada EAP787 – ceiling three-lane Wi-Fi access point 7 BE12000

The most important features

• Three-band Wi-Fi 7 (2,4 GHz / 5 GHz / 6 GHz) with 8 spatial streams
• Total bandwidth up to 12,2 Gb/s
• Speed up to 5765 Mbps in the 6 GHz band, 5765 Mbps in the 5 GHz band and 688 Mbps in the 2,4 GHz band
• 10G/2,5G Ethernet port for maximum wired network performance
• 320 MHz channel width, Multi-Link Operation, 4K-QAM and Multi-RU for increased bandwidth and lower latency
• Dedicated RF scanning for spectrum analysis and real-time interference detection
• Support for more than 510 simultaneous customers
• Range up to approximately 190 m²
• Omada Mesh support and smooth roaming
• Centralized cloud management Omada SDN
• PoE power supply 802.3bt/at or DC
• Up to 24 SSID networks (8 for each band)

TP-Link Omada EAP787 is a modern, professional enterprise-class access point designed for environments requiring very high performance and stability of the wireless network. The device supports the latest Wi-Fi 7 (802.11be) standard, offering huge bandwidth, very low latency and the ability to support a large number of simultaneously connected devices. Thanks to its three-band architecture (2,4 GHz, 5 GHz and 6 GHz) and a total bandwidth of up to 12,2 Gb/s, the access point is ideal for modern offices, hotels, schools, commercial facilities and other environments with high user density.

The EAP787 uses 8 spatial streams and the latest Wi-Fi 7 technologies such as 320 MHz channel width, Multi-Link Operation (MLO), 4K-QAM and Multi-RU, which significantly increases data transmission efficiency, improves connection stability and reduces latency. This allows the wireless network to support demanding applications such as high-definition video transmissions, cloud applications, real-time communications and IoT environments.

The device is equipped with a dedicated radio spectrum analyzer, which enables continuous bandwidth monitoring and interference detection without interrupting data transmission. This feature allows the network administrator to identify sources of interference, analyze radio spectrum and automatically optimize wireless network performance, which translates into greater stability and reliability of the infrastructure.

The EAP787 features a 10G Ethernet port that eliminates bottlenecks in wired infrastructure and allows you to take full advantage of the potential of Wi-Fi 7. The access point can be powered via PoE 802.3bt/at or DC power supply, which provides flexibility when deploying in different network environments. This makes installation quick and convenient, especially in large network installations.

The device is part of the Omada SDN platform, which enables centralized network management from the cloud, mobile application or hardware controller. An administrator can manage access points, switches and network gateways in one place, monitor traffic, configure security policies and analyze infrastructure performance.

The access point supports more than 510 simultaneous clients and provides a range of up to about 190 m², making it perfect for places with high user density. Support for Omada Mesh technology and seamless roaming allows for the construction of extensive, stable wireless networks where users can move freely between access points without losing connection.

In addition, EAP787 offers extensive security features such as WPA3 Enterprise, client isolation, VLANs, unauthorized access point detection and portal login. The ability to create multiple SSID networks and integrate with authentication systems make the device ideal for business and public Wi-Fi applications.

Technical specification – TP-Link EAP787

HARDWARE FEATURES

Ports

1 × Ethernet port 10G / 2,5G.

Buttons

Reset.

Power supply

The device can be powered in two ways:

• 802.3bt / 802.3at PoE
• 12 V / 2,5 A DC

Power consumption

• 26,3 W (POE)
• 22,4 IN (DC)

Dimensions

220 × 220 × 38,8 mm

Antenna

• 2,4 GHz: 2 × 4,0 dBi
• 5 GHz: 4 × 5,0 dBi
• 6 GHz: 2 × 5,0 dBi
• Bluetooth: 1 × 5 dBi (maximum gain), internal antenna module

Assembly

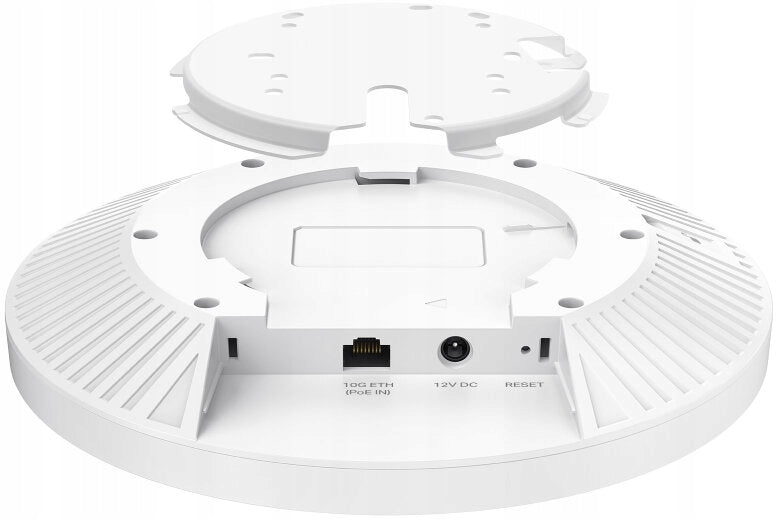

Possible installation on the ceiling, wall or junction box. Mounting kit is included.

WIRELESS TRANSMISSION PROPERTIES

Coverage

Up to 190 m².

Number of simultaneous clients

More than 510 devices.

Wireless standards

IEEE 802.11 a/b/g/n/ac/ax/be.

Working bands

• 6 GHz
• 5 GHz
• 2,4 GHz

Maximum transmission speed

• 688 Mbps (2,4 GHz)
• 5765 Mbps (5 GHz)
• 5765 Mbps (6 GHz)

WIRELESS TRANSMISSION FUNCTIONS

• channel width 320 MHz
• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RU
• smooth roaming 802.11k / 802.11v / 802.11r
• MU-MIMO
• Mesh support
• BSS coloring
• OFDMA
• bandwidth load balancing
• bandwidth control
• Beamforming
• Airtime Fairness

Multi-SSID

Possibility to create up to 24 SSID networks (after 8 for each band).

Additional Features:

• wireless network schedule
• schedule of restarts
• QoS (WMM)
• Rate Limit
• static and dynamic IP address
• RADIUS Accounting
• MAC authentication

WIRELESS TRANSMISSION SECURITY

• authentication via the portal (Captive Portal)
• access control
• MAC address filtering
• isolation of wireless network clients
• VLAN support
• detection of unauthorised access points

Supported security standards:

• WPA-Personal
• WPA2-Personal / Enterprise
• WPA3-Personal / Enterprise

TRANSMISSION POWER

• 2,4 GHz: 6 to 20 dBm (EIRP)
• 5 GHz U-NII-1 / U-NII-2A: 9 to 23 dBm (EIRP)
• 5 GHz U-NII-2C: 9 to 30 dBm (EIRP)
• 6 GHz: 6 to 23 dBm (EIRP)

MANAGEMENT

Omada application

Yes.

Centralized management

• Omada Central (cloud)
• Omada hardware controller
• Omada software controller

Access to the cloud

Yes – it requires an Omada controller.

Additional management functions:

• e-mail notifications
• LED switch
• MAC access control
• SNMP v1/v2c/v3
• system logbook
• management by a web browser

OTHER INFORMATION

Certificates

• CE
• FCC
• RoHS
• IC

Content of the package

• EAP787 access point
• installation instructions
• mounting kit

Power supply

Not included.

WORKING CONDITIONS

Working temperature: 0°C – 40°C

Storage temperature: −40°C – 70°C

Working humidity: 10% – 90% (non-condensing)

Storage humidity: 5% – 90% (non-condensing)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Access Point
Parametry	Wireless operation standard	802.11be (Wi-Fi 7)
Parametry	Internal modem	no modem
Parametry	Management	app
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	built-in
Parametry	Width	220 mm
Parametry	Height	39 mm
Parametry	Depth	220 mm
Parametry	EAN (GTIN)	1210002600569
Parametry	Manufacturer code	EAP787
Parametry	Model	Omada EAP787
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11be (Wi-Fi 7)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Band	2,4 GHz,5 GHz,6 GHz
