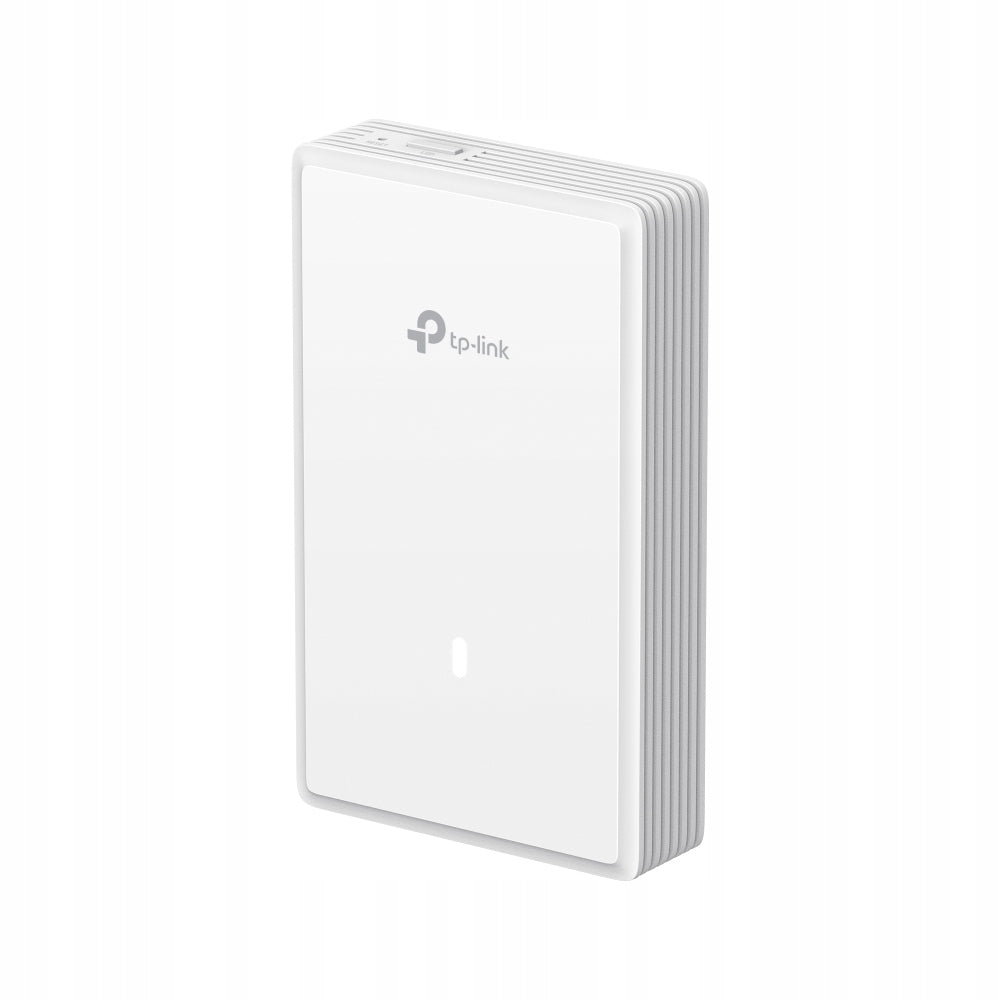

Belaidis prieigos taškas TP-Link EAP725-Wall Omada WiFi 7

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-Link EAP725-Wall Omada WiFi 7. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP725-Wall

EAP725-Wall

• Wi-Fi 7 BE3600 (2882 Mbps in the 5 GHz band + 688 Mbps in the 2,4 GHz band)
• 1 PoE input port 2,5G

  1 port with PoE pass-through 2,5G

  2 gigabit RJ45 downlink

• 160 MHz channel width enables more simultaneous transmissions
• Multi-RU delivers high performance for your network
• Advanced features: Centralized management, Mesh and Smooth Roaming

Optimized wired performance

PoE 2.5G port

The 2,5G PoE input port, Pass-Through PoE port and 2 gigabit RJ45 ports allow you to enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP phones, can be powered without the need for additional electrical cables.

Increased network security

• Secure guest network with up to 16 SSIDs
• Increase your company’s capabilities with SMS Login
• WPA3 for open public networks
• Detection of unauthorized APs

Seamless integration with Omada SDN

Manage your access points, switches and routers remotely across multiple locations, all from a single interface.

HARDWARE FEATURES

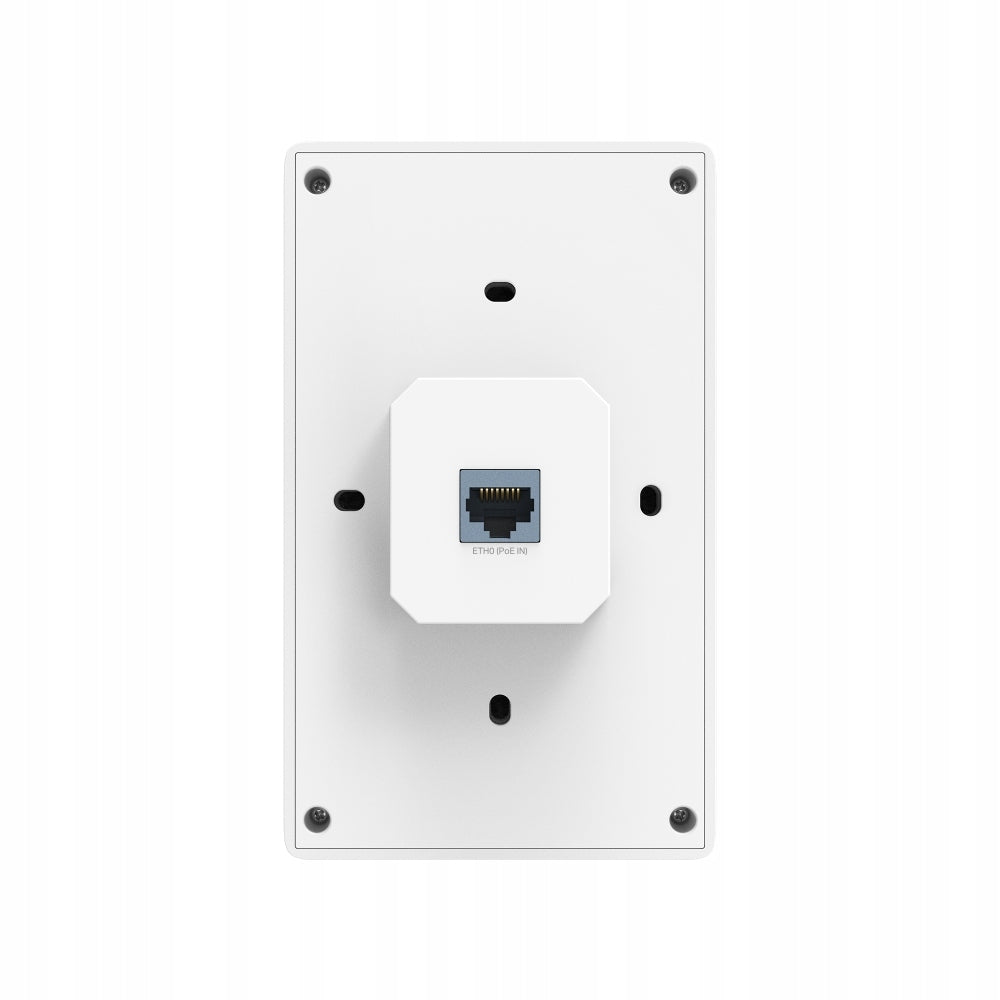

Ports

• Uplink:

1 x 2.5G Ethernet port

• Downlink:

1 x 2.5G Ethernet port

2 gigabit Ethernet ports

(2,5G port supports PoE Pass-Through. PoE Pass-Through requires PoE power at 802.3at/bt input. If the power consumption of the downstream access point device exceeds 7W, then the access point will require a PoE 802.3bt power input. )

Physical security

Lack

Buttons

Reset

LED

Power supply

802.3at/btPoE

Power consumption

• 802.3bt: 17W (PoE output up to 15,4W)

• 802.3at: 17W (PoE output up to 7W)

Dimensions (S x G x W)

143 × 86 × 40 mm

(5,6 × 3,4 × 1,6 inches)

Antennas

4 internal antennas

• 2,4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

Installation

Wall mountable (mounting kit included)

WIRELESS TRANSMISSION PROPERTIES

Coverage coverage

50m2 **

Number of simultaneous clients

250+ §

Wireless standards

IEEE 802.11 a/b/g/n/ac/ax/be

Frequency of work

2,4 GHz and 5 GHz

Transmission speed

• 5 GHz: up to 2882 Mbps

• 2,4 GHz: up to 688 Mbps

Wireless transmission functions

• 16 SSID (up to 8 SSIDs on each band)

• Enabling/Disabling wireless network

• Automatic channel selection

• Transmission power control (based on Transmission power in dBm)

• QoS (WMM)

• Smooth roaming△

• Beamforming

• Speed limit (based on SSID/Customer)

• Bandwidth load balancing

• Airtime Fairness

• Band control

• Reboot schedule

• Wireless network scheduler

• RADIUS Accounting

• MAC Authorization

• Wireless network statistics

• Static IP / Dynamic IP

Wireless transmission security

• Authentication via the welcome page△

• Access control

• MAC Address Filtering

• Wireless client isolation

• VLANs

• Detection of unauthorized APs

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise encryption

Transmission power

< 20 dBm (2,4GHz, EIRP)

< 23 dBm (5GHz, band 1 and band 2, EIRP)

< 25 dBm (5GHz, band 3, EIRP)

MANAGEMENT

Omada app

Yes

Centralized management

• Omada hardware controller (OC300)

• Omada hardware controller (OC200)

• Omada software controller

• Cloud-based Omada Controller

Access to the cloud

Yes. Requires the use of OC300, OC200, Omada Software Controller or Cloud-based Omada Controller.

Email notifications

Yes

Diode switch

Yes

Access control by MAC addresses

Yes

SNMP

v1, v2c, v3

System Journal

System Journal

SSH

Yes

Management by browser

Yes

Management of L3

Yes

Multi-site management

Yes

VLAN management

Yes

Maintenance-free ZTP configuration

Yes. Requires the use of a cloud-based Omada Controller.

OTHER

Certificates

CE, RoHS

Contents of the pack

• EAP725-Wall

• Installation instructions

• Mounting kits

System requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Working environment

• Permissible operating temperature: 0℃–40℃ (32℉–104℉)

• Permissible storage temperature: -40℃–70℃ (-40℉–158℉)

• Permissible air humidity: 10%–90%, non-condensing

• Permissible storage humidity: 5%–90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	LAN port operating standard	10/100/2500 Mbps
Parametry	EAN (GTIN)	8885020626353
Parametry	Manufacturer code	EAP725-Wall
Parametry	Model	EAP725-Wall
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11be (Wi-Fi 7)
Parametry	Wireless operation standard	802.11be (Wi-Fi 7),802.11ax (Wi-Fi 6),802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a
Parametry	Band	2,4 GHz,5 GHz
