Belaidis prieigos taškas MIKROTIK ROUTERBOARD cAP ac, 2 vnt.

Trumpai apie prekę

Prekė: Belaidis prieigos taškas MIKROTIK ROUTERBOARD cAP ac, 2 vnt.. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: RBCAPGI-5ACD2ND
• Plotis: 178 mm
• Aukštis: 60 mm

RouterBoard cAP ac (cAPGi-5acD2nD) 2,4/5GHz MikroTik

The RouterBoard cAP ac platform is an access point from MikroTik operating simultaneously in the 2,4GHz and 5GHz bands.

Discreet appearance makes this device applicable in public places – hospitals, hotels, airports, shops, etc.

cAPGi-5acD2nD operates in 802.11ac/a/b/g/n standards, supporting 2x2 MIMO dual polarization.

The bandwidth of the device in the 2,4 GHz band is up to 300 Mb/s, and in 5 GHz up to 866 Mb/s.

The device is powered by passive (17-57V) or active (802.3af/at) PoE.

The offered product has a efficient, 4-core IPQ-4018 processor with a clock speed of 716 MHz and 128 MB of RAM. An additional advantage is 2 Gigabit Ethernet ports. The second port has a passive PoE output, which allows easy network expansion – we can power another device, e.g. cAP-2nD.

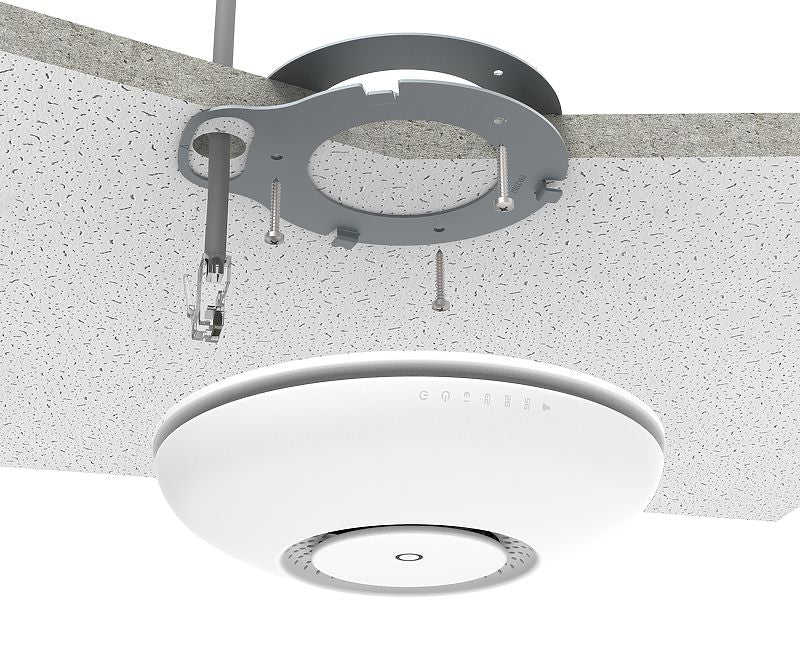

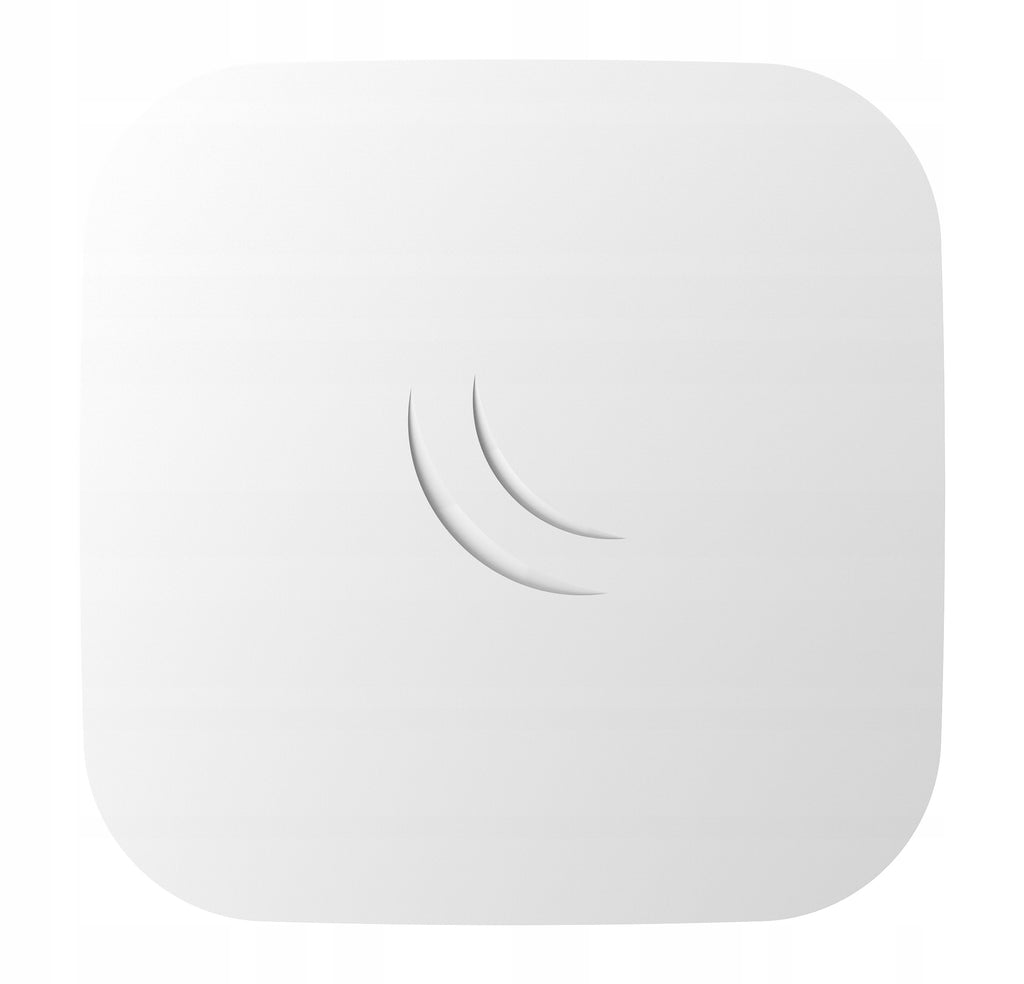

The set includes 2 types of housing, one designed for ceiling mounting and the other for wall mounting.

It is an ideal application for the CAPsMAN controller, which allows you to centrally manage all access points from one place.

Unlike traditional software controllers, which require a separate PC/MAC to work, CAPsMAN works on any RouterBOARD device, so no separate machine with a controller is required.

Everything you need for assembly is included with the unit – ceiling/wall mount, PoE adapter, power supply, and even screws and mounting pins.

Main features of the device:

• Quad-core processor IPQ-4018 with a clock speed of 716 MHz
• 128 MB of RAM
• 2 Gigabit Ethernet Ports
• Wall or ceiling mounting
• Simple, unobtrusive appearance
• Two housings included
• Operation in 2,4 and 5 GHz bands simultaneously
• PoE – 17-57V – passive or 802.3af/at
• Passive PoE output on second port
• CAPsMAN controller working on any RouterBOARD device
• RouterOS software with level 4 license

Technical data:

• Processor – quad-core IPQ-4018 716MHz
• RAM - 128MB RAM
• Drive - NAND memory for the operating system (permanently built into the board)
• LAN port – 2 x Gigabit Ethernet port with Auto-MDI/X support
• MiniPCI Slots - None

• 5GHz Radio Module:
• Radio chip: IPQ-401
• Protocols: 802.11 a/n/ac
• Chain: 2x2
• Operating frequency: 5150 – 5875MHz
• Antenna Gain: 2.5dBi
• Antenna Radiation Angle: 360o
• Radio module power: 26dBm @ 6Mbps; 21dBm @ 54Mbps; 26dBm @ MCS0; 20dBm @ MCS7; 18dBm @ MCS9
• Radio module sensitivity: -96dBm @ 6Mbps; -80dBm @ 54Mbps; -96dBm @ MCS0; -75dBm @ MCS7; -70dBm @ MCS9

• 2,4GHz Radio Module:
• Radio chip: IPQ-401
• Protocols: 802.11 b/g/n
• Chain: 2x2
• Operating frequency: 2412 – 2484MHz
• Antenna Gain: 2dBi
• Antenna Radiation Angle: 360o
• Radio module power: 26dBm @ 1Mbps; 26dBm @ 11Mbps; 26dBm @ 6Mbps; 23dBm @ 54Mbps; 26dBm @ MCS0; 22dBm @ MCS7
• Radio module sensitivity: -100dBm @ 1Mbps; -94dBm @ 11Mbps; -96dBm @ 6Mbps; -78 dBm @ 54 Mbps; -97dBm @ MCS0; -73dBm @ MCS7

• Power supply – PoE 17-57V DC (24V DC 1.2A power supply included), 802.3af/at or passive PoE
• PoE output – passive on port two
• LEDs – 7x LED (1x user-configurable LED)
• Power consumption – 13W (max.)
• Dimensions:

  - Round housing: ⌀ 136 mm, height: 30 mm;

  - Square housing: 145 mm x 145 mm x 30 mm

• Operating temperature – from -40oC to +50oC (tested)

The device comes with a 24V DC 1.2A power supply, PoE adapter, two housings, wall/ceiling mounting bracket, screws and mounting pins.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	MikroTik
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	Management	website
Parametry	Number of LAN (RJ-45) ports	2
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	built-in
Parametry	Width	178 mm
Parametry	Height	60 mm
Parametry	Depth	30 mm
Parametry	Product weight with unit packaging	0.7 kg
Parametry	EAN (GTIN)	4752224003416
Parametry	Manufacturer code	RBCAPGI-5ACD2ND
Parametry	Model	RBCAPGI-5ACD2ND
Parametry	The highest standard supported	802.11ac (Wi-Fi 5)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Wireless operation standard	802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a,802.11ad
Parametry	Band	2,4 GHz,5 GHz
Parametry	Additional features	Dual WAN,MAC cloning,parental control,VPN server,hotel mode
