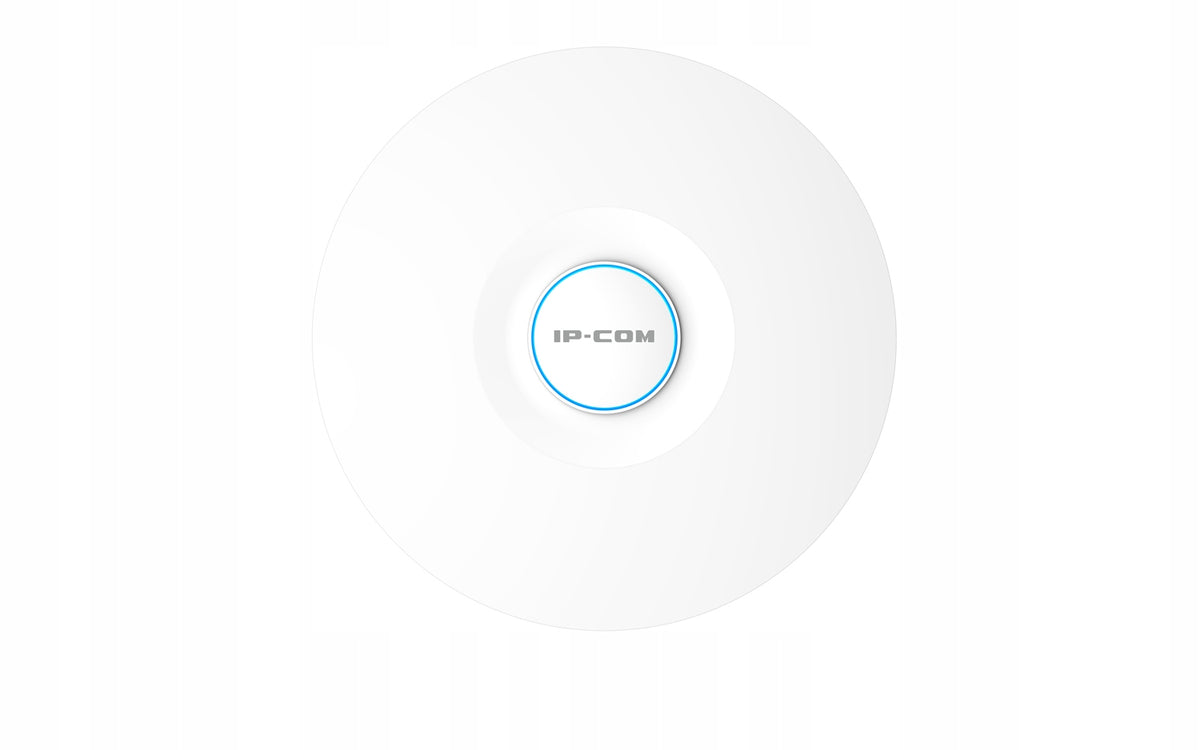

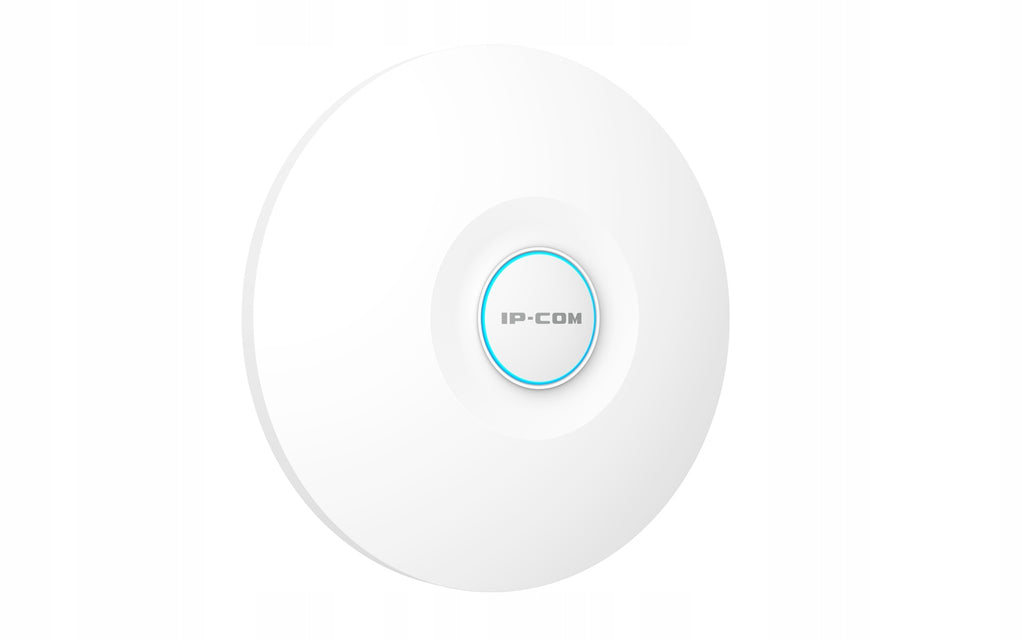

Belaidis prieigos taškas IP-COM Pro-6-LR, 2,4/5 GHz

Trumpai apie prekę

Prekė: Belaidis prieigos taškas IP-COM Pro-6-LR, 2,4/5 GHz. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Ip-Com
• Modelis: Pro-6-LR
• Plotis: 250 mm
• Aukštis: 250 mm

Two-band long-distance access point 802.11AX

• Dual-band data rates up to 3000 Mbps
• New WPA3 encryption standard ensures network security
• 2,4 GHz 2x2 MIMO bandwidth with 574 Mbps radio speed
• 5 GHz 2x2 MIMO band with radio speed of 2402 Mbps
• Power Input with 802.3at PoE

overview

The Pro-6-LR is designed with the new Wi-Fi 6 technology. It realizes the 160 MHz bandwidth and speed in the 5 GHz band up to 2,4 Gbps, which is three times higher than in the case of ordinary Wi-Fi 5 access points and twice as high as in the case of ordinary Wi-Fi 6 points. The use of new technologies such as OFDMA, spatial multiplexing and MU-MIMO increases the network bandwidth of a single Pro-6-LR up to four times. The high-power RF design helps maintain Wi-Fi signal quality even over long distances, so wireless clients and access points can work in high-performance Wi-Fi 6 mode. The Pro-6-LR is an excellent choice for places like businesses and hotels where you need to deploy high-performance Wi-Fi networks. ProFi Controller makes it easy to manage and monitor the entire ProFi series in real time, and cloud services enable remote and secure access, free from device location restrictions.

Wi-Fi 3 Gb/s, 2,5x faster speed

Both the 2,4 GHz and 5 GHz radio bands support the new Wi-Fi 6 standard, and the simultaneous Wi-Fi speed is as high as 3 Gbps, which is 2,5 times faster than the last generation access points (AC1200).

Increased throughput

Supporting OFDMA, SR and MU-MIMO, 802.11ax significantly improves system throughput compared to the last generation of 802.11ac. With TWT technology, the access point can evenly plan to wake and put customers to sleep, greatly reducing conflicts between them and unnecessary awakenings. So it is suitable for high-density scenarios when a lot of customers are deployed.

Wi-Fi coverage more than 20 percent higher

Thanks to the long OFDM symbol transmission mechanism and 2 MHz narrowband transmission, the 802.11ax protocol significantly reduces packet loss rate and noise interference, as well as improves customer reception sensitivity. In addition, the Pro-6-LR has a high-end RF amplification chip that significantly extends Wi-Fi coverage.

Strong anti-interference capability

Supporting BSS coloring, dynamic CCA threshold and power control, the 802.11ax protocol greatly reduces channel interference in high-density scenarios and improves spectrum resource utilization rate, improving anti-interference capability compared to 802.11ac.

Increased protection

The Wi-Fi 6 access point supports the next generation WPA3 Wi-Fi encryption protocol. With the WPA3 encryption protocol, even a simple password cannot be cracked, which greatly increases Wi-Fi network security.

Intelligent roaming protocol

Supporting intelligent roaming technology, based on the 802.11kv protocol, the Pro-6-LR enables wireless clients to automatically connect to an access point with a better signal, effectively increasing the user experience.

PoE standard support, easy installation and implementation

Efficient components and excellent hardware design guarantee 802.3at power supply for the 802.11ax dual-band gigabit access point, which simplifies installation and deployment.

Centralized management

ProFi Controller makes it easy to manage and monitor the entire ProFi series in real time, and cloud services allow remote and secure access free from restrictions resulting from device location.

Specification:

Hardware Specification

• Operating frequency: 2,4GHz, 5GHz
• WiFi Standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
• Operating speeds 2,4GHz: 1 – 574Mbps
• 5GHz operating speeds: 6 – 2402Mbps
• Channel Width: 20 MHz/40 MHz/80 MHz/160 MHz
• Ethernet port: 1x 10/100/1000Mbps with PoE support; 1x 10/100/1000Mbps
• Buttons: 1x Reset
• LEDs: RGB
• Maximum power consumption: max. 15.74W at full load
• Power Supply Method: IEEE 802.3at
• Antenna Gain: 4 x 4dBi
• Transmission power in the 2,4GHz band: 29 +/- 1.5 dBm
• Transmission power in the 5GHz band: 29 +/- 1.5 dBm
• Sensitivity 802.11b RX: -97dBm
• Sensitivity 2.4 GHz 802.11n (MCS7) RX: -75dBm
• Sensitivity 5 GHz 802.11a RX: -95dBm
• Sensitivity 5 GHz 802.11n (MCS7): -75dBm
• Dimensions: 250.6*55 mm
• Operating temperature: -10°C - 45°C
• Storage temperature: -30°C - 70°C
• Permissible ambient humidity: 10 – 90% (non-condensing)
• Certificates: CE, FCC, RoHS
• Package includes: Access Point Pro-6-LR; power supply; ceiling/wall mounting brackets; dowels

Program Specification

• Operating Modes: AP
• SSID concealment: yes
• Maximum SSID: 2,4GHz: 7; 5GHz: 4
• Maximum number of connected clients: 254
• OFDMA support: yes
• Beamforming support: yes
• TWT support: yes
• Support 802.11 k/v: yes
• WEP encryption: yes
• WPA-PSK encryption: AES/TKIP
• WPA2-PSK encryption: AES/TKIP
• WPA3-ASE: AES
• WPA encryption: yes
• WPA2 encryption: yes
• Access control: based on MAC addresses
• Transmission power adjustment: yes
• AP isolation: yes
• Control of the list of connected clients: yes
• Determination of RSSI threshold: yes
• VLAN tagging for SSID: yes
• LED control: yes
• Diagnostic tools; Ping, Traceroute
• Planned reboot: yes
• Reboot at a specified interval: yes
• Management: Web UI
• System logs: yes
• Update firmware: locally and from the controller
• Reboot: locally and from the controller
• Reset: locally and from the controller
• Configuration backup: yes
• Configuration Recovery: Yes
• Default IP address: 192.168.0.254
• Default username: admin
• Default password: admin

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Ip-Com
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	Management	website
Parametry	Number of LAN (RJ-45) ports	2
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	built-in
Parametry	Width	250 mm
Parametry	Height	250 mm
Parametry	Depth	55 mm
Parametry	Product weight with unit packaging	1.47 kg
Parametry	EAN (GTIN)	6932392828631
Parametry	Manufacturer code	Pro-6-LR
Parametry	Model	Pro-6-LR
Parametry	The highest standard supported	802.11ax (Wi-Fi 6)
Parametry	Wireless operation standard	802.11ax (Wi-Fi 6),802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a
Parametry	Band	2,4 GHz,5 GHz
