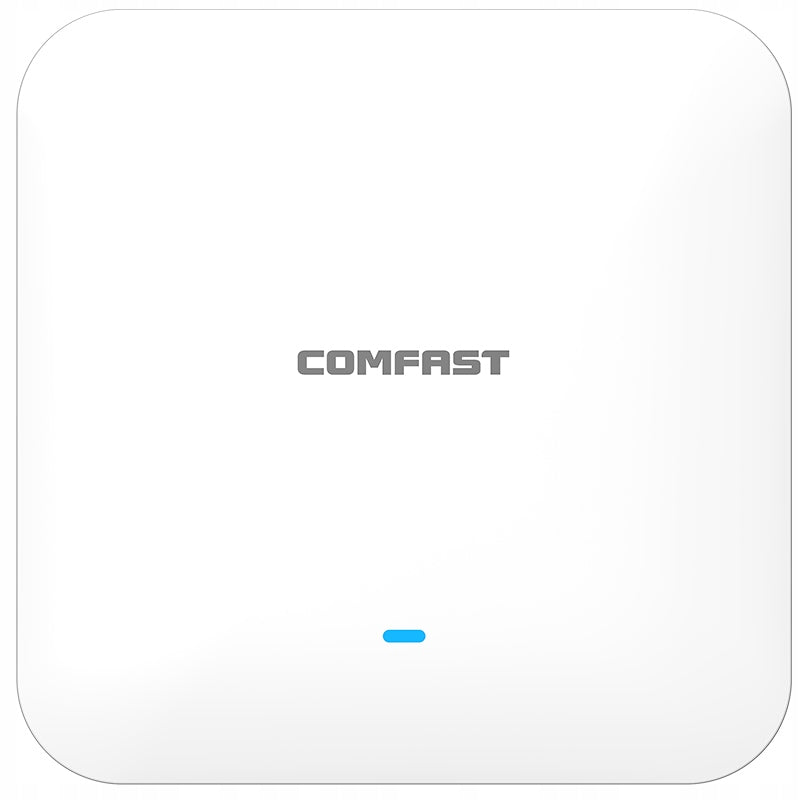

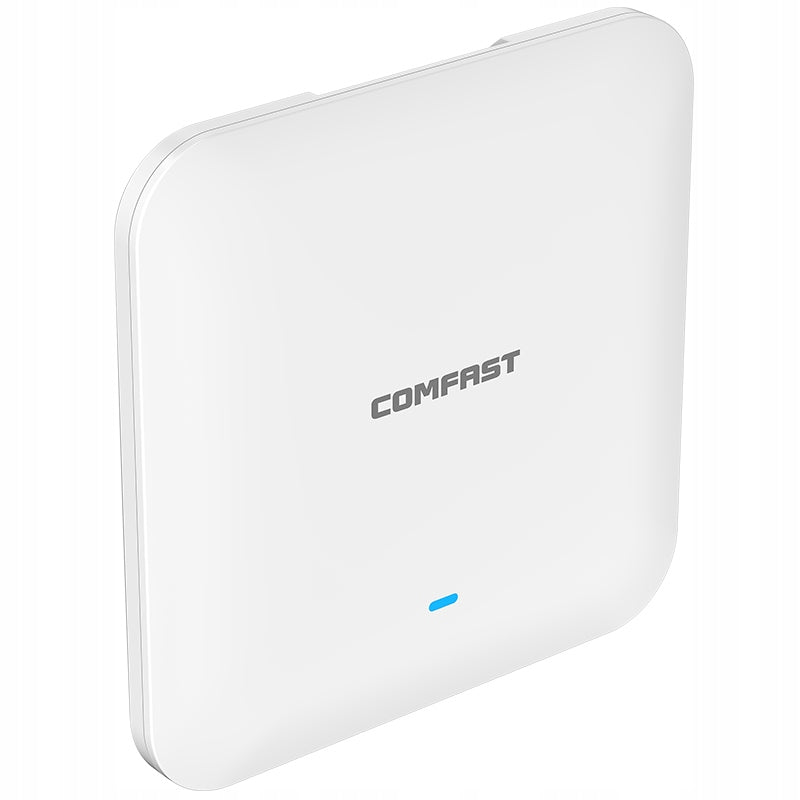

Belaidis prieigos taškas COMFAST CF-E393AX, WiFi 6, 3000 Mbps, POE Ethernet

Trumpai apie prekę

Prekė: Belaidis prieigos taškas COMFAST CF-E393AX, WiFi 6, 3000 Mbps, POE Ethernet. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Comfast
• Modelis: CF-E393AX
• Plotis: 220 mm
• Aukštis: 220 mm

Enjoy a super-fast network

Multiple users can simultaneously use the connection, with latency reduced to just 10 ms – for smoother networking than ever before.

Ceiling access point

Dual-band (2.4GHz and 5.8GHz) wireless AP with up to 3000Mbps bandwidth enables automatic selection of the optimal frequency for better signal, giving users more freedom and an excellent experience.

Network configuration:

• SSID1 (2.4GHz) – longer range
• SSID2 (5.8GHz) – higher speed

Easier installation, less cables

Forget about additional power adapters – all you need is one network cable that simultaneously transmits data and power.

Unified access point control

The system works with the COMPAST AC management device, enabling simultaneous configuration and central management of multiple access points (APs) – automatically and wirelessly.

Comprehensive WiFi and marketing solutions for every space

Business and public spaces

• Hotels – liquid internet for guests
• Shopping centres – support for loyalty systems
• Offices – an efficient network for teams

Specialized facilities

• Hospitals – stable link for medical systems
• Airports – serving thousands of users
• Stadiums – HD streaming for viewers

Entertainment

• Restaurants – digital menu and payments
• Clubs – social media integration
• Gyms – integration with wearables

802.11ax uses an improved Long OFDM transmission mechanism and 2MHz narrowband transmission, which effectively reduces packet loss rate, improves signal reception sensitivity by end devices, and provides wider WiFi coverage.

802.11ax supports mechanisms such as:

• BSS color coding (network identification),
• Dynamic CCA threshold (automatic adjustment of signal detection sensitivity),
• Transmission power control (which effectively reduces the problem of co-channel interference in multi-user environments. )

Compared to WiFi5, it offers faster speed and higher bandwidth, meeting the needs of high-speed internet in multi-user scenarios and high bandwidth demand.

Higher Speed

With 1024QAM modulation, more lifts and 160MHz bandwidth technology, the maximum speed increases to 2976Mbps.

Larger Capacity

802.11ax uses OFDMA and DL/UL MU-MIMO technology, increasing network capacity by 4 times compared to 802.11ac. TWT technology enables the access point (AP) to harmoniously manage device activity (on and off), allowing it to support a large number of endpoint devices.

High Speed Full coverage with WiFi 6 signal – enjoy smooth roaming. Easy one-click setup – enterprise-level network benefits.

Standard WiFi 6

• Triple chipset chip – increased power and stability
• Full Gigabit ports – support for high speeds
• Dual 2.4GHz and 5.8GHz band – flexibility and performance
• POE power supply – convenience of installation
• OFDMA + MU-MIMO – effective traffic management
• Support for over 220 users – ideal for dense environments
• Central management – control of multiple access points
• Smooth roaming – no interruptions in connection

Model

• CF-E393AX

Equipment

• DDR: 256MB
• Flash: 128MB

Antenna

• Built-in intelligent antenna system,
• 2 dual-band 4" 3dBi antennas

Wireless speed

• Supports IEEE802.11b/g/n/ac/ax standards
• 2.4GHz: 574Mbps; 5.8GHz: 2400Mbps

RF parameters

• Transmission Power: 26dBm
• Reception Sensitivity: -96dBm
• Frequency of operation:
• 802.11b/g/n: 2.412GHz-2.472GHz;
• 802.11ax/ac/an/a: 5.180GHz-5.825GHz

Modulation technology

• 11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
• 11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
• 11n: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM
• 11ac: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM
• 11ax: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Physical ports

• 1 × RJ45 Ethernet 10/100/1000Mbps WAN port;
• 1 × RJ45 Ethernet LAN port 10/100/1000Mbps;
• 1 × RESET button

Indicators

• Three colors

Power supply

• Power supply: POE (up to 100 meters);
• Power Adapter: 48V /0.5A POE (included)

Power consumption

• 24W

Housing material

• Plastic housing (imported ABS material)

Degree of protection

• IP31

Product Dimensions

• 220 × 220 × 46 mm

Working environment

• Operating temperature: -10°C to 55°C;
• Storage temperature: -40°C to 70°C;
• Operating humidity: 10%~90%RH without condensation;
• Storage humidity: 5%~95%RH non-condensing
