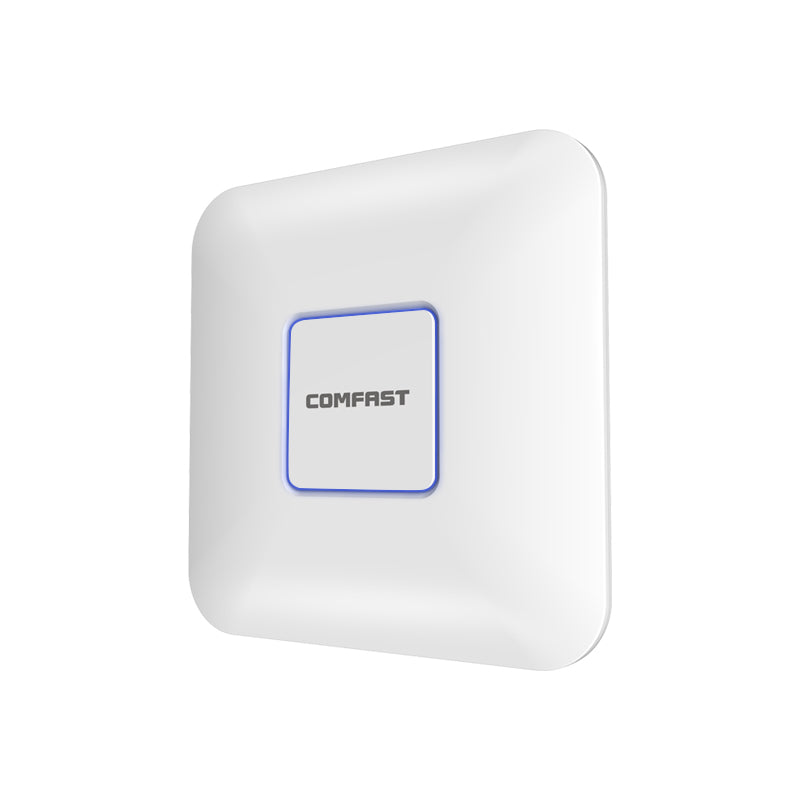

Belaidis prieigos taškas COMFAST CF-E375AC V2, dviguba juosta, 1300Mbps, 5x 3dBi antenos, POE

Trumpai apie prekę

Prekė: Belaidis prieigos taškas COMFAST CF-E375AC V2, dviguba juosta, 1300Mbps, 5x 3dBi antenos, POE. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Comfast
• Modelis: CF-E375AC V2

Key parameters:

• Speed up to 1300 Mbps (867 Mbps 5.8 GHz + 450 Mbps 2.4 GHz)
• Gigabit Ethernet port – full support for high-speed connections
• POE power supply – easy installation anywhere

Innovative features:

• Support 160+ users at the same time
• Qualcomm Triple Chip – 24/7 Stability
• Load balancing – automatic traffic management
• Wall penetration technology – coverage throughout the building

Applications:

• Hotels and restaurants – dense user environments
• Open space offices – even coverage
• Smart homes – multiple IoT devices running simultaneously

CF-E375AC V2 with 802.11ac Wave2 MU-MIMO support

• Simultaneous communication with multiple devices (up to 4 clients at once)
• Bandwidth increased by 300% in multi-user environments
• Zero data queues – every user gets full speed

Technical innovations:

• Function: Benefit
• Equipment RF acceleration: Separate processing of 2.4G and 5.8G bands
• QoS acceleration: Real-time traffic prioritization
• Beamforming: Intelligent signal routing to devices
• Antenna optimization: Maximum utilization of the MU-MIMO array

With Qualcomm triple chip

• Industrial chipsets – 24/7 reliability
• Global suppliers – components from leading manufacturers
• Signal Optimization – Intelligent Broadcasting Power Management

CF-E375AC V2 with dual PA

• 2 dedicated power amplifiers – separate for 2.4 GHz and 5.8 GHz bands
• Range increased by 40% – compared to standard solutions
• Better penetration of walls – stable signal through up to 3 concrete partitions

Safety and efficiency

• 2 Gigabit ports (WAN + LAN) – support for high-speed fiber optic connections
• 48V POE power supply – compliant with IEEE 802.3af/at standard
• Safe installation – elimination of the risk of short circuits and overheating

Reliability at the enterprise level

• Automatic recovery – watchdog detects and fixes system errors
• Quick disaster recovery – response time < 30 seconds
• Reduced maintenance costs – no need for manual interventions

CF-E375AC V2 with Unified AC Management

• Unified configuration – management of all APs from one panel
• Remote updates – mass software update for the entire network
• Real-time monitoring – the status of all connected devices

Automatic switching between access points

• Uninterruptible connection – the user moves between rooms without losing signal
• Automatic selection of a stronger signal – the system switches the device to the optimal AP
• Zero manual setup – works immediately when plugged in

Model - CF-E375AC V2

Hardware specifications

• Chips: Qualcomm QCA9563 + QCA8337 + QCA9886
• Memory: DDR 128MB, Flash 16MB
• Power amplifiers: 2.4GHz: SE2576L, 5.8GHz: SKY85728-11
• Watchdog: Built-in security chip

Antennas

• 5 × built-in 3dBi antennas

Wireless parameters

• Speeds: 2.4GHz: up to 450Mbps, 5.8GHz: up to 867Mbps
• Transmission Power: 200mW (23dBm)
• Reception Sensitivity: -96dBm
• Frequency Range: 5.8GHz: 5.18-5.825GHz, 2.4GHz: 2.412-2.472GHz

Interfaces

• 1 × RJ45 Gigabit WAN (with POE power supply)
• 1 × LAN RJ45 Gigabit (with POE power supply)
• RESET button

Power supply

• POE 802.3af/at power supply
• Power Supply: 48V 0.5A (included)
• Power Consumption: < 13W

Case

• Material: ABS
• Dimensions: 220×220×35mm
• Weight: 0.38kg

Working environment

• Operating temperature: -10°C to 65°C
• Humidity: 10-90% (non-condensing)
