Belaidis LTE prieigos taškas CAMSAT GLOBALCAM4.5G-2POE

Trumpai apie prekę

Prekė: Belaidis LTE prieigos taškas CAMSAT GLOBALCAM4.5G-2POE. Kategorija: Mobilieji maršrutizatoriai.

• Gamintojas: CAMSAT
• Modelis: 569554677

LTE Cat ACCESS POINT. 4 GLOBALCAM4.5G-2POE 2.4 GHz, 150 Mbps CAMSAT

GLOBALCAM4.5G-2POE

GLOBALCAM4.5G-2POE industrial router is designed for professional CCTV video surveillance applications, provides transparent and smooth wireless transmission between IP cameras and NVRs

The device is designed to wirelessly connect multiple IP cameras to the registration point via the 4G/LTE Internet network

Built-in Wi-Fi module enables cooperation with wireless cameras supporting IEEE 802.11n standards

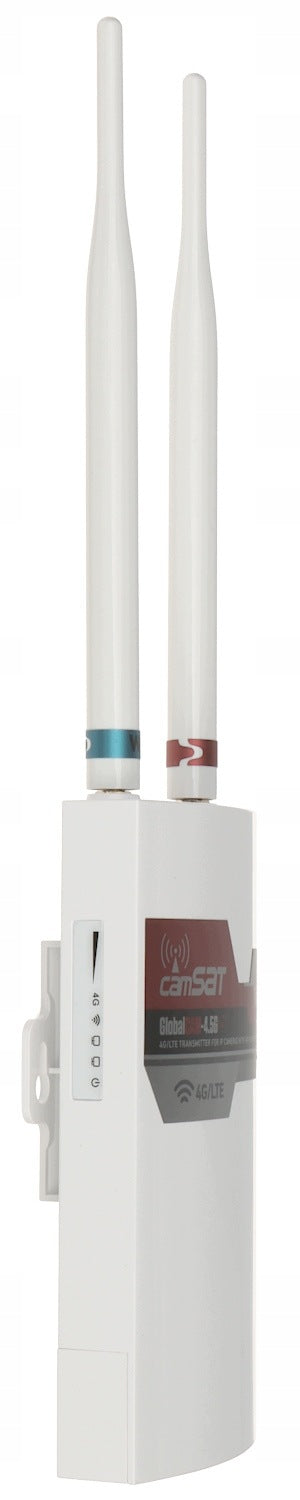

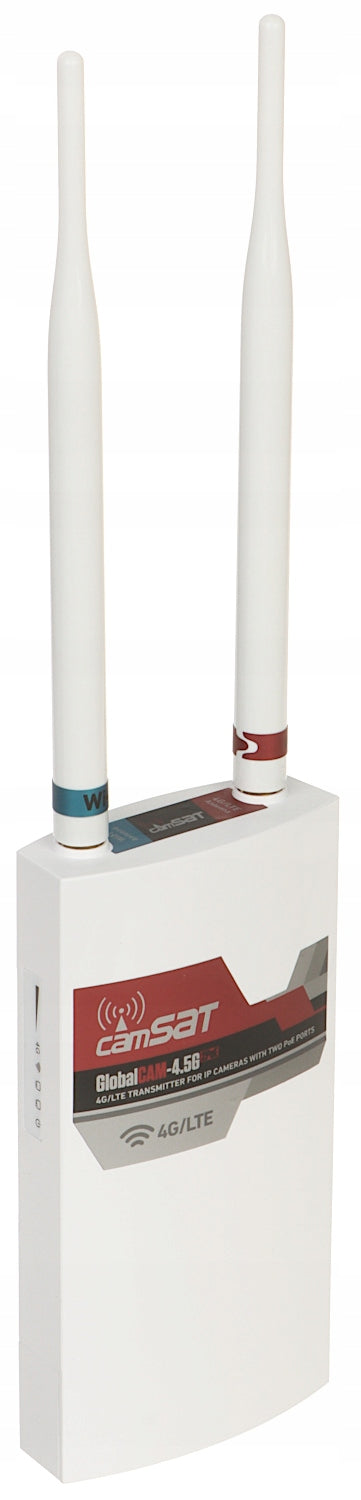

The device has two bar external omnidirectional antennas with hermetic connectors, one for LTE band and the other for WiFi (MIMO 2.4GHz)

It is equipped with 2 Ethernet ports with PoE, SIM card slot, DC power connectors: 5V (micro USB), 12V, 24V (passive PoE), 48V (passive PoE) and LEDs informing about signal power

High resistance to wind and weather conditions

The device meets the IP65 protection class

Frequency Range:

• Wi-Fi: 2.4 GHz,
• LTE : 2600 MHz, 2100 MHz, 1800 MHz, 900 MHz, 800 MHz

Antenna Type:

• 1 x WiFi 5 dBi MIMO - Omnidirectional antenna, RP-SMA connectors,
• 1 x 4G LTE - Omnidirectional Antenna, SMA Connectors

Standards:

• IEEE 802.11n,
• 4G LTE,
• 3G WCDMA,
• 3G UMTS/HSPA/HSDPA/HSUPA/HSPA+/ HSPA+DC,
• 2G EDGE/GPRS/GSM

Transmission speed:

• Wi-Fi: 150 Mbps,
• LTE Cat. 4 : 150 Mbps / 50 Mbps

LAN Ports: 2 x 10/100 Mbps - LAN & PoE Receiver Sensitivity:

• LTE (10M) : -102.5 dBm
• WCDMA B5 : -110.5 dBm
• EGSM900 : -109 dBm

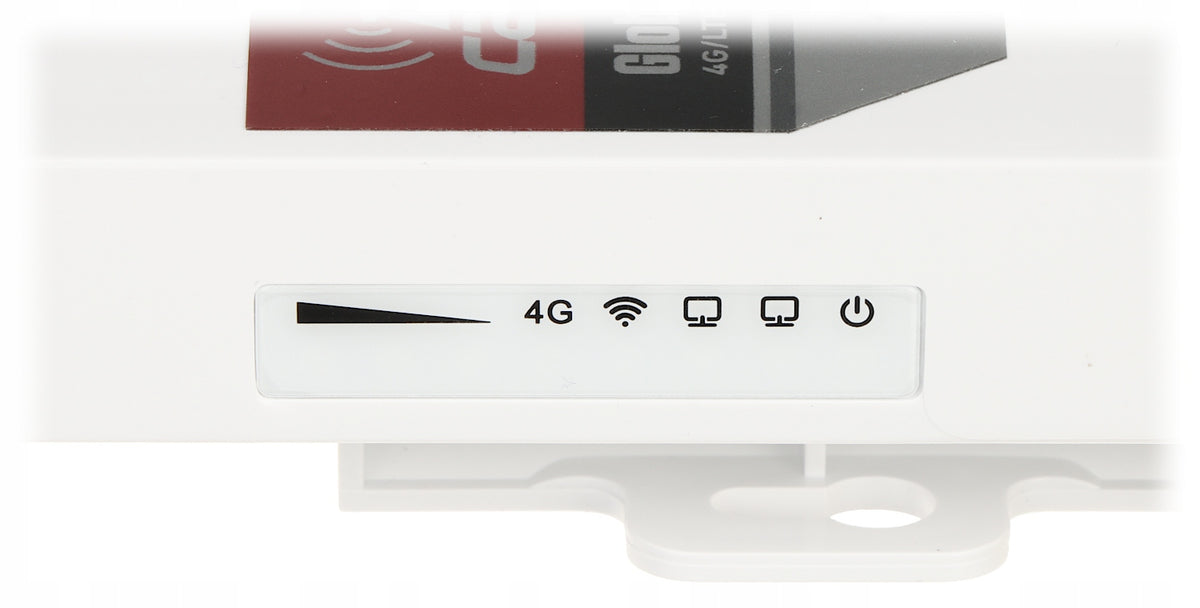

LED Indicators:

Power, LAN 1, LAN 2, WLAN, LTE, Signal Indicator

Type of network:

• 4G : FDD-LTE B1/B3/B7/B8/B20/B28A - 2100 / 1800 / 2600 / 900 / 800 / 700 MHz
• 4G : TDD-LTE B38/B40/B41 - 2600 / 2300 / 2500 MHz
• 3G : UMTS/HSPA/HSDPA/HSUPA/HSPA+/ HSPA+DC B1/B8 - 2100 / 900 MHz

LTE: Yes DHCP Server: Yes Security:

• WPA2-PSK
• Protection against DDOS, ICMP, SYN, UDP attacks
• Blocking TCP scans (Stealth FIN/Xmas/Null)
• Protection against Ping of Death attacks
• Firewall
• IP, MAC, URL, ARP filtering

Operating modes:

• Access Point

Selected features:

• Plug & Play
• Support for microSIM cards
• OFDM
• Wi-Fi : 50 m (in open area)
• SSID : 8 independent networks working simultaneously
• WAN : Static/Dynamic Routing, PPPoE
• Port Redirection: DMZ
• Filtration of Internet access
• Predefined settings for Hikvision, Dahua cameras

Power supply:

• 5 V DC - Micro USB port
• 12 V DC - Terminal block
• Passive PoE : 24 V / 0.5 A (power supply included)
• Passive PoE: 48 V

Operating temperature: -40 °C ... 80 °C Permissible relative ambient humidity: < 85 % Weight: 0.24 kg Dimensions:

• 168 x 85 x 43 mm
• 357 x 85 x 43 mm (with antennas)

Manufacturer / Brand:

CAMSAT

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Model	569554677
Parametry	Manufacturer	CAMSAT
Parametry	Kind	4G LTE
Parametry	EAN (GTIN)	5908066727020
Parametry	Manufacturer code	569554677
