Belaidis HDMI perdavėjas QuattroPod Mini 2T1R, Full HD, USB, AirPlay palaikymas

Trumpai apie prekę

Prekė: Belaidis HDMI perdavėjas QuattroPod Mini 2T1R, Full HD, USB, AirPlay palaikymas. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: EZCast
• Modelis: QuattroPod Mini

• Professional wireless presentation system BYOD with support for 1080p 60Hz resolution for HDMI and 4K 30Hz sources for Airplay, Miracast and Chromecast with Google Chrome.
• Available connectors: HDMI and USB-A.
• Upload to 30m.
• Support for Windows, MacOS, Linux, Android and iOS.
• Support for AirPlay
• WiFi 5Gh with, 802.11 AC and Gigabit LAN. Support HDMI and USB, Plug’n’Play,
• Cooperation with touch monitors and projectors, user management

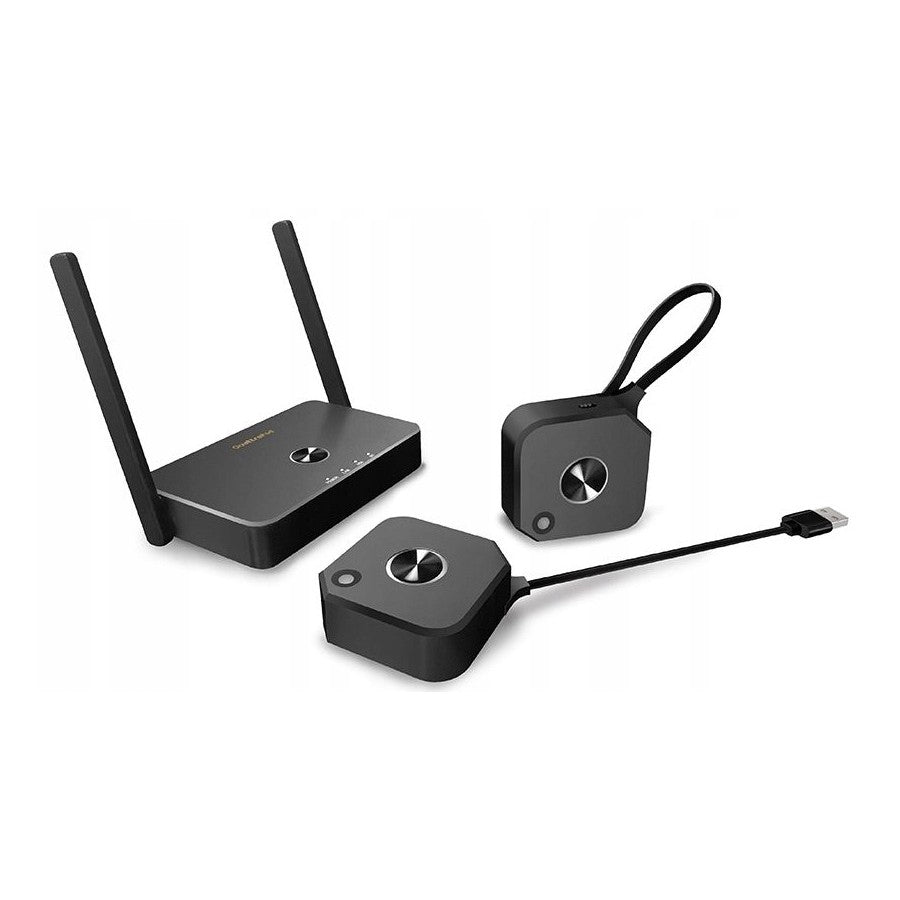

• Set includes: 2x transmitter (T02) and 1x receiver (R01),
• A very effective competitor of Barco Clickshare

The QuattroPod Mini wireless presentation system is an ideal solution for small and medium-sized conference rooms and a great alternative to popular Barco ClickShare solutions. It allows you to wirelessly transfer video and audio from any device with any operating system. It enables innovative sharing of content with anyone by clicking a button on a previously connected transmitter. The system works on Mac and PC or mobile devices. The ease of use of this conference BYOD solution means that every user can cope with the presentation of content, even if they have not had contact with this type of device before. QuattroPod Mini offers full support for Android and iOS devices and allows you to support up to 32 users (transmitters).

QuattroPod Mini is the most innovative BYOD solution system – Bring Your Own Device in conference rooms, streamlining collaboration with wireless screen sharing! Compared to other systems, e.g. Barco ClickShare or Benq Instashow, QuattroPod Mini gives you the ability to send not only static presentations as in the case of competitive solutions, but also video clips without loss of quality and delays in the audio stream.

QuattroPod fully works with Windows, macOS, iOS and Android devices, which means it is compatible with almost every notebook, tablet and smartphone of every manufacturer.

The offered wireless transmitter supports resolutions up to Full HD 60Hz and can work with state-of-the-art devices, allowing you to transfer video and audio in perfect quality. When transferring content from mobile devices via AirPlay or from Google Chrome (Chromecast function), the device will support up to 4K 30Hz.

QuattroPod Mini allows you to display signals from up to 4 transmitters at the same time and is "Plug & Play*", i.e., does not require any additional software.

Main features of QuattroPod:

• No need to install software/applications on devices
• Simple and intuitive operation
• Support for any operating system (Windows, MacOS, Linux) and mobile Android and iOS
• Supports resolutions up to Full HD 30Hz when transmitted via HDMI transmitter and 3840 x 2160 30Hz when using AirPlay/Chromecast for mobile devices and Google Chrome devices
• Each transmitter has HDMI and USB inputs (for wired connection of mobile devices)
• The system has its own Wi-Fi network – without the need to connect to the local Ethernet network, but there is also such a possibility
• Display up to 4 screens simultaneously – Multiview
• Support up to 32 users
• For AirPlay and Google Chrome (Chromecast) 4K 30Hz support
• Intuitive operation and configuration

PLUG AND PLAY

The device does not require installing programs/drivers and the like on your computer/phone. The transmitter's HDMI and USB inputs allow you to connect any device, from devices like a notebook, tablet, or smartphone, regardless of the manufacturer or operating system you're using.

4K resolution

QuattroPod receivers can display resolutions up to 4K 2160p at 30Hz as well as lower. They are fully compatible with existing 4K screens, monitors and projectors. The distance between the transmitter and receiver modules can be up to 30 meters.

Mobile devices

QuattroPod supports AirPlay natively. Transferring from Android devices with Miracast is very easy thanks to the publicly available, free application from Google Play.

Convenient wireless presentation

Connect, click, and stream wirelessly from your favorite devices. It does not require an application for PC or iOS, unlike even Very ClickShare.

Multi-platform presentation system

The user, regardless of the source device, can share presentations on a larger screen in seconds.

Host Management

Control your presentations with the host management system – you decide whether you will allow the next source to be displayed. The administrator who manages the presentation easily switches between hosts, animating the meeting.

Touch Back control

As a result of this cooperation, the connected input device can be easily operated using the touch function of the display (up to 10-point multitouch) by the presenter.

4-to-1 real-time split screen – Multiview

Display up to 4 sources simultaneously with MultiView.

Technical data

TX Transmitter (T02):

CPU: 1Ghz RISC CPU

Memory: DDR3 256MB, NAND Flash 256MB

Output Resolution:

• 1920×1080 60Hz
• 1920x1080i 60Hz
• 1280×720 60hz
• 1280×720 50hz
• 1920×1080 30Hz
• 1920×1080 50Hz
• 1920x1080i 50Hz

I/O:

• HDMI 1.4 IN x1
• USB 2.0 type A female x1
• USB 2.0 type A male x1

WiFi: 802.11ac 2T2R, max. bandwidth 433Mbps (5Ghz)

WiFi Frequency: 5Ghz (5.150Ghz~5.825Ghz)

Power supply: 5V, 0,9A

HDCP: 1.4

Ethernet: 10/100/1000M, POE support

LEDs:

• Power,
• Ethernet connection,
• WiFi status,
• USB

Buttons:

• reset,
• Evaporation

Power Consumption:

• standby: approx. 5W
• during work approx. 10W

Operating temperature: 0-40 degrees C

Storage temperature: -20-70 degrees C

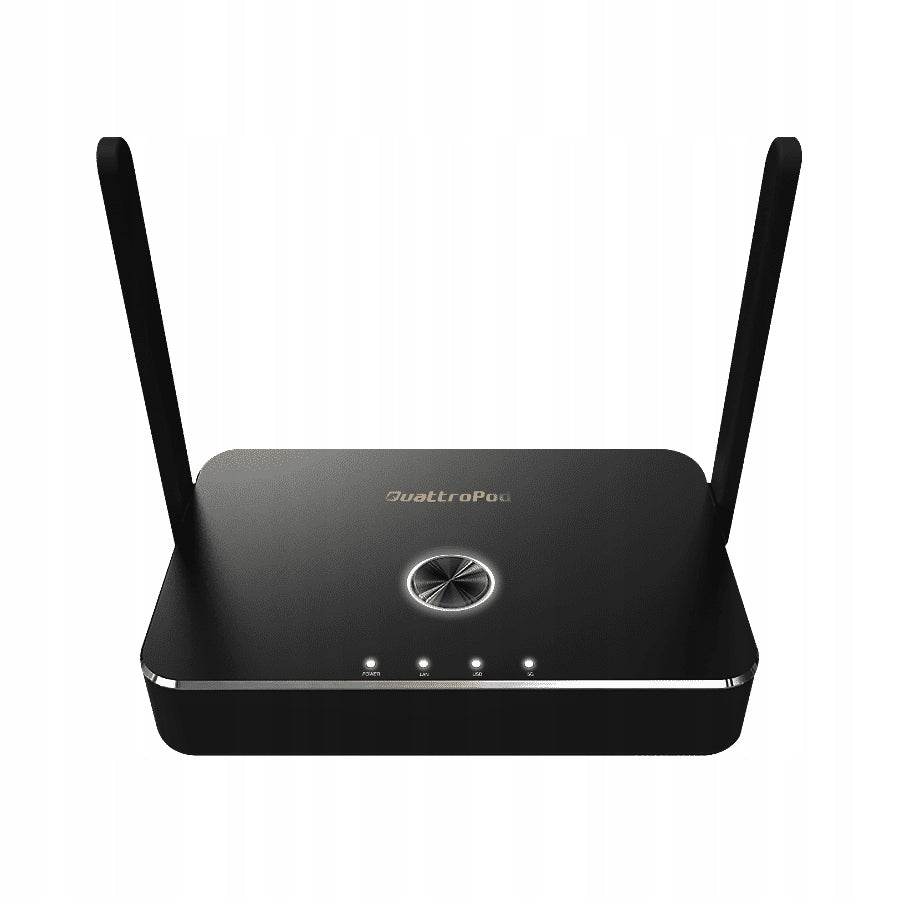

RX receiver (R01):

CPU: 1Ghz RISC CPU

Memory: DDR3 1GB, NAND Flash 256MB

Output Resolution:

• 4096×2160 24hz
• 3840×2160 30hz
• 3840×2160 25hz
• 3840×2160 24hz
• 1920×1080 60Hz
• 1280×720 60hz
• 1920×1080 50Hz
• 1920×1080 24Hz
• 1280×720 50hz

I/O:

• HDMI 1.4 out x1
• USB 2.0 type A female x1 (for pairing and touchback)
• DC 5V
• Ethernet RJ45

WiFi: 802.11ac 2T2R, max. bandwidth 866Mbps (5Ghz)

WiFi Frequency: 5Ghz (5.150Ghz~5.825Ghz)

Power Supply: 5V, 2A

HDCP: 1.4

Ethernet: 10/100/1000M, POE support

LEDs:

• Power,
• Ethernet connection,
• Connection

Switch: Source Selection – PC/mobile

Power Consumption:

• standby: approx. 2W
• during work approx. 4W

Operating temperature: 0-40 degrees C

Storage temperature: -20-70 degrees C

The set includes

• 2x QuattroPod Mini Transmitter (T02)
• 1x QuattroPod receiver (R01)
• 2x short, flat HDMI cable 15 cm (for transmitter)
• 2x short, flat HDMI cable 40 cm
• 1x long HDMI cable 1m (from receiver)
• 1x 5V USB power cable
• 1x power supply
• 1x User Manual (English) )

How does QuattroPod Mini work?

How exactly does QuattroPod Mini work?

The set consists of a transmitter and a receiver.

Connect the receiver to the screen or projector using HDMI.

Then we can upload the content using one of the following methods:

• Simple screen mirroring so-called. screen mirroring

Take advantage of the screen-mirroring function implemented in the device. This includes native support for Airplay for iOS/macOS and Chromecast using the Google Chrome web browser. We can also share the screen of Android devices with the help of the free QuattroPod application available from Google Play. In all cases, you do not need a QuattroPod Mini transmitter.

• via transmitter

Connect the transmitter to a Windows laptop, MacBook or other source via HDMI. It is powered by a micro USB-USB cable (included). Within seconds, you will see the source image on the screen connected to the receiver.
